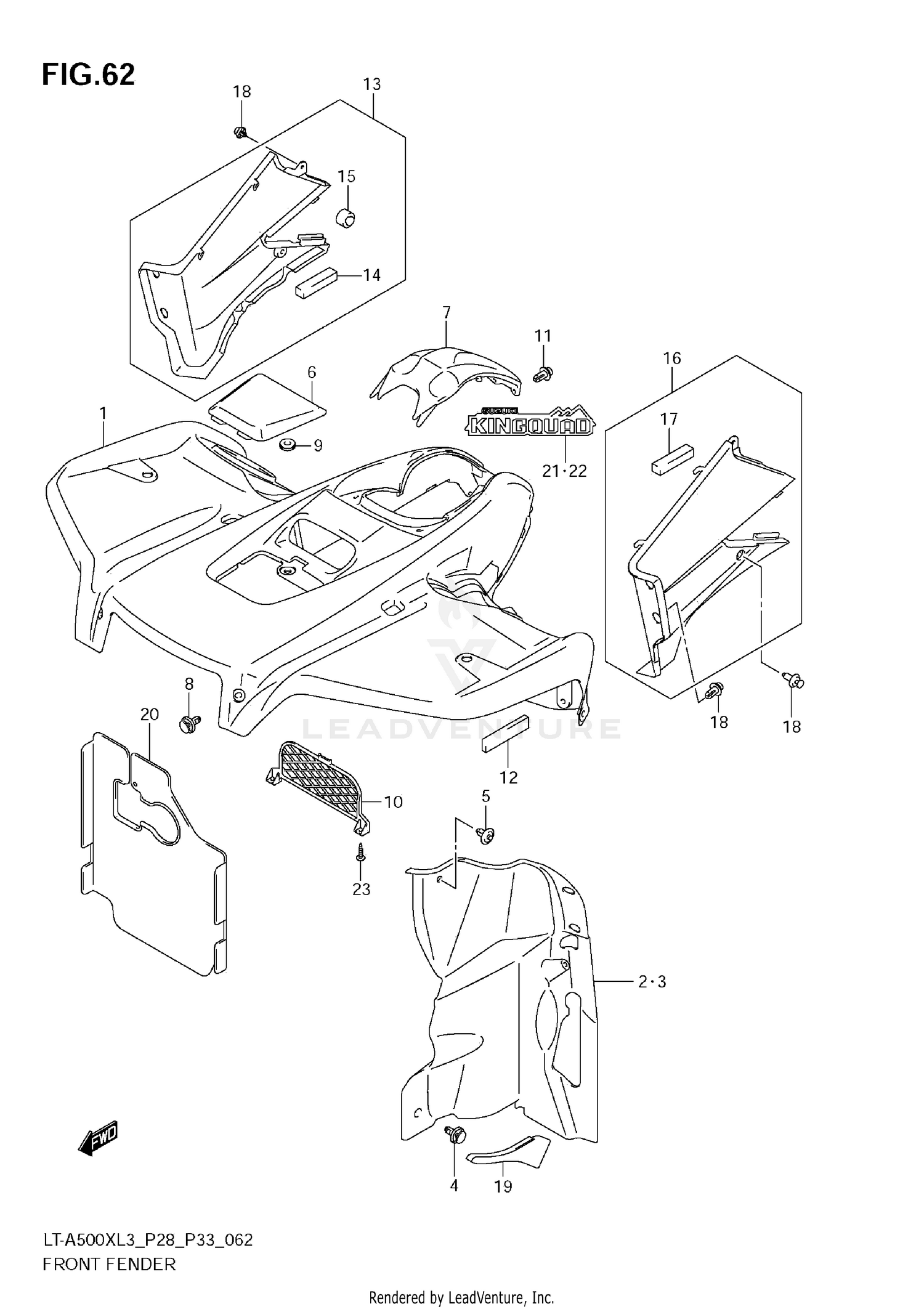

Front Fender (lt-a500xl3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT (GREEN)
53111-31G03-YLG
|
$287.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (BLACK)
53111-31G03-YLZ
|
$280.98 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER,FRT(BLUE
53111-31G03-YPW
Superseded by 53111-31G13-YPW
|
$404.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (RED)
53111-31G03-YT9
Superseded by 53111-31G13-YT9
|
$372.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT (YELLOW)
53111-31G03-YU1
|
$156.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUDFLAP, INNER RH
53411-31G02
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUD FLAP,FENDER
53421-31G01
Superseded by 53421-31G03
|
$25.92 | ||
|
Unavailable |
|||
|
#4
CLIP
09409-08335
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP (D:2.4,ID:23.7)
09409-07333
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID,FENDER FRONT (GREEN)
53341-31G01-YLG
Superseded by 53341-31G06-YLG
|
$11.20 | ||
|
Unavailable |
|||
|
#6
LID,FENDER FRON
53341-31G01-YLZ
Superseded by 53341-31G05-YLZ
|
$47.77 | ||
|
Unavailable |
|||
|
#6
LID,FRONT FENDE
53341-31G01-YPW
Superseded by 53341-31G04-YPW
|
$18.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
LID,FENDER FRONT (RED)
53341-31G01-YT9
Superseded by 53341-31G06-YT9
|
$11.55 | ||
|
Unavailable |
|||
|
#6
LID,FRONT FENDE
53341-31G01-YU1
Superseded by 53341-31G04-YU1
|
$28.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER,CENTER
53119-31G02-YLG
Superseded by 53119-31G04-YLG
|
$23.72 | ||
|
Unavailable |
|||
|
#7
FENDER,CENTER
53119-31G02-YLZ
Superseded by 53119-31G05-YLZ
|
$22.28 | ||
|
Unavailable |
|||
|
#7
FENDER, CENTER (BLUE)
53119-31G02-YPW
|
$39.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER,CENTER
53119-31G02-YT9
Superseded by 53119-31G05-YT9
|
$24.22 | ||
|
Unavailable |
|||
|
#7
FENDER,CENTER
53119-31G02-YU1
Superseded by 53119-31G03-YU1
|
$24.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#9
CUSHION
09320-08018
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,INNER
53212-31G01
Superseded by 53212-31G03
|
$14.38 | ||
|
Unavailable |
|||
|
#11
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#12
CUSHION, FENDER SIDE
53145-07G01
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,SIDE,R
53110-31G10-291
Superseded by 53112-31G04
|
$46.63 | ||
|
Unavailable |
|||
|
#14
.CUSHION, FR FENDER SIDE
53146-05G00
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09321-10019
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,SIDE L
53110-31G20-291
Superseded by 53122-31G03
|
$107.12 | ||
|
Unavailable |
|||
|
#17
.CUSHION, FR FENDER SIDE
53146-05G00
|
$6.87 | ||
|
Unavailable |
|||
|
#18
CLIP
09409-08335
|
$2.43 | ||
|
Unavailable |
|||
|
#19
MUDGUARD, SIDE RH
53116-31G00
Superseded by 53116-31G01
|
$14.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CENTER
53117-31G00
Superseded by 53117-31G01
|
$28.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM,FR FENDE
68151-31GC0-EFG
Superseded by 68151-31GC1-EFG
|
$45.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
EMBLEM,LH
68152-31GC0-EFG
Superseded by 68152-31GC1-EFG
|
$45.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
03541-0516A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
