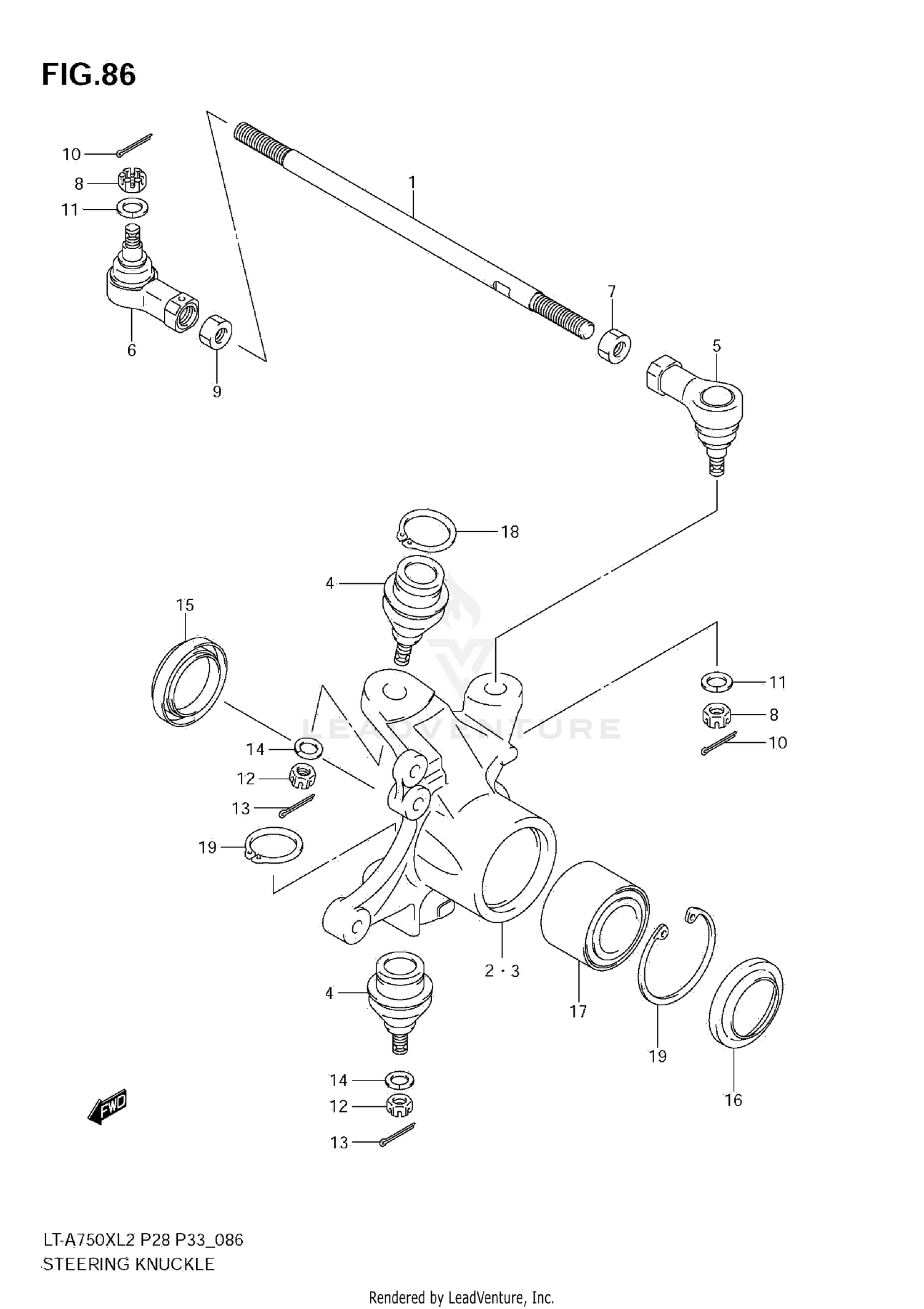

Steering Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIE ROD, STEERING
51281-31G01
|
$54.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
KNUCKLE, STEERING RH
51231-31G00
|
$364.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
KNUCKLE, STEERING LH
51241-31G00
|
$351.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
END, KNUCKLE STEERING
51210-31G10
|
$77.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, END, RH
51260-31G10
|
$63.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, END, LH
51270-31G10
|
$63.92 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
09140-12030
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08314-4010B
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09140-12035
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
04111-2020A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (10.5X19X2)
09160-10082
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08314-4010B
|
$2.92 | ||
|
Unavailable |
|||
|
#13
PIN
04111-2020A
|
$1.43 | ||
|
Unavailable |
|||
|
#14
WASHER (10.5X19X2)
09160-10082
|
$1.89 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (38X55X8)
09283-38012
|
$17.34 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (38X55X6)
09285-38002
|
$15.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
51259-31G00
Superseded by 51259-31G10
|
$116.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
08331-3130A
Superseded by 08331-31309
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
08331-4155A
Superseded by 08331-41559
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
