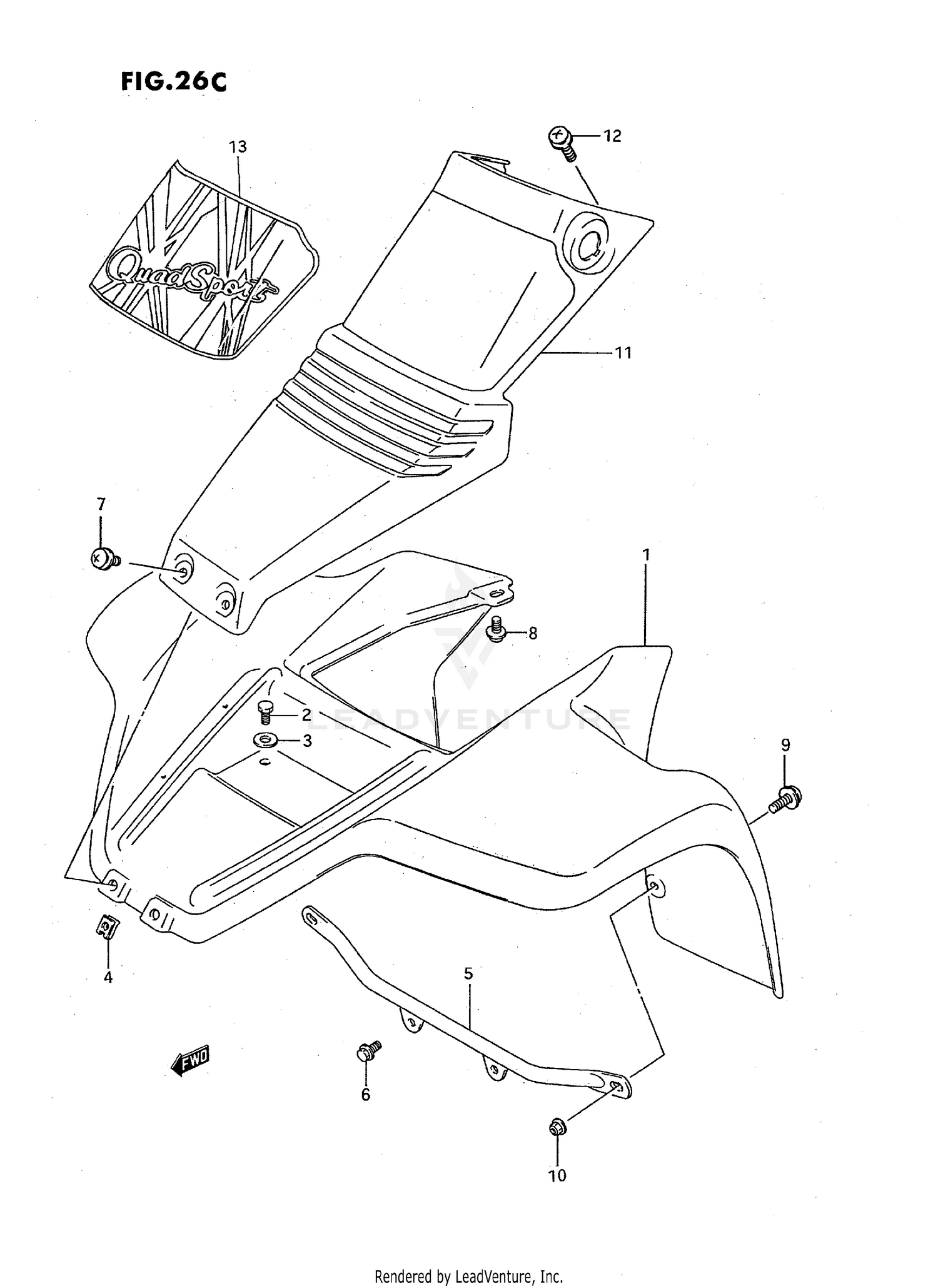

Front Fender (model S) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER FRONT
53111-40B00-14L
Superseded by 53111-40B01-14L
|
$267.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, DRAIN
01500-08163
Superseded by 01500-0816B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (8.5X22X2)
09160-08007
Superseded by 09160-08127
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FENDER FRONT
53141-19A00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACE, FRONT FENDER (BLACK)
53210-40B00-019
|
$25.46 | ||
|
Unavailable |
|||
|
#6
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
09136-06062
Superseded by 09136-06017
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, FRONT FENDER REAR
09136-06004
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FENDER & BRACE
09136-06022
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NUT
08319-31063
Superseded by 08319-3106A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FENDER CENTER (YELLOW)
53118-40B00-25Y
|
$67.87 | ||
|
Unavailable |
|||
|
#12
SCREW, CENTER COVER
09136-06004
|
$2.08 | ||
|
Unavailable |
|||
|
#13
TAPE, FRONT FENDER
68155-40B60-D0L
|
$55.60 | ||
|
Available to order. Add to View Price |
|||
