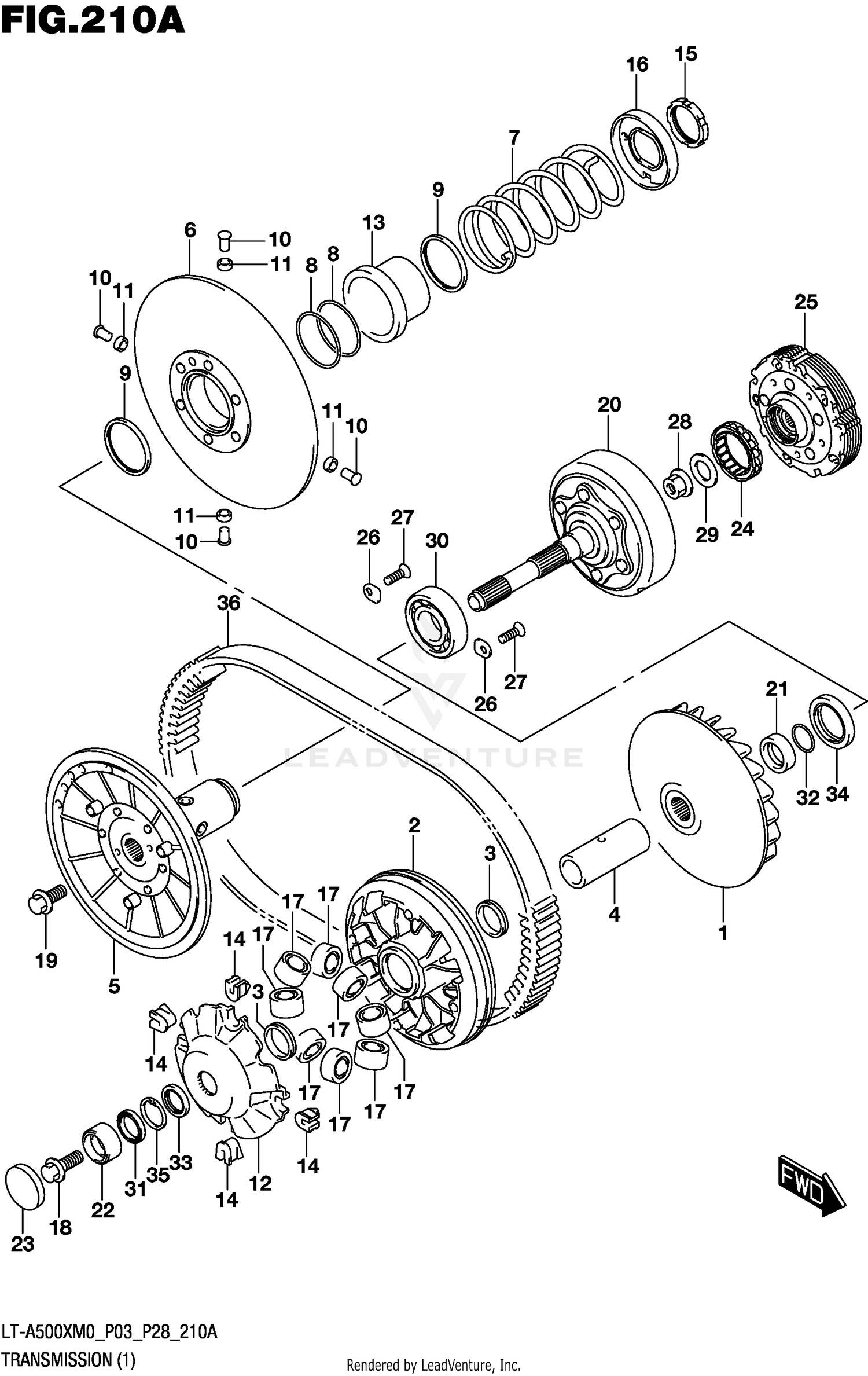

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE, FIXED DRIVE
21110-11H00
|
$178.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
FACE, MOVABLE DRIVE
21120-11H00
|
$184.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL, MOVABLE DRIVE FACE
21124-15F00
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, MOVABLE DRIVE
21125-11H50
|
$66.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
FACE, FIXED DRIVEN
21210-11H00
|
$397.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
FACE, MOVABLE DRIVEN
21240-11H10
|
$380.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, MOVABLE DRIVEN
21243-38F10
|
$56.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING, MOVABLE DRIVEN
21245-38F00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL, MOVABLE DRIVEN
21247-38F00
|
$11.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, MOVABLE DRIVEN
21248-15F01
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, MOVABLE DRIVEN PIN
21249-15F00
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, MOVABLE DRIVE
21431-11H00
|
$57.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHEET, MOVABLE DRIVEN
21471-38F10
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, MOVABLE DRIVE PLATE
21481-14F00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, DRIVEN PULLEY SPRING
21518-38F00
|
$30.82 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, MOVABLE DRIVEN SPRING
21519-38F10
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROLLER, MOVABLE DR
21650-09F51
|
$18.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (12X30)
09103-12028
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (12X25)
09103-12049
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOUSING, CLUTCH
21100-11H00
|
$308.07 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, PRIMARY SHAFT
21102-31G00
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, CLUTCH HOUSING BRG FR
21106-31G10
|
$31.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, V-BELT BEARING HOUSING
21107-31G00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLUTCH, PRI DRIVE ONE WAY
21273-44D00
|
$153.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH ASSY, SHOE
21500-11H10
|
$385.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
RETAINER, COUNTER BEARING RH
24741-20A00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW (6X12)
09126-06011
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
09159-18027
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
09164-18004
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING (25X62X17)
09262-25073
|
$27.72 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING (35X47X7)
09262-35075
|
$69.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
O RING (D:2.4,ID:24.7)
09280-25004
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (35X47X5)
09283-35051
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (38X56X7)
09283-38025
|
$34.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
08331-41479
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#36
V-BELT, DRIVE
27601-11H00
|
$271.78 | ||
|
Available to order. Add to View Price |
|||
