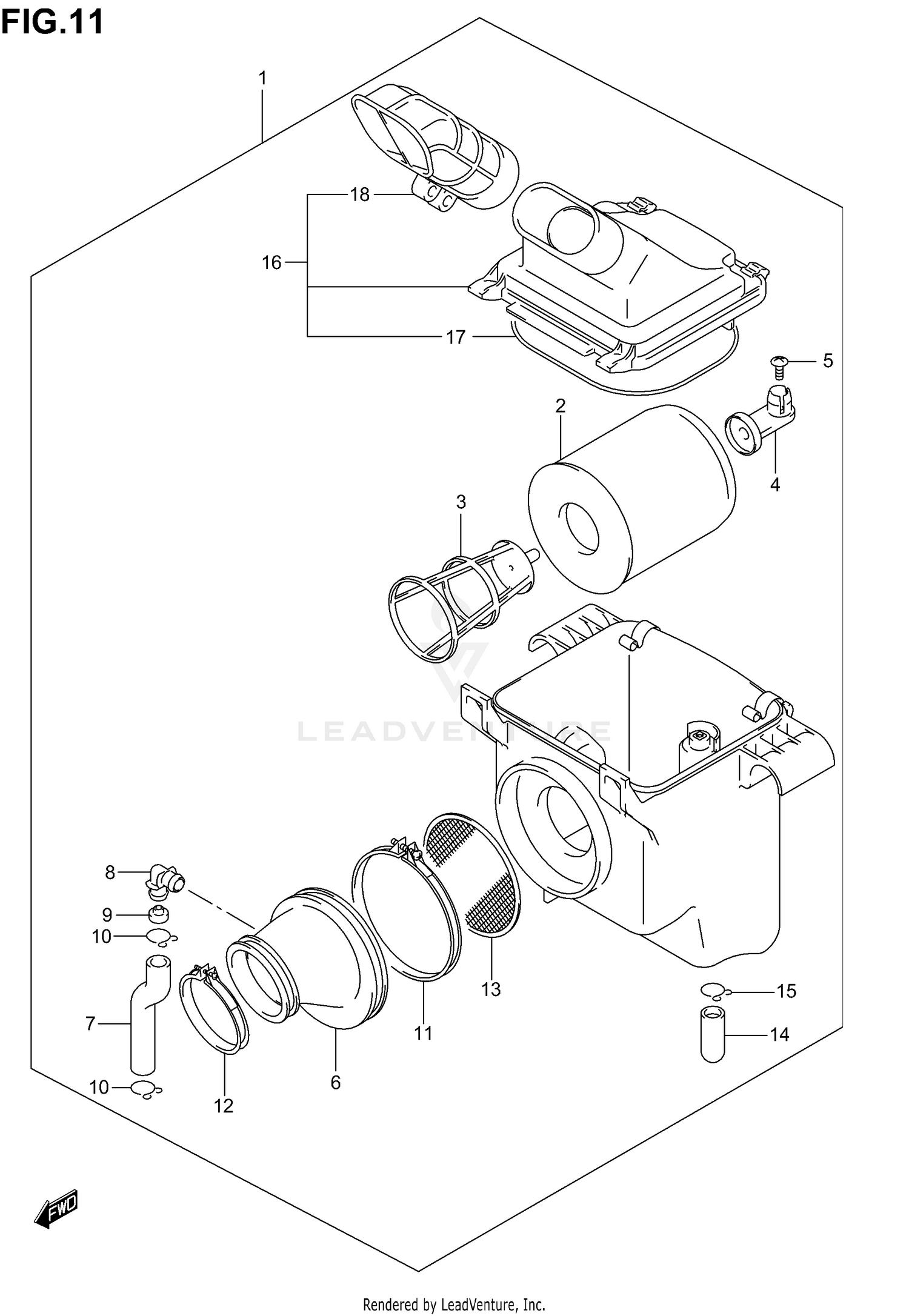

2003 Suzuki OZARK 250 AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-05G00
|
$350.52 | ||
|
Available to order. Add to View Price |
|||
|
#1
CLEANER ASSY, AIR
13700-05G10
Superseded by 13700-05G00
|
$350.52 | ||
|
Unavailable |
|||
|
#2
FILTER ASSY
13780-05G00
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER ASSY
13780-05G10
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, FILTER
13791-05G00
Superseded by 13791-05G01
|
$14.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, FILTER
13791-05G01
|
$14.68 | ||
|
Unavailable |
|||
|
#4
STOPPER, HOLDER
13792-05G00
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02142-06163
Superseded by 02142-0616A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE,OUTLET
13881-05G00
Superseded by 13881-05G01
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE,BREATHER
13853-05G00
Superseded by 13853-05G01
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT
13858-14D20
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET,BREATHER
13859-05G00
Superseded by 13859-05G01
|
$5.28 | ||
|
Unavailable |
|||
|
#10
CLIP
09401-14301
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (CLEANER SIDE)
09402-98208
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLAMP
09402-58208
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
TRAP, FLAME
13810-05G00
|
$11.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLUG, DRAIN
13878-09F00
Superseded by 13878-09F01
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
09401-14301
|
$2.15 | ||
|
Unavailable |
|||
|
#16
CAP COMP,AIR CL
13740-05G00
Superseded by 13740-05G01
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
13746-05G00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE,INLET
13891-05G00
Superseded by 13891-05G01
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
