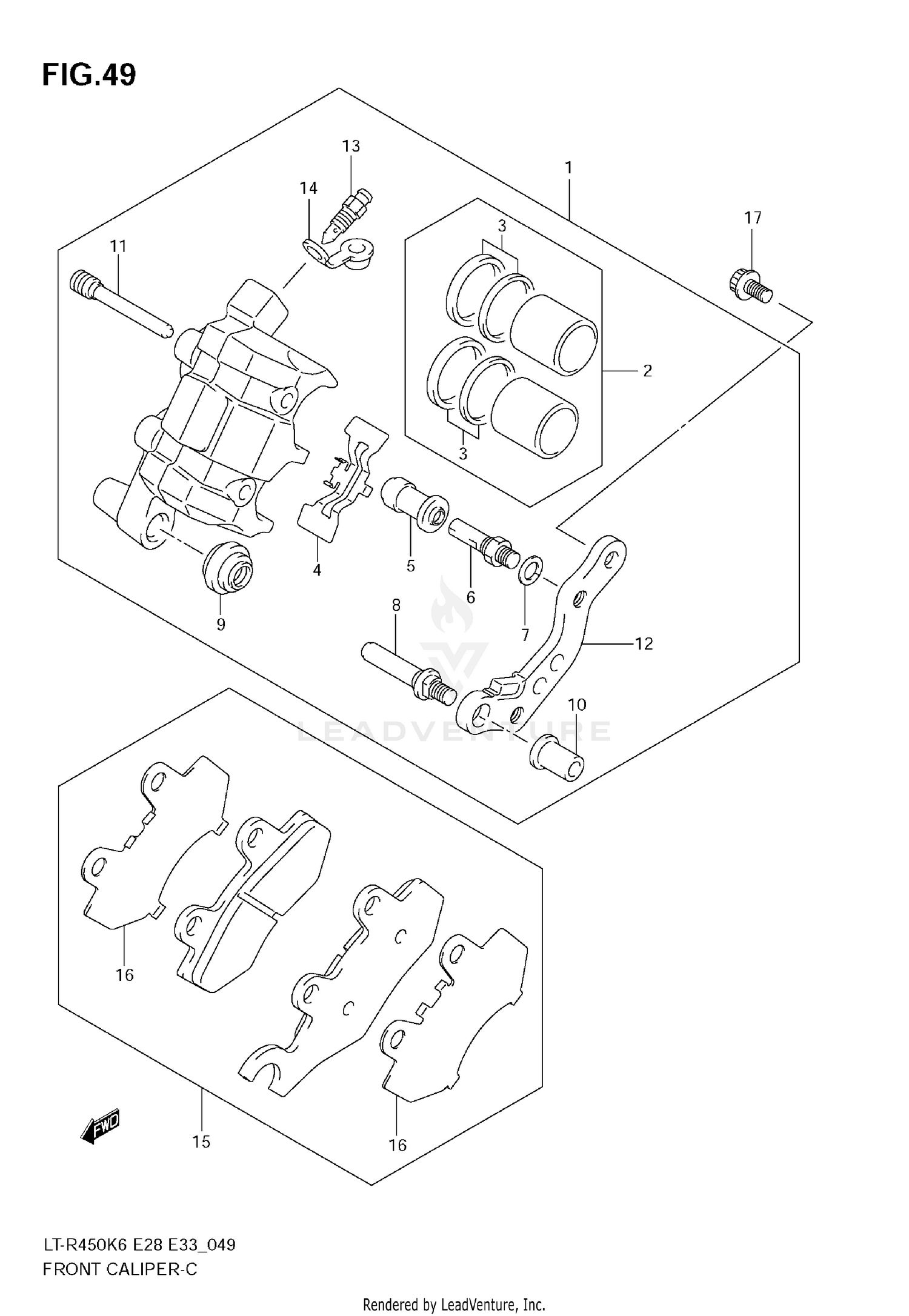

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-09F20-999
|
$392.28 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY, FRONT LH
59300-09F20-999
|
$392.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59100-39830
|
$58.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-21860
|
$22.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PAD
59315-00B20
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
59386-13A00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
59382-13A00
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
59314-13A00
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
59387-00B20
|
$20.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
59303-14500
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
59388-00B20
|
$16.83 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
59345-00B20
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, RH
59351-00B20
|
$75.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, LH
59151-47E00
|
$71.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BLEEDER
59121-01A00
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP
59122-01A00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD & SHIM SET, RH
59100-09860
|
$79.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD & SHIM SET, LH
59100-09870
|
$79.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM
69132-31D00
|
$12.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,8X16 (8X16)
09106-08174
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
