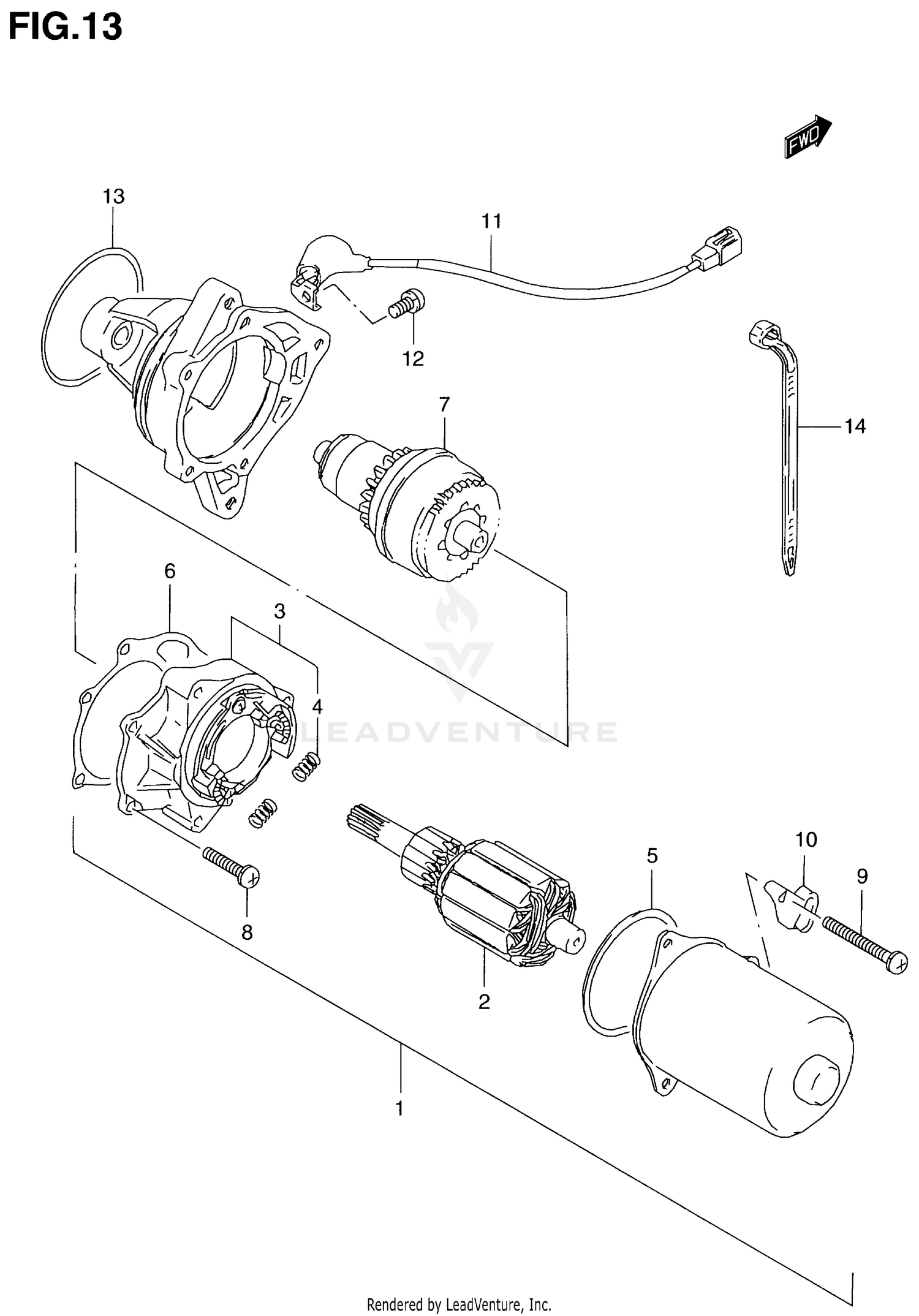

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-40B01
|
$371.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARMATURE
31311-40B01
|
$199.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER SET, BRUSH
31130-40B01
|
$94.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
31135-03A00
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET
31157-03A00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
31158-40B01
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR ASSY, PINION
31370-40B00
|
$174.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-04123
Superseded by 02112-0412A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-34303
Superseded by 02112-3430B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, LEAD WIRE
31154-11B00
|
$6.63 | ||
|
Unavailable |
|||
|
#11
LEAD WIRE
31142-40B00
|
$27.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-34063
Superseded by 02112-3406A
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING
31156-02100
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, LEAD WIRE (L:125)
09407-14403
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
