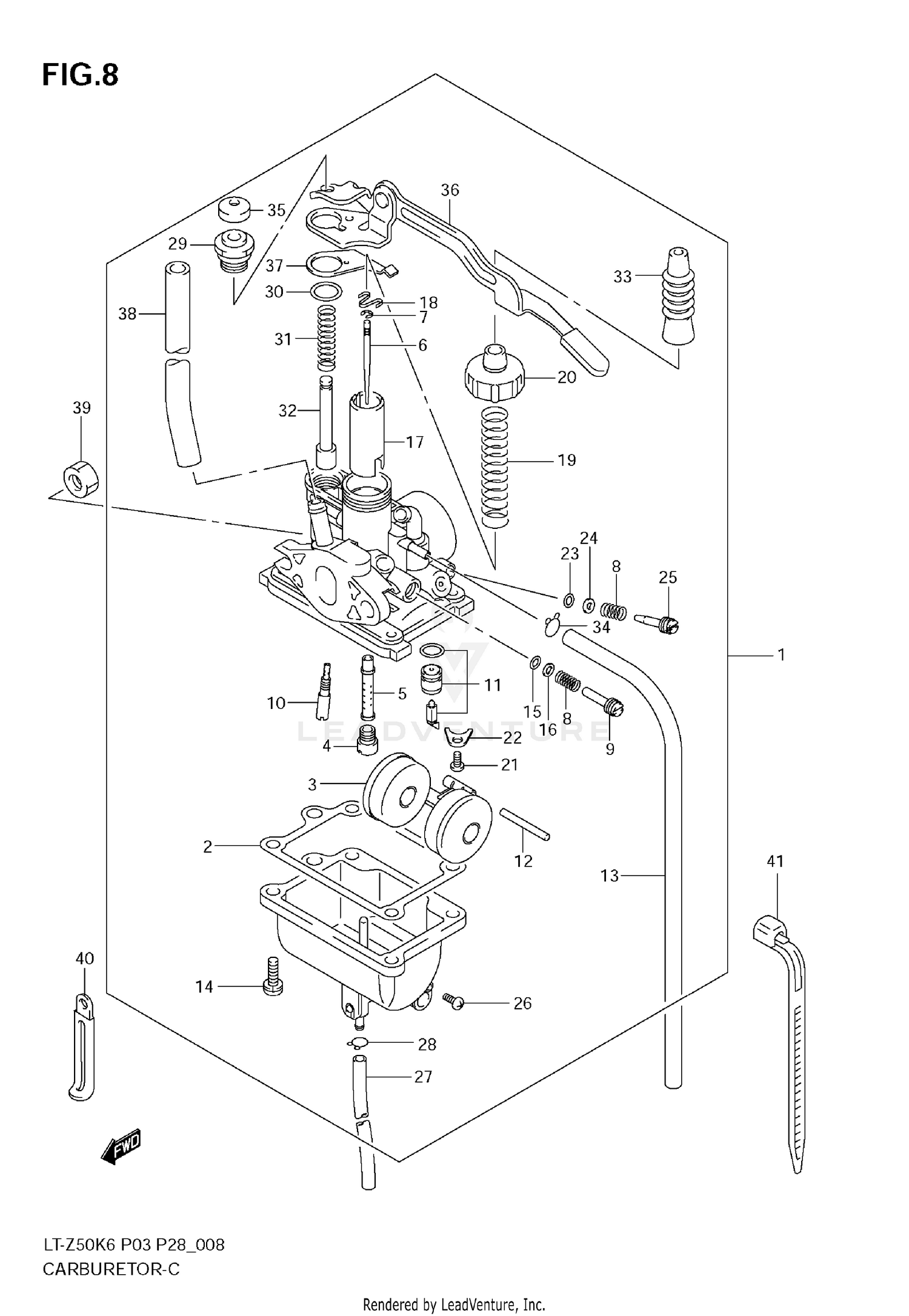

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-43G00
Superseded by 13200-43G01
|
$272.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
13251-02410
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT
13250-02500
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN
13347-43G00
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, NEEDLE
13349-43G00
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE, JET
13383-43G00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, NEEDLE
13394-40D00
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
13268-35010
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, THROTTLE STOP
13483-16A01
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, PILOT, 12.5
09492-12003
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE ASSY, NEEDLE
13370-36GA1
|
$54.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
13254-20010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE,5X10X600
09355-50105-600
Superseded by 44421-13ER0
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
13601-04148
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
13291-35010
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
.O-RING
13295-33010
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#17
PISTON VALVE
13501-43G00
|
$58.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAT, THROTTLE VALVE SP
13581-04010
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, THROTTLE VALVE
13573-02330
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP
13261-28B00
|
$22.71 | ||
|
Unavailable |
|||
|
#21
PLATE, NEEDLE VALVE FIT
13373-46710
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
02112-0306B
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
13295-29900
Superseded by 13295-29901
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
13291-29900
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
ADJUSTER
13269-43G00
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, DRAIN
13247-09G10
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
.HOSE (3X7X600)
09355-30705-600
Superseded by 09355-30001-600
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
.CLIP
13529-98010
Superseded by 13529-98011
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE HOLDER
13418-43G00
|
$17.87 | ||
|
Unavailable |
|||
|
#30
O RING
13278-02330
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING
13417-43G00
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER ASSY
13411-28700
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP
13681-36GA0
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#34
.CLIP
09401-08410
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP
13416-46710
|
$2.67 | ||
|
Unavailable |
|||
|
#36
LEVER ASSY
13420-43G00
|
$36.78 | ||
|
Unavailable |
|||
|
#37
SPRING PLATE
13426-43G00
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
.HOSE
13683-24A40
Superseded by 13683-24A41
|
$8.68 | ||
|
Unavailable |
|||
|
#39
NUT, CARBURETOR
09140-06023
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP, CARB OVERFLOW HOSE
09404-06429
|
$1.93 | ||
|
Unavailable |
|||
|
#41
CLAMP, AIR VENT HOSE
09407-14403
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
