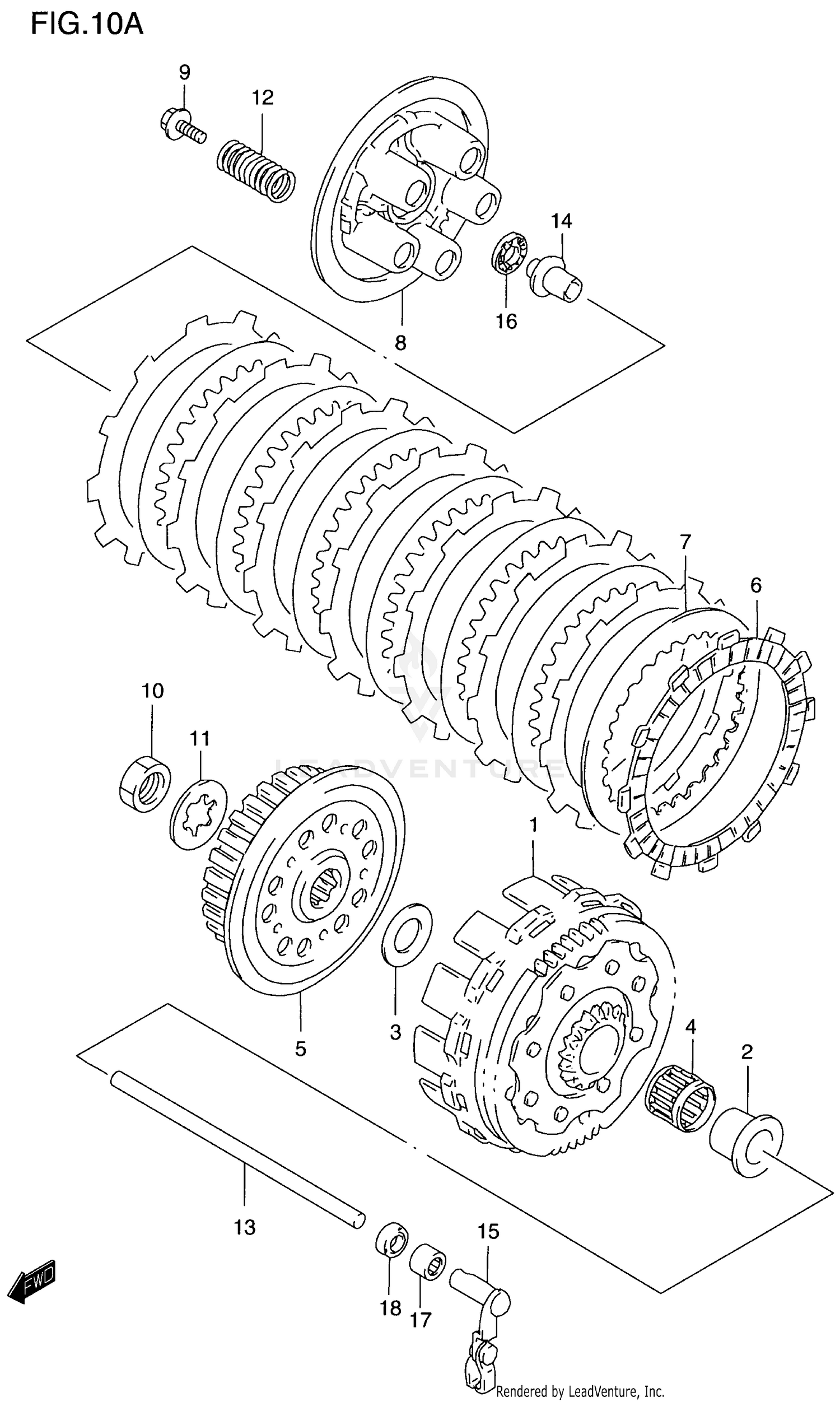

2000 Suzuki RM 125 CLUTCH (MODEL W/X/Y) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-43D02
Superseded by 21200-43D04
|
$297.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-43D04
|
$297.17 | ||
|
Unavailable |
|||
|
#2
SPACER
21251-43D00
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
08211-20363
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (25X30X22)
09263-25046
|
$27.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21411-43D03
Superseded by 21411-43D04
|
$98.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, CLUTCH SLEEVE
21411-43D04
|
$98.30 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH DRIVE NO.1
21441-36E00
Superseded by 21441-10H00
|
$30.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH DRIVE NO.1
21441-36E10
Superseded by 21441-10H00
|
$30.63 | ||
|
Unavailable |
|||
|
#7
PLATE, DRIVEN (T:1.4)
21451-36E00
Superseded by 21451-43D00
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISC, CLUTCH PRESSURE
21462-43D01
|
$45.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (5X18)
09116-05019
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09140-20001
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK WASHER
09167-20006
Superseded by 09167-20009
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH
09440-18026
Superseded by 09440-18030
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-18030
|
$6.97 | ||
|
Unavailable |
|||
|
#13
ROD, CLUTCH PUSH
23111-36E10
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIECE, CLUTCH PUSH
23121-37E01
Superseded by 23121-37F00
|
$22.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAMSHAFT, CLUTCH RELEASE
23200-36E10
Superseded by 23200-36E11
|
$56.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (10.1X22X2.8)
09263-10002
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING (10X14X15)
09263-10007
|
$19.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL,OIL (10X17X5)
09285-10004
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
