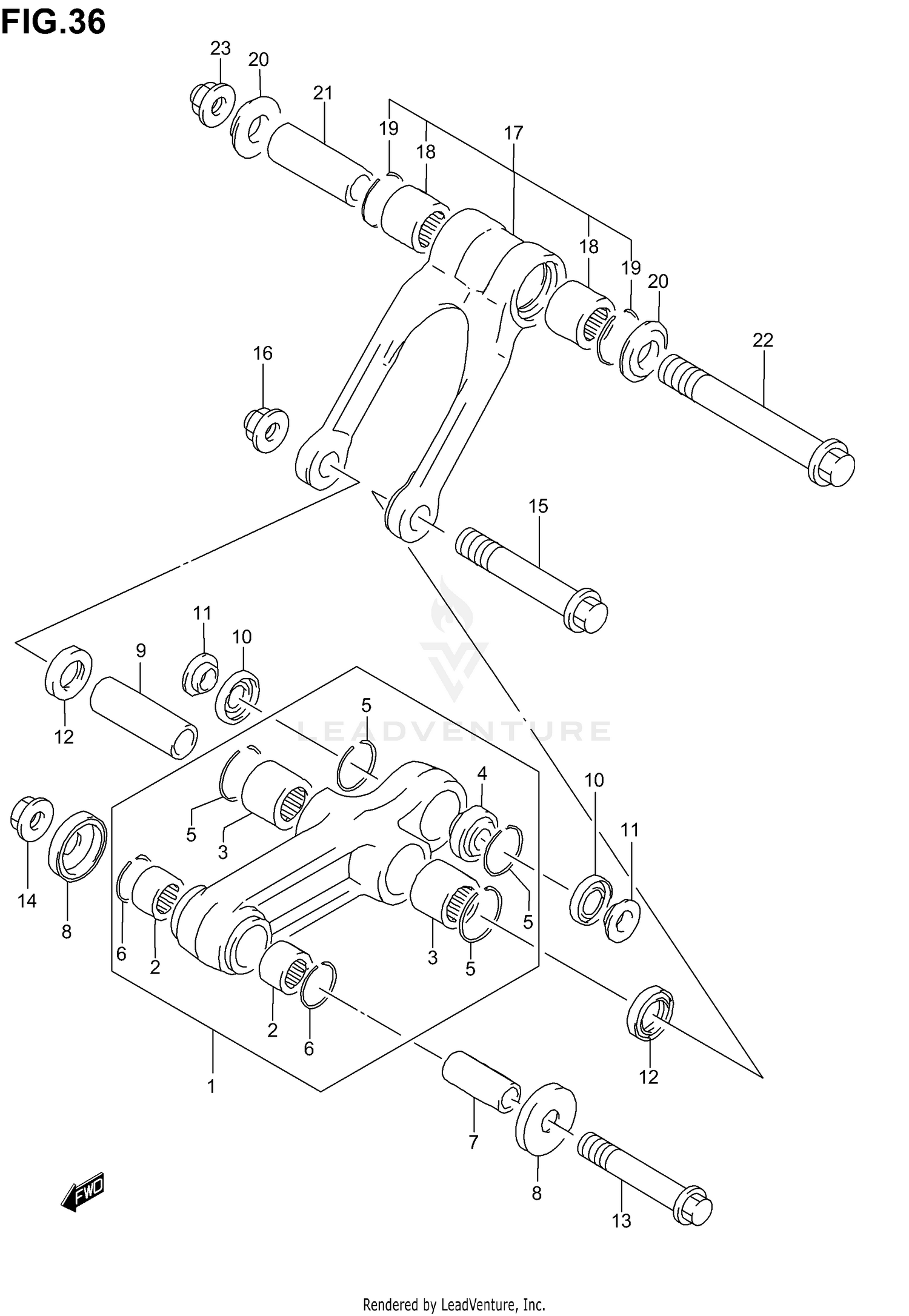

Rear Cushion Lever (model K2/k3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-02840
|
$302.85 | ||
|
Unavailable |
|||
|
#2
BEARING, FRONT (14X20X12)
09263-14027
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, REAR (10X24X14.5)
62175-00B00
|
$67.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
62657-34A01
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER FRONT
09381-20004
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER,RR CUSH LVR,FR (10X14X
62317-02B40
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL,OIL
62162-03B00
Superseded by 62162-03B01
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, CENTER (12X17X54)
62626-02B40
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL, REAR
62226-28C00
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, REAR (10X20X5.75)
62684-28C10
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SEAL,OIL (17X24X3)
09285-17001
Superseded by 09285-17007
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FRONT (10X64)
62658-02B40
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, CENTER (12X87)
62621-02B40
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-31128
Superseded by 08319-3112A
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD SET, CUSHION LEVER
62600-03850
|
$256.46 | ||
|
Unavailable |
|||
|
#18
.BEARING
09263-17039
Superseded by 09263-17058
|
$17.35 | ||
|
Unavailable |
|||
|
#19
RING, STOPPER
62657-34A01
|
$2.10 | ||
|
Unavailable |
|||
|
#20
SPACER, ROD (12X31X4)
62647-02B40
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, ROD (12X17X50)
62646-02B40
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (12X115)
62622-02B40
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
08319-31128
Superseded by 08319-3112A
|
$4.02 | ||
|
Unavailable |
|||
