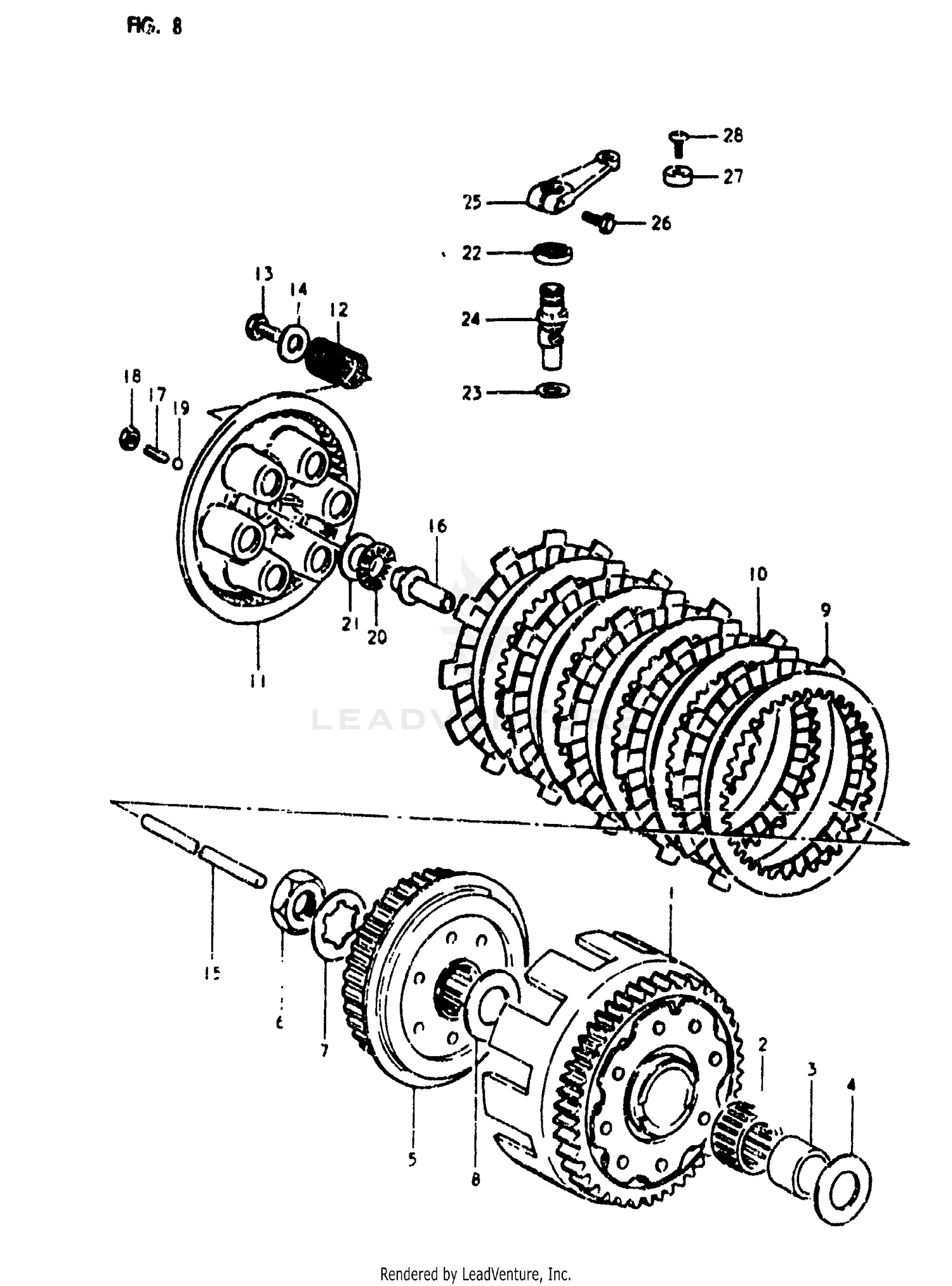

1980 Suzuki RM400 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN (NT:62)
21200-40400
|
$169.07 | ||
|
Unavailable |
|||
|
#2
BEARING
09263-30007
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
09180-22008
|
$11.39 | ||
|
Unavailable |
|||
|
#4
WASHER (22X44X2.0)
09160-22012
Superseded by 09160-22068
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, SLEEVE
21411-40400
|
$62.50 | ||
|
Unavailable |
|||
|
#6
NUT
09140-22005
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09167-22005
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (22X44X2.0)
09160-22012
Superseded by 09160-22068
|
$11.47 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH DRIVE NO.1
21441-40402
Superseded by 21441-37400
|
$20.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRIVEN (IRON)
21451-31000
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH DRIVEN
21451-40001
Superseded by 21451-31000
|
$11.53 | ||
|
Unavailable |
|||
|
#11
PLATE, PRESSURE
21462-16500
Superseded by 21462-14301
|
$55.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-19007
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (6.5X20X1.6)
09160-06020
Superseded by 09160-06066
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD,CLUTCH PUSH,L
23111-39101
Superseded by 23111-15501
|
$14.77 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIECE,CLUTCH PUSH
23121-40300
Superseded by 23121-38201
|
$25.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
09134-06001
Superseded by 09134-06010
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
.NUT
08310-22068
Superseded by 08310-00067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEEL BALL
06111-08003
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
09263-15003
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CLUTCH PUSH
09160-15015
Superseded by 09160-15045
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (14.5X22X1)
09160-14003
Superseded by 09160-14054
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAMSHAFT, RELEASE
23122-40400
Superseded by 23122-40902
|
$28.89 | ||
|
Unavailable |
|||
|
#25
ARM, RELEASE
23271-40000
|
$55.52 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01107-06208
Superseded by 01500-06207
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#27
STOPPER
23281-40300
|
$1.82 | ||
|
Unavailable |
|||
|
#28
SCREW
02152-06168
Superseded by 02112-16167
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
