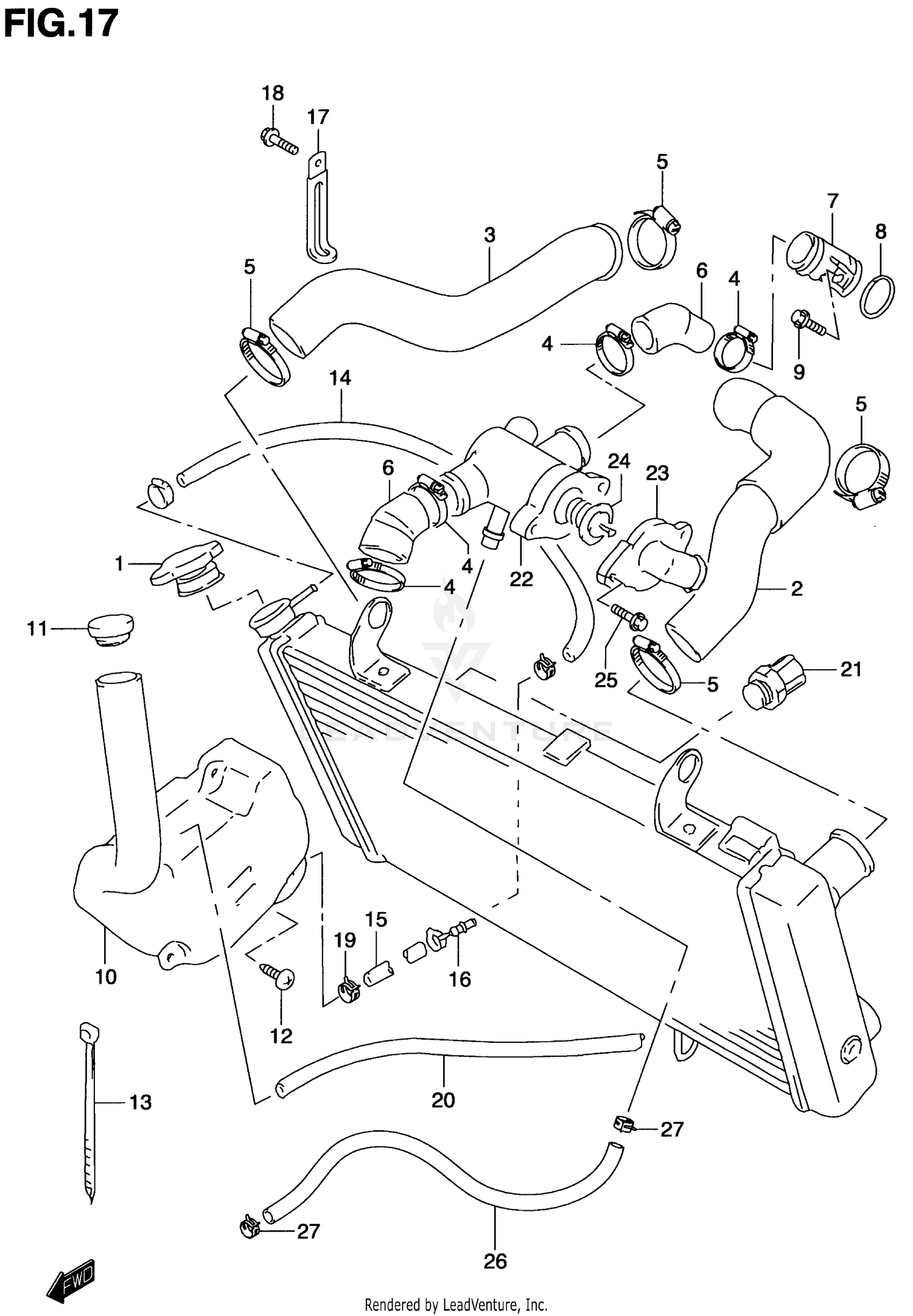

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, RADIATOR
17730-12C01
Superseded by 17730-08J00
|
$47.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
CAP, RADIATOR
17730-12C20
Superseded by 17730-08J00
|
$47.17 | ||
|
Unavailable |
|||
|
#2
HOSE, RADIATOR INLET
17851-02F00
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, RADIATOR OUTLET
17852-02F00
|
$26.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, RADIATOR OUTLET
17852-02F10
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-28511
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
09402-38511
|
$12.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, CONNECTOR INLET
17853-02F00
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION,CONNECTOR HOSE
17890-02F00
Superseded by 17890-06G20
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION,CONNECTOR HOSE
17890-02F00
Superseded by 17890-06G20
|
$16.02 | ||
|
Unavailable |
|||
|
#7
UNION, CONNECTOR HOSE FRONT
17890-02F10
Superseded by 17890-06G10
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
09280-18009
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-06163
Superseded by 07130-0616B
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-06123
Superseded by 07130-0612A
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07130-06123
Superseded by 07130-0612A
|
$2.65 | ||
|
Unavailable |
|||
|
#10
TANK ASSY, RESERVOIR
17910-02F00
|
$77.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
.CAP,RESERVOIR TANK
17932-12C00
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09136-05034
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
09407-17401
Superseded by 09407-17402
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, INLET NO.1
09352-50901-600
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, INLET NO.2
09352-50901-600
|
$8.62 | ||
|
Unavailable |
|||
|
#16
UNION
09364-06005
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09404-06432
Superseded by 09404-06039
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
03541-05083
Superseded by 03541-0508A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09401-08411
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE (5X9X600)
09352-50901-600
|
$8.62 | ||
|
Unavailable |
|||
|
#20
HOSE (5X9X2000)
09352-50901-00B
|
$28.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH,RDTR FAN
17680-33E00
Superseded by 17680-33E01
|
$53.77 | ||
|
Available to order. Add to View Price |
|||
|
#22
CONNECTOR, THERMOSTAT INLET
17662-02F00
|
$27.23 | ||
|
Unavailable |
|||
|
#22
CONNECTOR,THERMOSTAT INLET
17662-02F10
Superseded by 17662-02F11
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP,THERMOSTAT CONNECTOR
17663-42E00
|
$51.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
THERMOSTAT,WATE
17670-32C10
Superseded by 17670-32C11
|
$43.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
THERMOSTAT,WTR,
17670-50F00
Superseded by 17670-50F01
|
$37.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
THERMOSTAT, WATER
17670-32C20
|
$57.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.08 | ||
|
Unavailable |
|||
|
#26
HOSE,WATER BYPASS NO.1
17856-02F10
Superseded by 17854-24F00
|
$21.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
09401-12409
Superseded by 09401-12414
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
