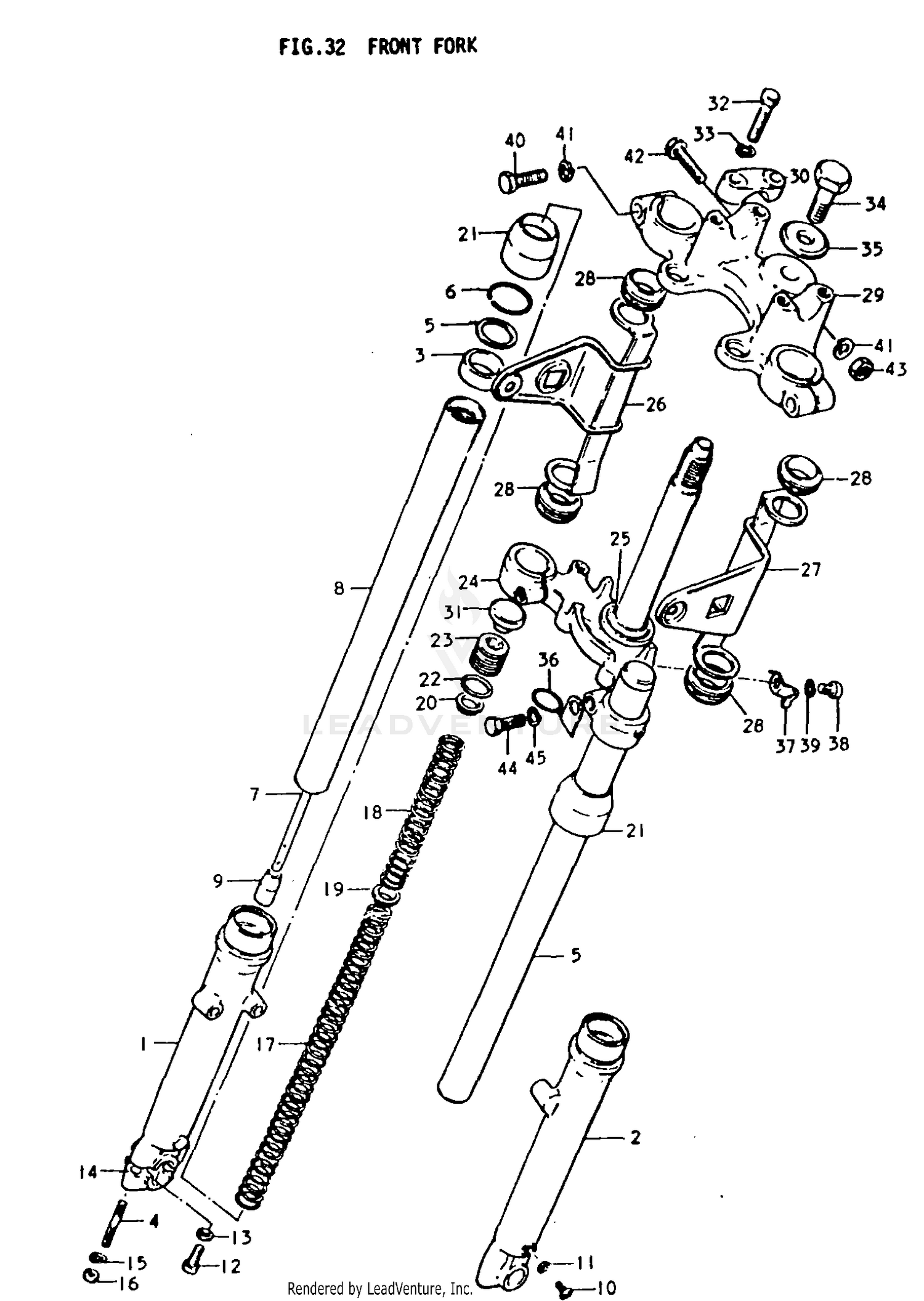

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
FORK ASSY, FRONT
51100-30520-291
|
$480.70 | ||
|
Unavailable |
|||
|
#1
OUTER TUBE, RH
51130-30520
|
$79.76 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE, LH
51140-30520
|
$88.21 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
51153-34010
|
$18.44 | ||
|
Unavailable |
|||
|
#4
STUD BOLT (L:30)
01421-08308
Superseded by 09108-08142
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
51158-32110
|
$2.57 | ||
|
Unavailable |
|||
|
#6
RING
51156-32110
|
$3.63 | ||
|
Unavailable |
|||
|
#7
CYLINDER
51146-30520
|
$36.63 | ||
|
Unavailable |
|||
|
#8
INNER TUBE
51111-30520
|
$124.04 | ||
|
Unavailable |
|||
|
#9
PIECE, OIL LOCK
51195-38010
|
$10.19 | ||
|
Unavailable |
|||
|
#10
SCREW
02111-04087
Superseded by 02112-04087
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
51183-03010
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
51147-16510
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
51148-41310
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, AXLE
51132-16510
|
$14.84 | ||
|
Unavailable |
|||
|
#15
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLUTCH RELEASE NO.1
09140-08005
Superseded by 09140-08017
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, NO. 1
51171-30520
|
$17.64 | ||
|
Unavailable |
|||
|
#18
SPRING, NO. 2
51184-30520
|
$6.96 | ||
|
Unavailable |
|||
|
#19
GUIDE, SPRING
51172-38010
|
$6.37 | ||
|
Unavailable |
|||
|
#20
SPACER
51176-41310
|
$2.58 | ||
|
Unavailable |
|||
|
#21
DUST SEAL
51173-41310
|
$11.37 | ||
|
Unavailable |
|||
|
#22
O RING
51117-16310
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP
51351-30520
|
$10.43 | ||
|
Unavailable |
|||
|
#24
NO DESCRIPTION AVAILABLE
51410-30520
Superseded by 51410-30530
|
$92.95 | ||
|
Unavailable |
|||
|
#25
OUTER RACE
51621-33001
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, HEADLAMP HOUSING RH
51530-30510-291
|
$37.33 | ||
|
Unavailable |
|||
|
#27
BRACKET, HEADLAMP HOUSING LH
51540-30650-291
|
$36.62 | ||
|
Unavailable |
|||
|
#28
GASKET
51556-41410
|
$3.14 | ||
|
Unavailable |
|||
|
#29
HEAD, STEERING STEM
51311-30510-019
|
$92.26 | ||
|
Unavailable |
|||
|
#30
CLAMP, HANDLEBAR UPPER
56211-27210-019
Superseded by 56211-29320-291
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP
51189-30520
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
01204-08357
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#34
BOLT
51351-20010
Superseded by 51351-29400
|
$29.45 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
51356-22012
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
51455-36010
|
$3.18 | ||
|
Unavailable |
|||
|
#37
CLIP
51453-05110
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
02112-06108
Superseded by 02112-06107
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#39
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
51451-15113
Superseded by 01104-10388
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#41
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
51451-15010
|
$4.27 | ||
|
Unavailable |
|||
|
#43
NUT
08310-12108
Superseded by 08310-00107
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
51451-28012
|
$5.85 | ||
|
Unavailable |
|||
|
#45
LOCK WASHER
08321-21128
Superseded by 08321-01127
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
