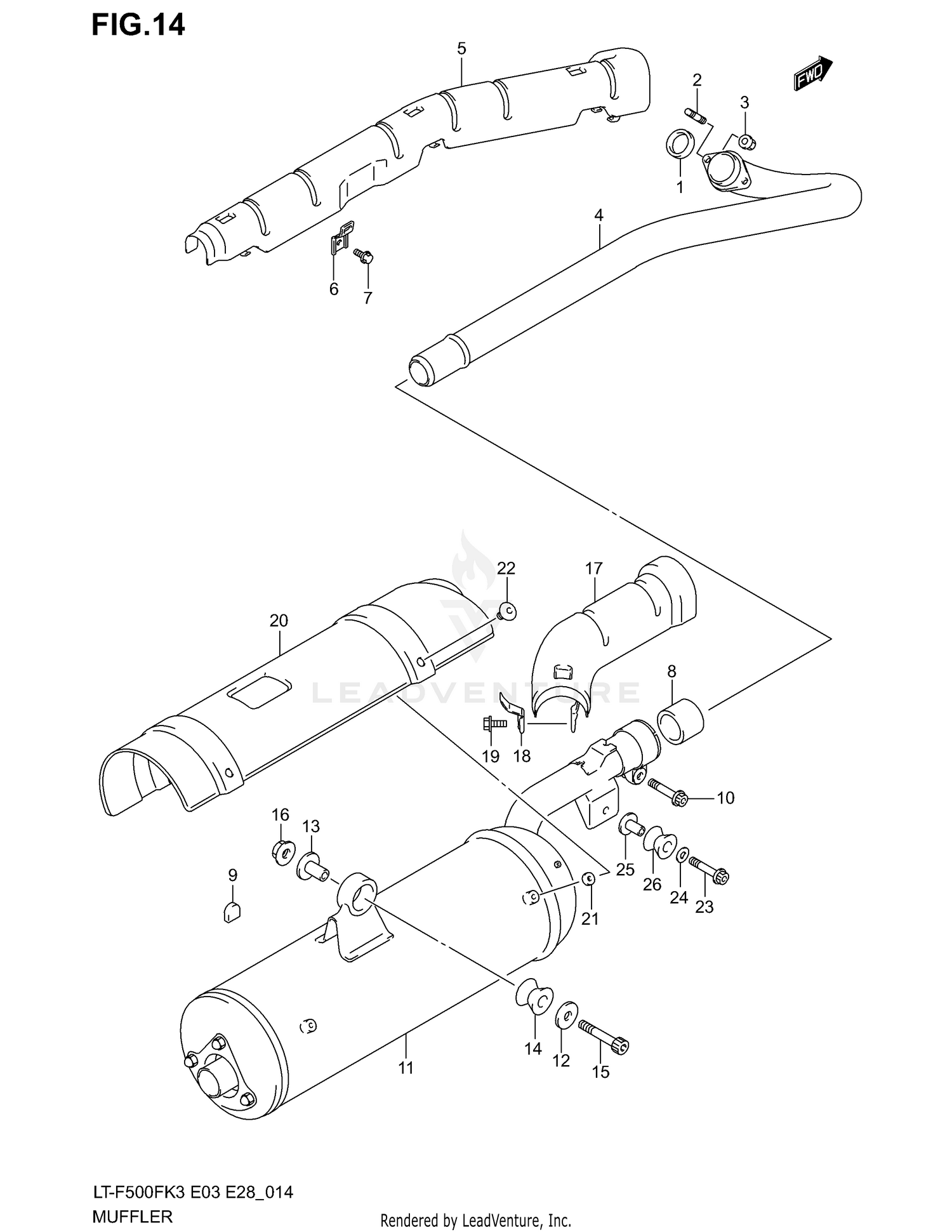

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
.GASKET, EXHAUST
14181-18C00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD BOLT
01421-08253
Superseded by 01421-0825A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08319-31083
Superseded by 08319-3108A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, EXHAUST
14150-03GF0
|
$131.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, EXHAUST PIPE, FRONT
14180-03GF0
|
$60.06 | ||
|
Unavailable |
|||
|
#6
CLAMP
14185-03G00
|
$3.24 | ||
|
Unavailable |
|||
|
#7
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MUF
14771-13E00
Superseded by 14771-13E10
|
$17.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
14795-06F00
|
$3.60 | ||
|
Unavailable |
|||
|
#10
BOLT
07120-08403
Superseded by 07120-0840A
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
14310-03G01
Superseded by 14300-03810
|
$434.39 | ||
|
Unavailable |
|||
|
#12
WASHER, MUFFLER SUPPORT
09160-08503
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, MUFFLER SUPPORT
09180-08152
|
$6.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION, MUFFLER SUPPORT
09320-12048
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, MUFFLER SUPPORT
07120-08453
Superseded by 07120-0845B
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-31083
Superseded by 08319-3108A
|
$2.45 | ||
|
Unavailable |
|||
|
#17
COVER, MUFFLER FRONT
14790-03G00
|
$39.02 | ||
|
Unavailable |
|||
|
#18
CLAMP
14185-03G00
|
$3.24 | ||
|
Unavailable |
|||
|
#19
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.08 | ||
|
Unavailable |
|||
|
#20
COVER, MUFFLER REAR
14880-03GF0
|
$79.72 | ||
|
Unavailable |
|||
|
#21
GASKET, MUFFLER COVER
09168-06120
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
.SCREW (6X12)
09139-06027
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
09106-08133
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (8.5X28X1.5)
09160-08135
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER, EXHAUST SUPPORT
09180-08151
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION, EXHAUST SUPPORT
09320-12043
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
