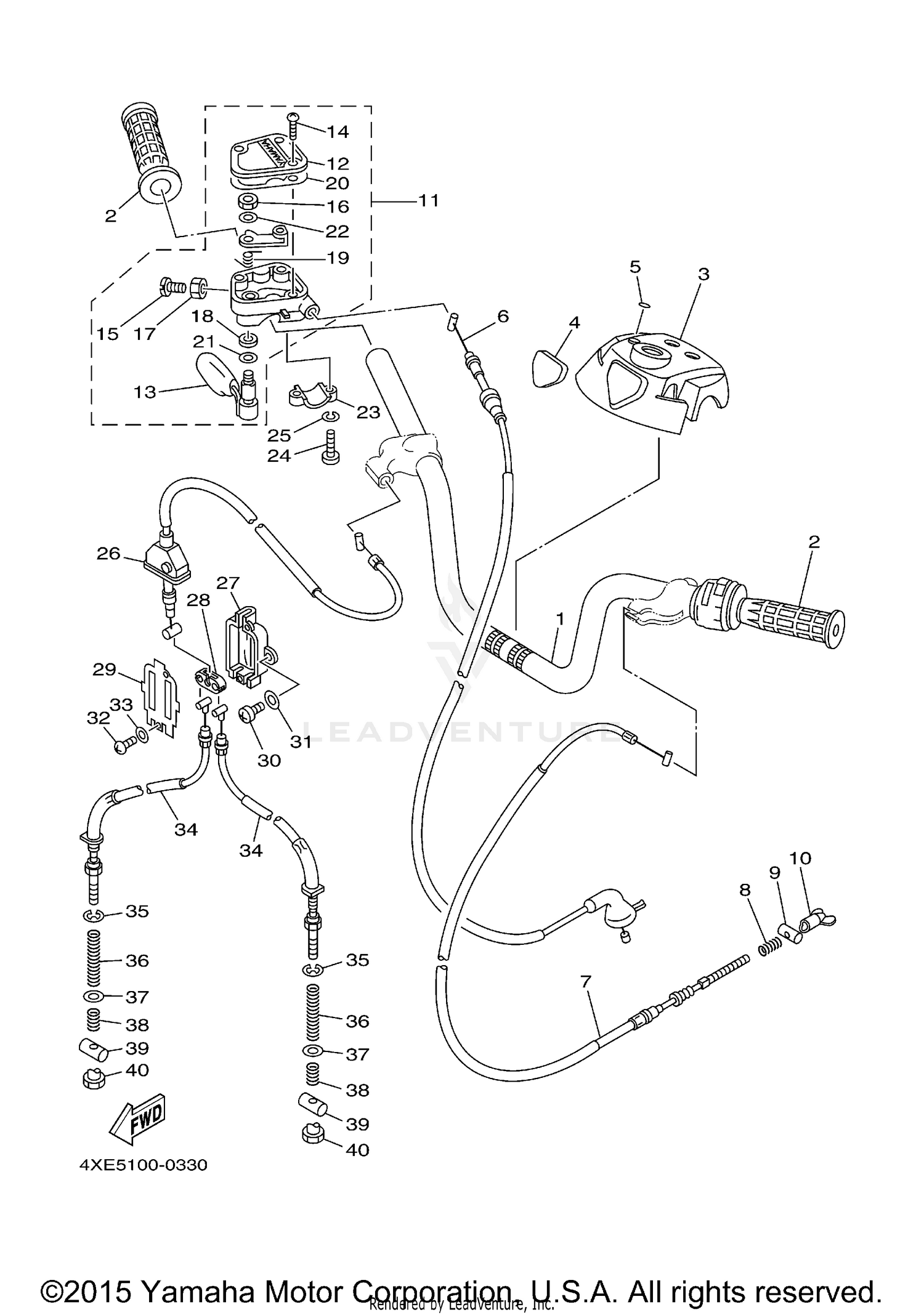

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
4XE-F6111-00-00
Superseded by 4XE-F6111-10-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
3GB-26241-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, HANDLEBAR
4XE-F6124-10-00
|
$28.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 3D
5FU-F6232-00-00
|
$12.27 | ||
|
Unavailable |
|||
|
#5
TUNING FORK MARK
5GT-2836B-00-00
Superseded by 5GT-2836B-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 1
4KB-26311-10-00
Superseded by 4KB-26311-11-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, BRAKE
4XE-26341-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, ADJUSTING
20E-26343-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
THROTTLE LEVER ASSY
4KB-26250-00-00
Superseded by 4KB-26250-12-00
|
$117.99 | ||
|
Unavailable |
|||
|
#12
CAP, GEAR
4KB-2628F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$57.99 | ||
|
Unavailable |
|||
|
#14
SCREW
90149-04278-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
1NV-26304-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
4KB-2628G-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
1NV-26129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#23
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE, BRAKE 4
4BD-26373-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOUSING, BRAKE LINK
52H-26371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT, CABLE
52H-26347-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE
52H-2631G-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
CABLE, BRAKE
4BD-26361-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPRING, COMPRESSION
90501-123A0-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
90209-06265-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
PIN
90249-12008-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
