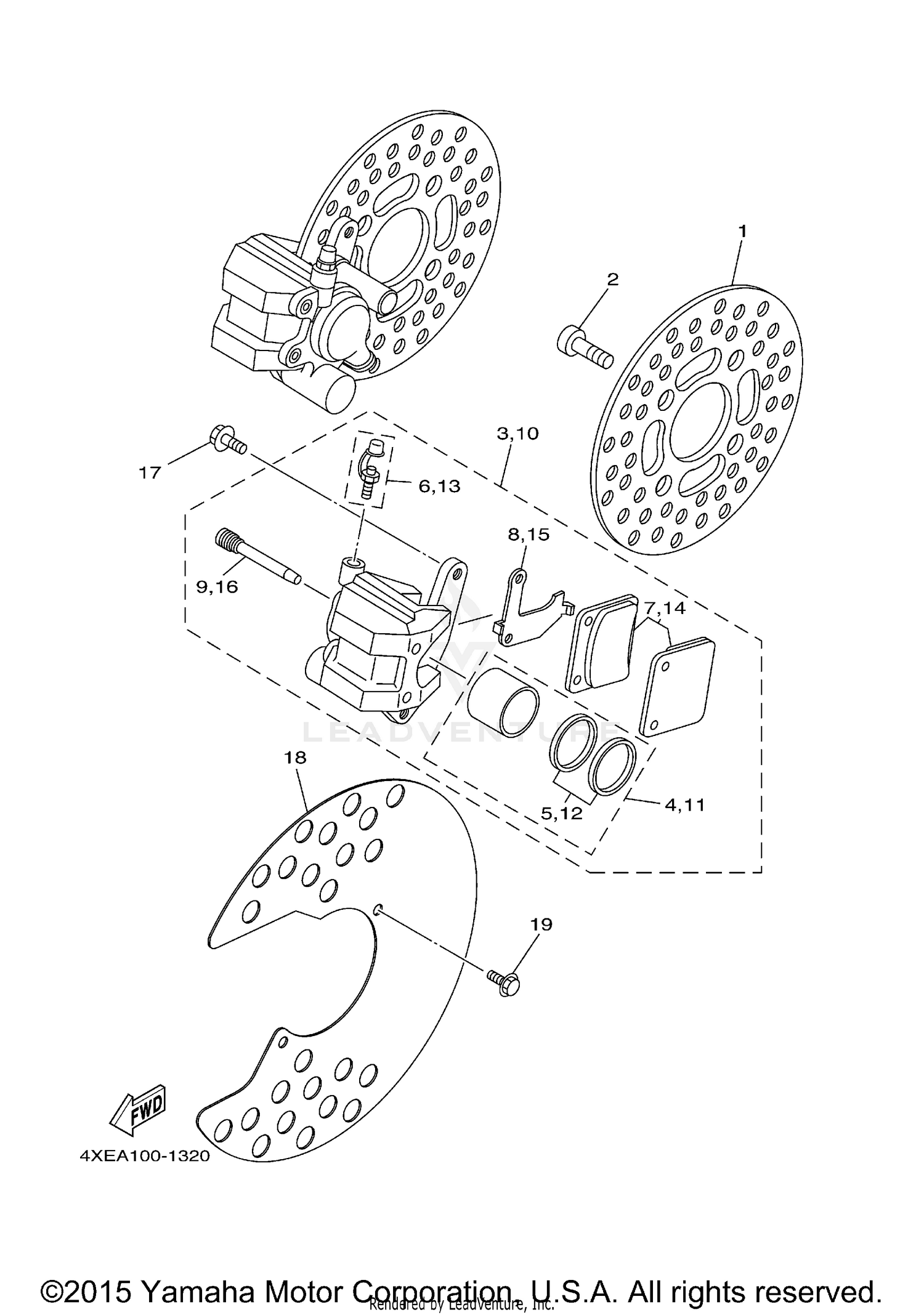

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
4XE-F582T-10-00
Superseded by 4XE-F582T-11-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90149-08268-00
Superseded by 90109-08087-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
3GD-2580T-00-00
Superseded by 3GD-2580T-01-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3GD-W0047-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE PAD KIT
3GD-W0045-00-00
Superseded by 3GD-W0045-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CALIPER
3GD-25827-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, PAD
3GD-25933-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CALIPER ASSY (RIGHT)
3GD-2580U-00-00
Superseded by 3GD-2580U-01-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON ASSY, CALIPER
3GD-W0057-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#12
CALIPER SEAL KIT
3GD-W0047-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#13
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
BRAKE PAD KIT
3GD-W0045-00-00
Superseded by 3GD-W0045-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
SHIM, CALIPER
3GD-25828-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, PAD
3GD-25933-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
90105-088B2-00
Superseded by 90105-08161-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, WHEEL 1
4XE-F514A-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
9582P-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
