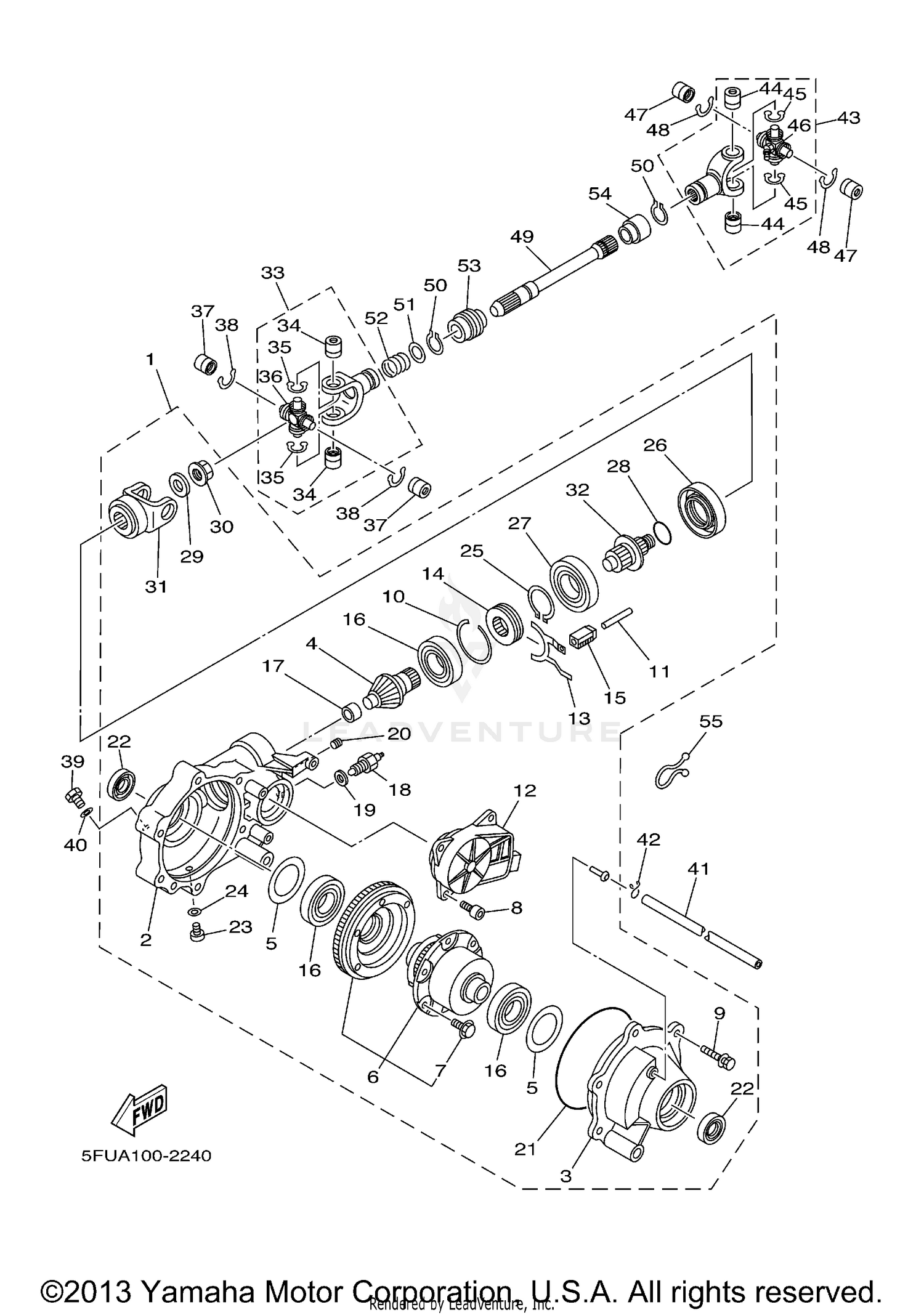

2006 Yamaha BIG BEAR 400 4X4 FRONT DIFFERENTIAL OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT AXLE GEAR CASE
5FU-46160-02-00
Superseded by 5FU-46160-03-00
|
$1,329.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, SHAFT DRIVE 2
5GH-46161-01-00
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, BEARING 2
5GH-46162-01-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PINION, DRIVE 2
5GH-46141-01-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, THRUST (0.5T)
4WV-46119-41-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.1T)
4WV-46119-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.2T)
4WV-46119-11-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.3T)
4WV-46119-21-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (1.0T)
4WV-46119-51-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.4T)
4WV-46119-31-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LIMITED SLIP DIFF. ASSY
5GH-46470-03-00
Superseded by 5GH-46470-04-00
|
$685.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT 1
4WV-46155-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91317-08020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT 3
4WV-46159-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING,HOLE SNAP 2
4WV-46143-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, SHIFTER
5GH-18318-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SERVO MOTOR COMP
5GH-4616A-02-00
|
$698.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FORK, SHIFT 4
5GH-18514-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH,DRIVEN
4WV-46441-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT 2
5GH-18319-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING 2
4WV-46165-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING 4
4WV-46167-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEUTRAL SWITCH ASSY
3GD-82540-11-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET 1
4WV-46132-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SET
90113-08004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93211-40040-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, OIL 1
93102-24034-00
Superseded by 3B4-46163-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLUG, STRAIGHT SCREW
90340-10001-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-10003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93450-71142-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL, OIL 1
93102-50030-00
Superseded by 5TE-46163-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93316-00801-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING 1
5FU-46134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-14633-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT 1
4WV-46145-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
YOKE, JOINT 2
5FU-46146-00-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, DRIVE PINION
5FU-46121-00-00
|
$120.39 | ||
|
Available to order. Add to View Price |
|||
|
#33
CROSS JOINT COMP. 3
5FU-46108-00-00
|
$326.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
93399-99948-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP
93440-20088-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPIDER
5GT-46187-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93399-99948-00
|
$49.99 | ||
|
Unavailable |
|||
|
#38
CIRCLIP
93440-20088-00
|
$6.99 | ||
|
Unavailable |
|||
|
#39
PLUG, STRAIGHT SCREW
90340-14029-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET
214-11198-01-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE (L900)
90445-078C4-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP
90467-06016-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#43
CROSS JOINT COMP. 3
5FU-46108-00-00
|
$326.99 | ||
|
Unavailable |
|||
|
#44
BEARING
93399-99948-00
|
$49.99 | ||
|
Unavailable |
|||
|
#45
CIRCLIP
93440-20088-00
|
$6.99 | ||
|
Unavailable |
|||
|
#46
SPIDER
5GT-46187-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#47
BEARING
93399-99948-00
|
$49.99 | ||
|
Unavailable |
|||
|
#48
CIRCLIP
93440-20088-00
|
$6.99 | ||
|
Unavailable |
|||
|
#49
SHAFT, DRIVE 2
5FU-G6173-10-00
|
$127.99 | ||
|
Unavailable |
|||
|
#50
CIRCLIP
99009-19400-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLATE (T=1.0)
90201-20266-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SPRING, COMPRESSION
90501-235L9-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SEAL 1
5GT-46136-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
SEAL 2
5GT-46137-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLAMP
90464-14800-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
