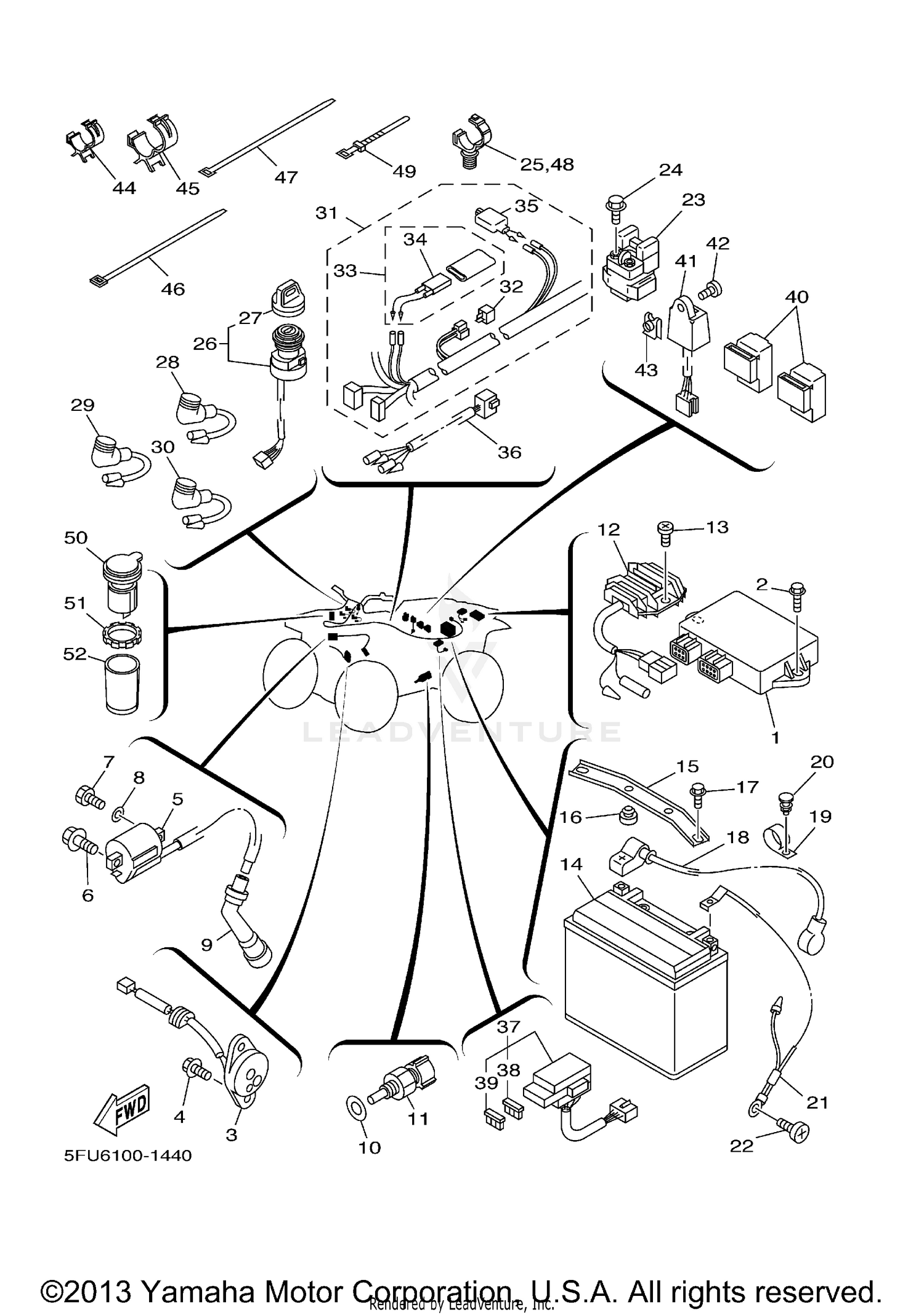

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5FU-85540-10-00
|
$583.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEUTRAL SWITCH ASSY
4KB-82540-01-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06044-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSY
5FU-82310-00-00
Superseded by 5FU-82310-03-00
|
$40.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-06873-00
Superseded by 90109-06865-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
371-82370-00-00
Superseded by 4VW-82370-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-12172-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
THERMO UNIT
4GB-83591-10-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RECTIFIER & REGULATOR ASSY
4KB-81960-02-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Unavailable |
|||
|
#14
YTX20LBS YUASA BATT
5FU-H2100-10-00
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#15
BRACKET, BATTERY
5FU-H2128-00-00
Superseded by 5FU-H2128-01-00
|
$3.60 | ||
|
Unavailable |
|||
|
#16
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Unavailable |
|||
|
#18
WIRE, PLUS LEAD
5FU-82115-00-00
Superseded by 5FU-H2115-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-12801-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG
90338-05829-00
|
$1.25 | ||
|
Unavailable |
|||
|
#21
WIRE, MINUS LEAD
5FU-82116-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING
9770P-60416-00
Superseded by 97702-60416-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
STARTER RELAY ASSY (RC19-015)
4SV-81940-00-00
Superseded by 4SV-81940-12-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
9502P-06008-00
Superseded by 95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-12830-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
MAIN SWITCH ASSY
4GB-82510-10-00
Superseded by 4GB-82510-12-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PILOT LIGHT ASSY
4KB-83530-00-00
Superseded by 4KB-83530-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PILOT LIGHT ASSY
4KB-83530-10-00
Superseded by 4KB-83530-11-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PILOT LIGHT ASSY
4KB-83530-30-00
Superseded by 4KB-83530-31-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WIRE HARNESS ASSY
5FU-82590-00-00
|
$356.20 | ||
|
Unavailable |
|||
|
#32
DIODE ASSY
3WP-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCUIT BREAKER ASSY
4GB-82180-00-00
Superseded by 5GT-82180-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
THERMO SWITCH ASSY
4GB-82560-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
THERMOSWITCH ASSY
5FU-82560-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#36
WIRE, SUB LEAD
5FU-82509-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#37
FUSE BOX ASSY
5FU-82170-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FUSE (10A-BL)
42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#39
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
RELAY ASSY
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
MOTOR CONTROL UNIT ASSY
4SH-86510-10-00
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, BIND
98907-06016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-20835-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-25843-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-32800-00
|
$0.80 | ||
|
Unavailable |
|||
|
#47
CLAMP
90464-48837-00
Superseded by 90464-48800-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#49
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
TERMINAL ASSY
5FU-H1920-00-00
Superseded by 5FU-H1920-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT
5FU-H191B-00-00
Superseded by 5FU-H191B-10-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#52
COVER, CONNECTER
5FU-H2599-00-00
Superseded by 5FU-H2599-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
KEY BLANK (A-TYPE)
90890-56001-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#54
KEY BLANK (B-TYPE)
90890-56002-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
