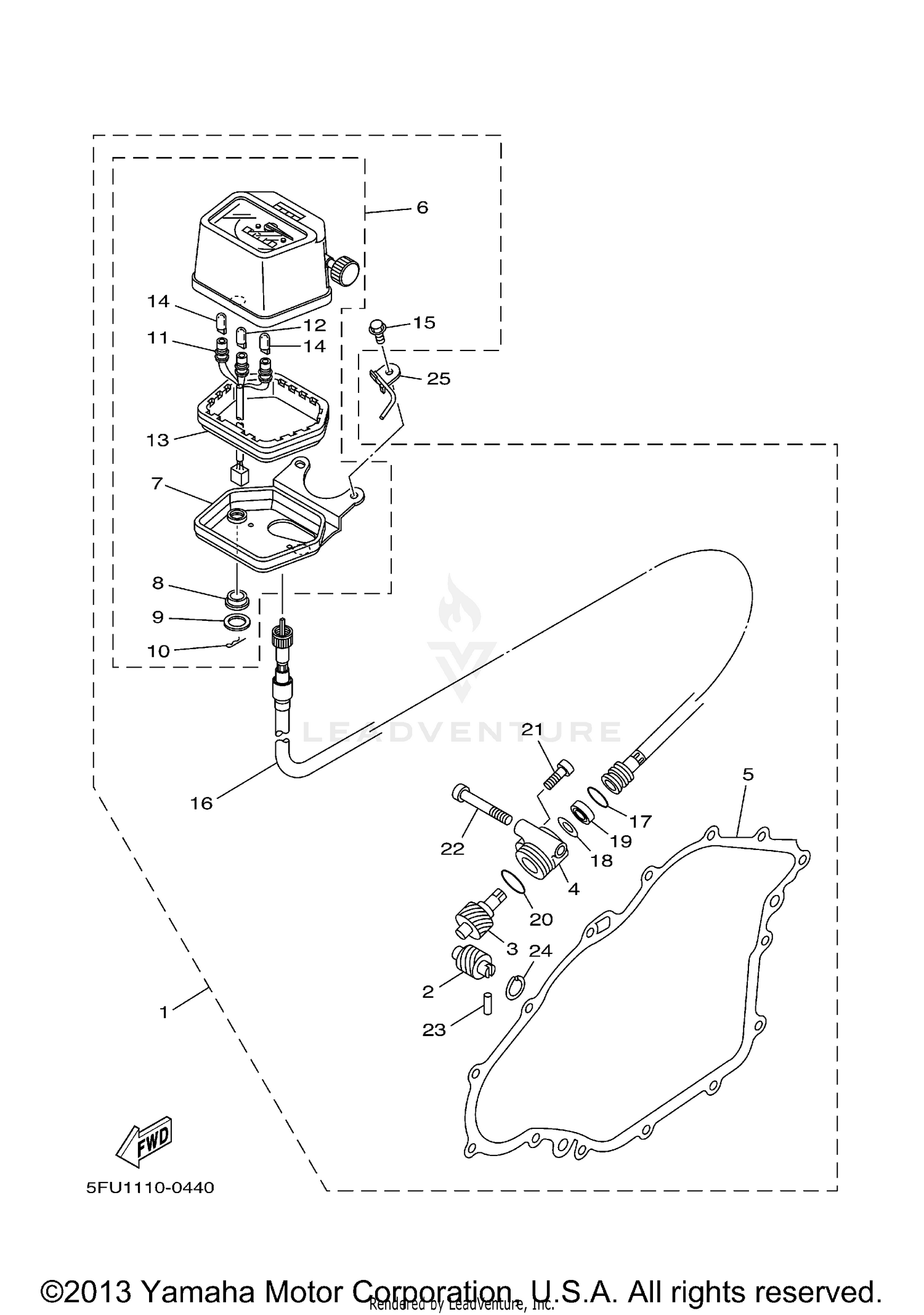

Alternate Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER KIT
5FU-W0081-00-00
|
$209.99 | ||
|
Unavailable |
|||
|
#2
GEAR, DRIVE
59V-17831-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, DRIVEN
59V-17841-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING, TACHOMETER GEAR
4KB-17811-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CRANKCASE COVER 3
4KB-15462-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPEEDOMETER ASSEMBLY
4SH-83510-00-00
|
$234.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, METER
4GB-83519-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-05033-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SOCKET, METER
4SH-83536-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
5Y0-83513-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V-1.7W)
3GM-83517-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPEEDOMETER CABLE ASSY
4WV-83550-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-12M34-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-08307-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-24253-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
93603-14240-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
93440-14155-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUIDE, CABLE
5FU-F6279-00-00
Superseded by 5FU-F6279-10-00
|
$25.99 | ||
|
Unavailable |
|||
