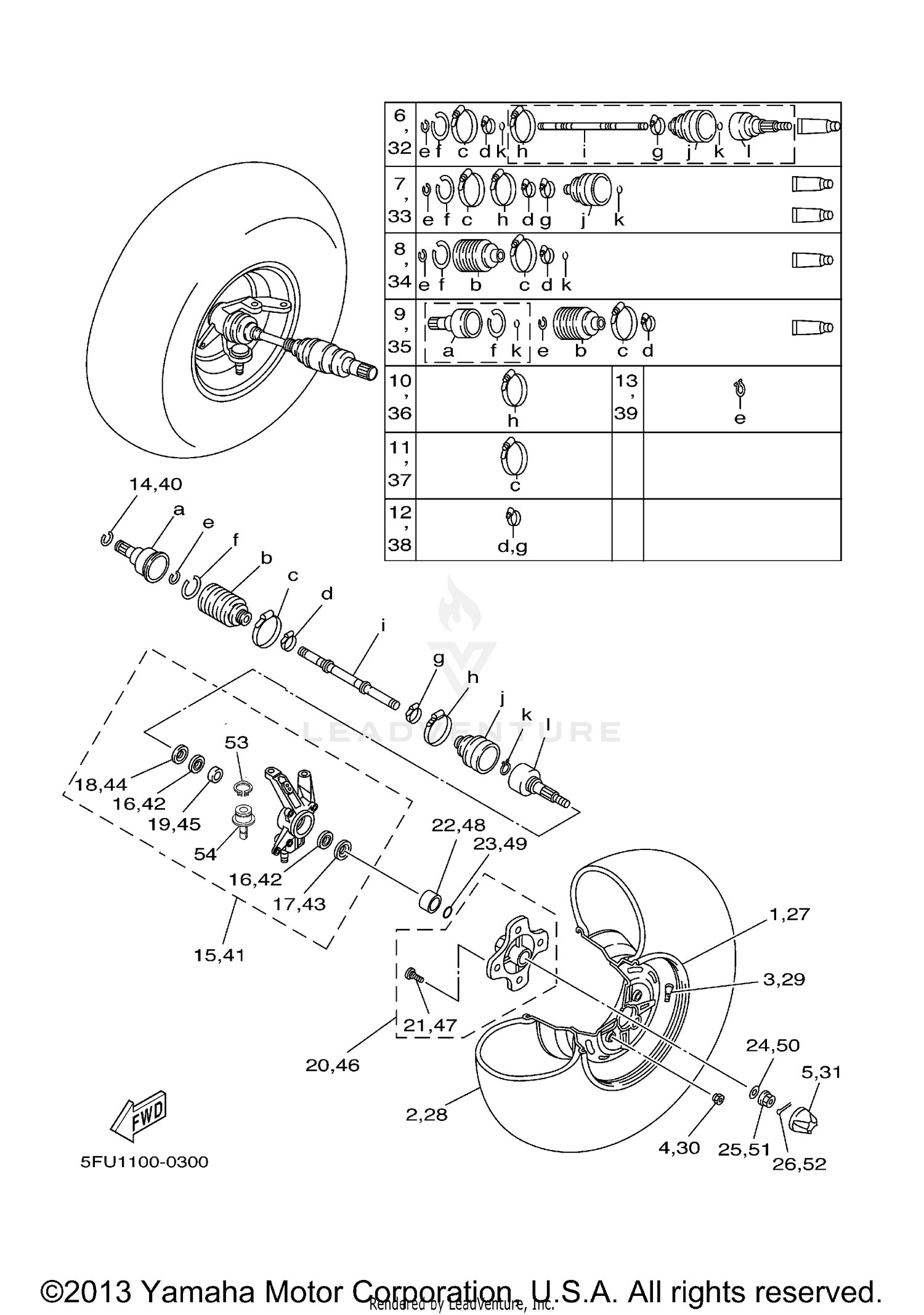

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL COMP.
5FU-F5180-00-00
Superseded by 5FU-F5180-01-00
|
$187.99 | ||
|
Unavailable |
|||
|
#2
TIRE (AT25 X 8-12*, KT404)
94108-128Y0-00
|
$98.99 | ||
|
Unavailable |
|||
|
#3
VALVE, RIM (TR413)
93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10540-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL
5GT-2512A-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL JOINT SET
4KB-2510F-00-00
|
$558.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT SET (BALL JOINT)
4KB-2510G-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT SET (DOUBLE OFFSET JOINT)
4KB-2510H-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DOUBLE OFF SET JOINT
4KB-2510J-00-00
|
$190.99 | ||
|
Unavailable |
|||
|
#10
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT BAND(DOUBLE OFFSETJOINT)
4KB-2511H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SNAP RING
2HR-2512J-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
4KB-2512H-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEERING KNUCKLE (L)
5FU-F3501-00-00
Superseded by 5FU-F3501-11-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-006Y0-00
Superseded by 93306-006Y2-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93106-38046-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93106-38047-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
90560-30325-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HUB, FRONT
4KB-25111-02-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-281V8-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-168R1-00
Superseded by 90201-16804-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WHEEL COMP.
5FU-F5180-00-00
Superseded by 5FU-F5180-01-00
|
$187.99 | ||
|
Unavailable |
|||
|
#28
TIRE (AT25 X 8-12*, KT404)
94108-128Y0-00
|
$98.99 | ||
|
Unavailable |
|||
|
#29
VALVE, RIM (TR413)
93900-00812-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
NUT
90179-10540-00
|
$5.49 | ||
|
Unavailable |
|||
|
#31
CAP, WHEEL
5GT-2512A-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
BALL JOINT SET
4KB-2510F-00-00
|
$558.99 | ||
|
Unavailable |
|||
|
#33
BOOT SET (BALL JOINT)
4KB-2510G-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#34
BOOT SET (DOUBLE OFFSET JOINT)
4KB-2510H-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#35
DOUBLE OFF SET JOINT
4KB-2510J-00-00
|
$190.99 | ||
|
Unavailable |
|||
|
#36
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#37
BOOT BAND(DOUBLE OFFSETJOINT)
4KB-2511H-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#38
BOOT BAND (SMALL)
3HN-2512G-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#39
SNAP RING
2HR-2512J-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#40
CIRCLIP
4KB-2512H-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#41
STEERING,KNUCKLE (R)
5FU-F3502-00-00
Superseded by 5FU-F3502-11-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BEARING
93306-006Y0-00
Superseded by 93306-006Y2-00
|
$30.99 | ||
|
Unavailable |
|||
|
#43
OIL SEAL
93106-38046-00
|
$15.99 | ||
|
Unavailable |
|||
|
#44
OIL SEAL
93106-38047-00
|
$25.99 | ||
|
Unavailable |
|||
|
#45
SPACER
90560-30325-00
|
$12.49 | ||
|
Unavailable |
|||
|
#46
HUB, FRONT
4KB-25111-02-00
|
$218.99 | ||
|
Unavailable |
|||
|
#47
BOLT, SERRATION
90114-10010-00
Superseded by 90114-10014-00
|
$6.49 | ||
|
Unavailable |
|||
|
#48
COLLAR
90387-281V8-00
|
$32.99 | ||
|
Unavailable |
|||
|
#49
O-RING
93210-26606-00
Superseded by 93210-26662-00
|
$6.49 | ||
|
Unavailable |
|||
|
#50
WASHER, PLATE
90201-168R1-00
Superseded by 90201-16804-00
|
$9.49 | ||
|
Unavailable |
|||
|
#51
NUT, CASTLE
90171-16048-00
Superseded by 90171-16001-00
|
$20.99 | ||
|
Unavailable |
|||
|
#52
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
CIRCLIP
93410-32826-00
Superseded by 93410-32075-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
BALL JOINT 1
5FU-F3549-00-00
Superseded by 37S-23549-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
