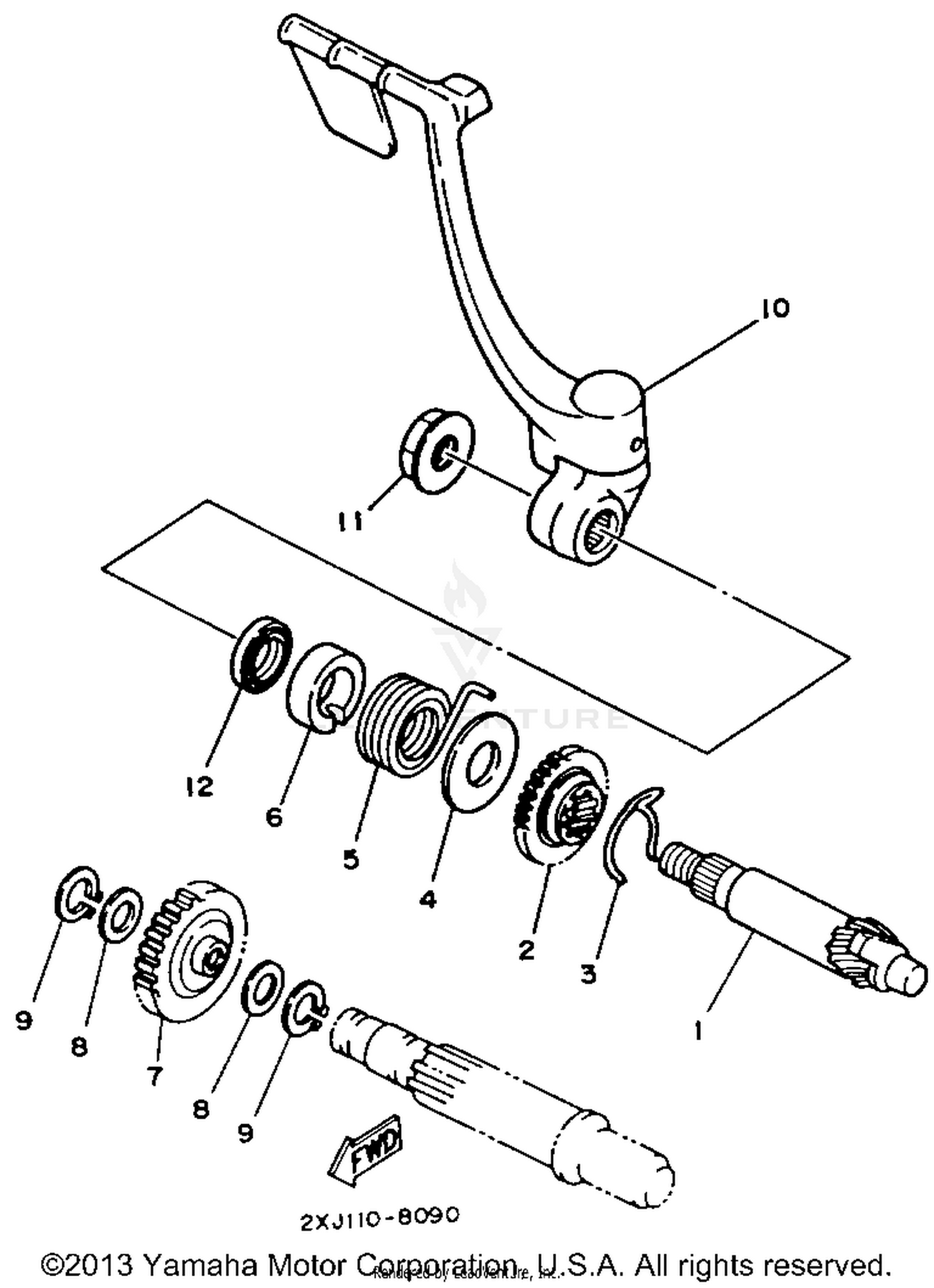

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSY
10V-15660-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, KICK (23T)
10V-15641-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP
90468-26048-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-200J7-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-26667-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, SPRING
10V-15666-00-00
Superseded by 5HP-15664-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, KICK IDLE (29T)
10V-15651-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE (T=1.0)
90201-154E8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
KICK CRANK ASSY
2XJ-15620-10-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12374-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93102-20309-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
