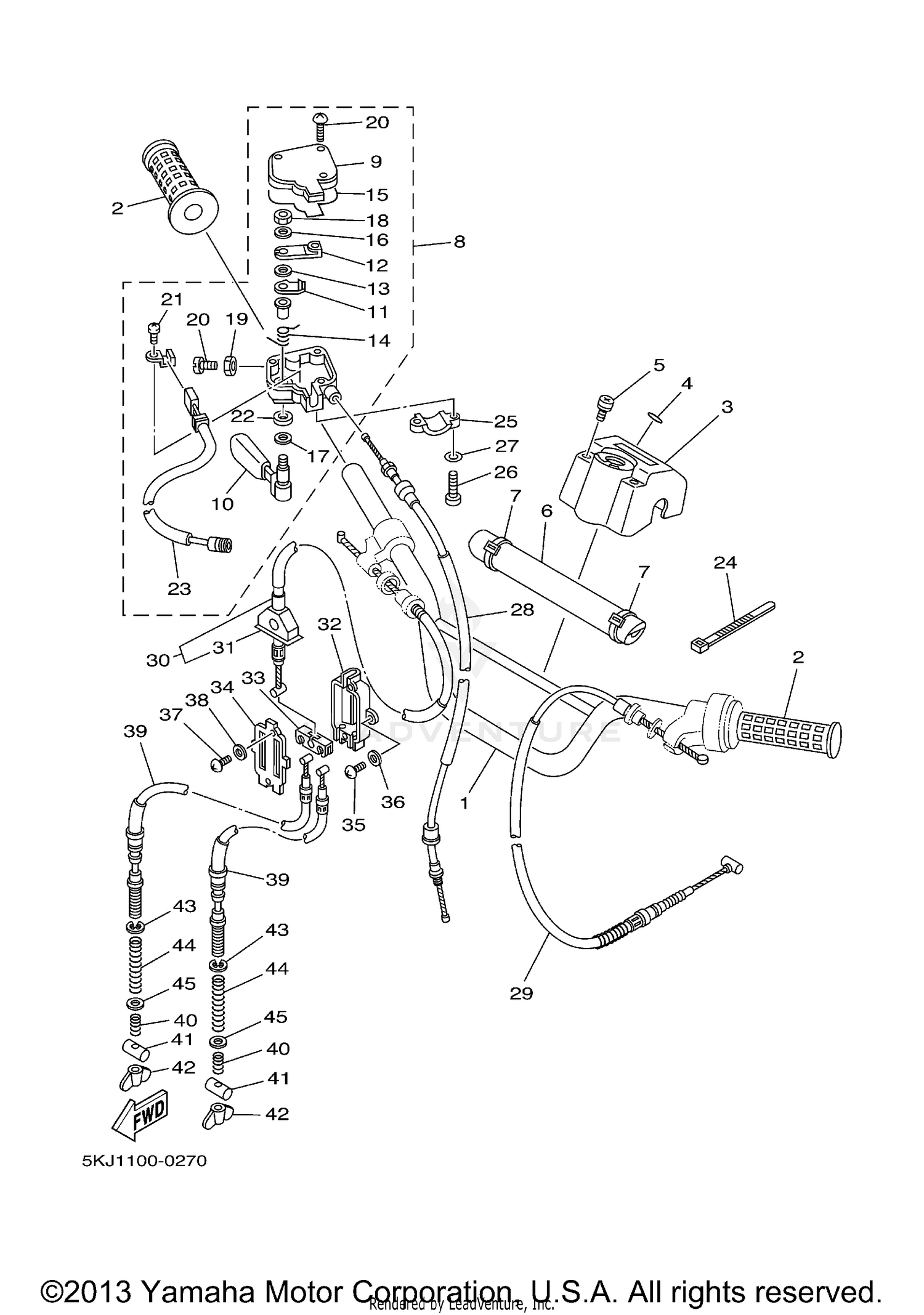

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
2GU-26111-00-00
|
$81.66 | ||
|
Unavailable |
|||
|
#2
GRIP
3GB-26241-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, ROUND HEAD (50Pcs)
2GU-26124-01-00
Superseded by 2GU-26124-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#4
TUNING FORK MARK
5GT-2836B-00-00
Superseded by 5GT-2836B-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, WITH WASHER
90159-06093-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR 1
3GD-2622K-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#7
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
THROTTLE LEVER ASSY
3GG-26250-00-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, GEAR
2GU-2628F-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#10
LEVER, THROTTLE
2GU-2625G-01-00
Superseded by 2GU-2625G-02-00
|
$49.99 | ||
|
Unavailable |
|||
|
#11
ARM, THROTTLE
2GU-2625H-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, THROTTLE 2
2GU-2625J-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
2GU-26259-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
2GU-26314-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
2GU-2628G-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
2GU-26398-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
1NV-26129-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
95306-05700-00
Superseded by 95317-05700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BIND
98902-03006-00
Superseded by 98907-03006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93104-09025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SWITCH, THROTTLE
3GG-82567-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.00 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WIRE, THROTTLE 1
2XJ-26311-01-00
Superseded by 2XJ-26311-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#29
CABLE, CLUTCH
2XJ-26335-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CABLE, BRAKE 4
2XJ-26373-01-00
Superseded by 4BD-26373-01-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOOT
52H-26362-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
HOUSING, BRAKE LINK
52H-26371-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
JOINT, CABLE
52H-26347-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE
52H-2631G-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN HEAD
98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER
92907-03600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CABLE, BRAKE
2XJ-26361-01-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPRING, COMPRESSION
90501-10782-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, WING
90175-06013-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
CIRCLIP
99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING, COMPRESSION
90501-123A0-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER
90209-06265-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
