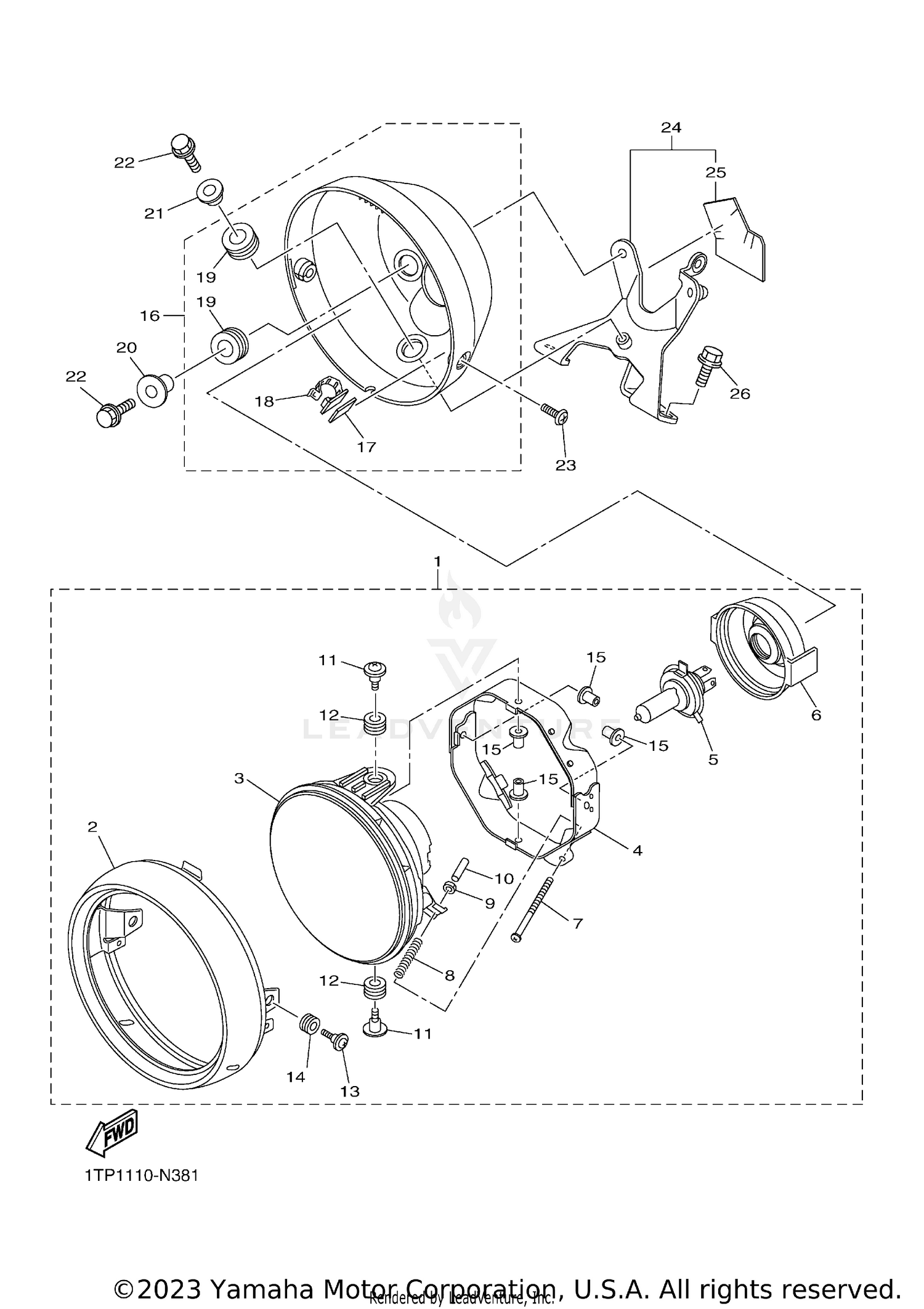

2017 Yamaha BOLT R-SPEC HEADLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSY
5S7-84310-00-00
|
$440.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM, HEADLIGHT
5S7-84315-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
5PX-84320-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, HEADLIGHT 1
5PX-84318-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (12V-60/55W)
8G9-84314-00-00
Superseded by 8V0-84314-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, SOCKET
5PX-84397-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, RIM ADJUSTING
5PX-84331-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SCREW
5PX-84332-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
5PX-84334-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, 1
5PX-84385-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, RIM FITTING
5PX-84325-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
5PX-84354-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, RIM FITTING
5PX-84125-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
5PX-84352-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
5PX-84317-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY ASSY
1TP-84330-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL 1
1TP-28428-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-09009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, HEADLIGHT 1
4WM-84366-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-067K8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06040-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06020-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, BIND
98907-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HEAD LIGHT STAY ASSY.
1TP-8411A-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER, HEADLIGHT STAY
1TP-84136-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-08035-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
