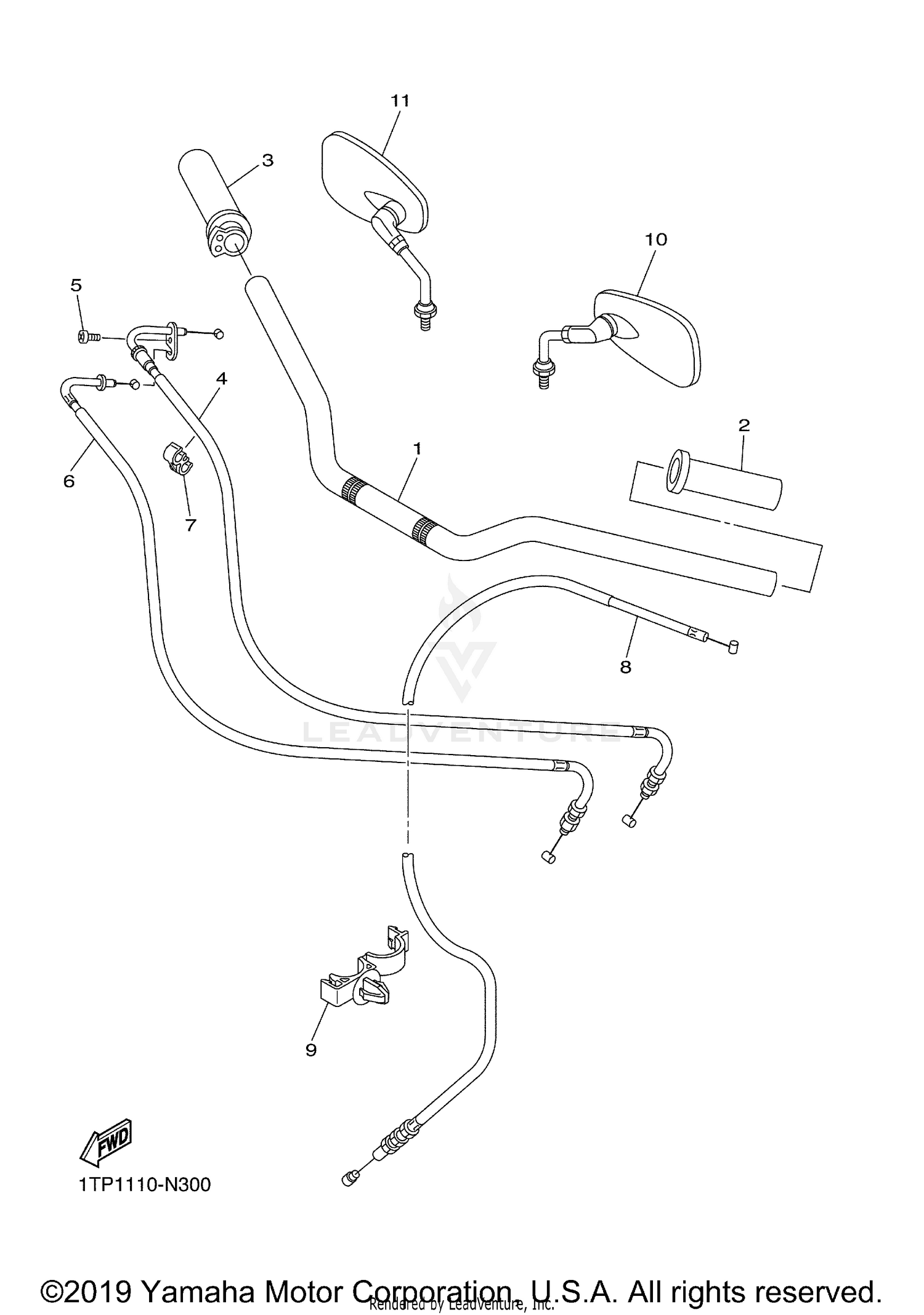

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1TP-26111-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
1TP-26241-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP ASSY
1TP-26240-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, THROTTLE 1
1TP-26311-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, WITH WASHER
98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, THROTTLE 2
1TP-26312-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-06214-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, CLUTCH
1TP-26335-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-17003-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
REAR VIEW MIRROR ASSY (LEFT)
2DX-26280-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR VIEW MIRROR ASSY (RIGHT)
2DX-26290-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
