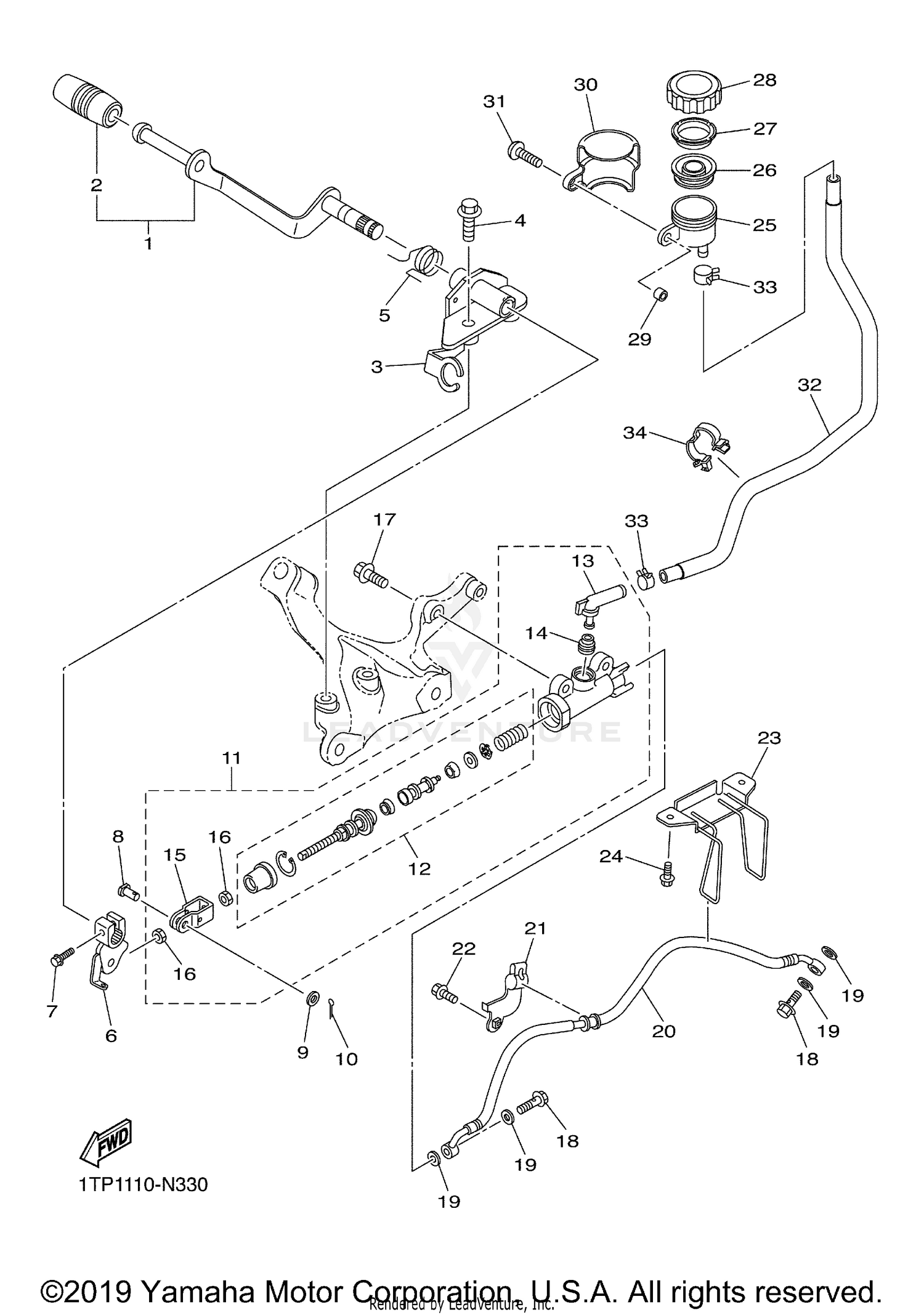

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1TP-27200-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SHIFT PEDAL
5VN-18113-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, BRAKE PEDAL
1TP-27243-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, RETURN
1TP-27216-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER
1TP-27262-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97002-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CLEVIS
90240-08124-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-08083-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR MASTER CYLINDER ASSY.
1TP-2583V-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CYLINDER KIT, MASTER
1TP-25808-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT
4BP-2582A-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
4BP-2585F-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT
4BP-27222-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-08010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-08030-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UNION
90401-10020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE, BRAKE 4
1TP-2581J-01-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, BRAKE HOSE 5
1TP-2588F-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE
1TP-2587A-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Unavailable |
|||
|
#25
TANK, RESERVOIR
31A-25894-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DIAPHRAGM, RESERVOIR
360-25854-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSH, DIAPHRAGM
2GU-25855-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP, RESERVOIR
2KF-25852-50-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06072-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, RESERVOIR TANK
4NK-25888-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
90111-06028-00
Superseded by 92014-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, RESERVOIR
1TP-25895-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-14057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-23239-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
