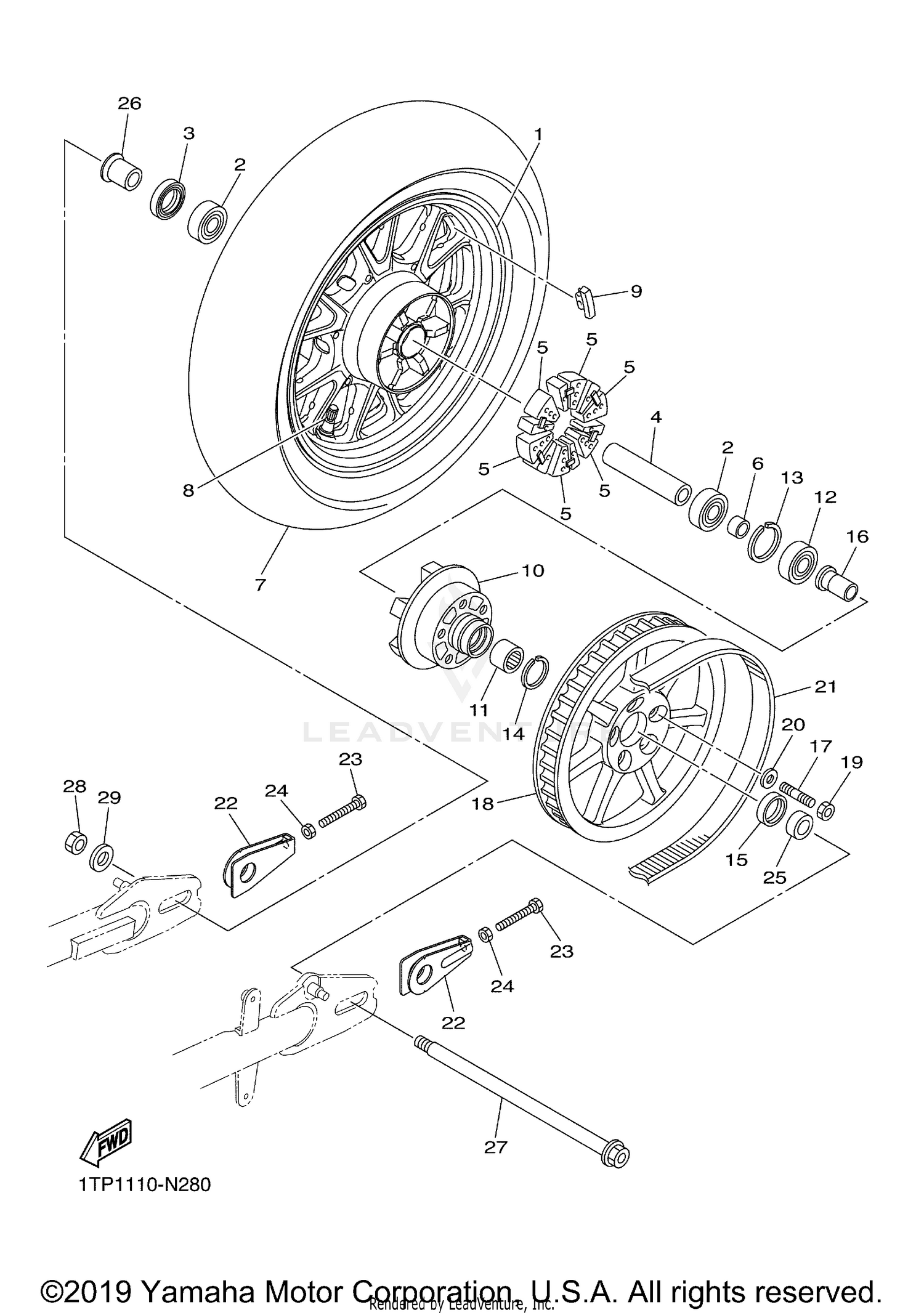

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
1TP-25338-00-00
|
$411.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (B62042RS)
93306-20417-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, BEARING
1TP-25317-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
4WM-25364-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, WHEEL
1TP-25383-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE (150/80B16 M/C 71H EXEDR)
94115-16025-00
|
$349.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH, HUB
1TP-25366-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93311-32698-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99009-52500-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93450-35163-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93106-30004-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, WHEEL
4WM-25376-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STUD
95612-12630-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVEN (70T)
1TP-25470-00-00
|
$566.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U
95614-12100-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-12045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BELT
1TP-46241-00-00
Superseded by 1TP-46241-10-00
|
$395.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 1
1TP-25388-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08777-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX
95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-20034-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-202U8-00
Superseded by 90387-2000B-00
|
$16.49 | ||
|
Unavailable |
|||
|
#27
AXLE, WHEEL
1TP-25381-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-18020-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
