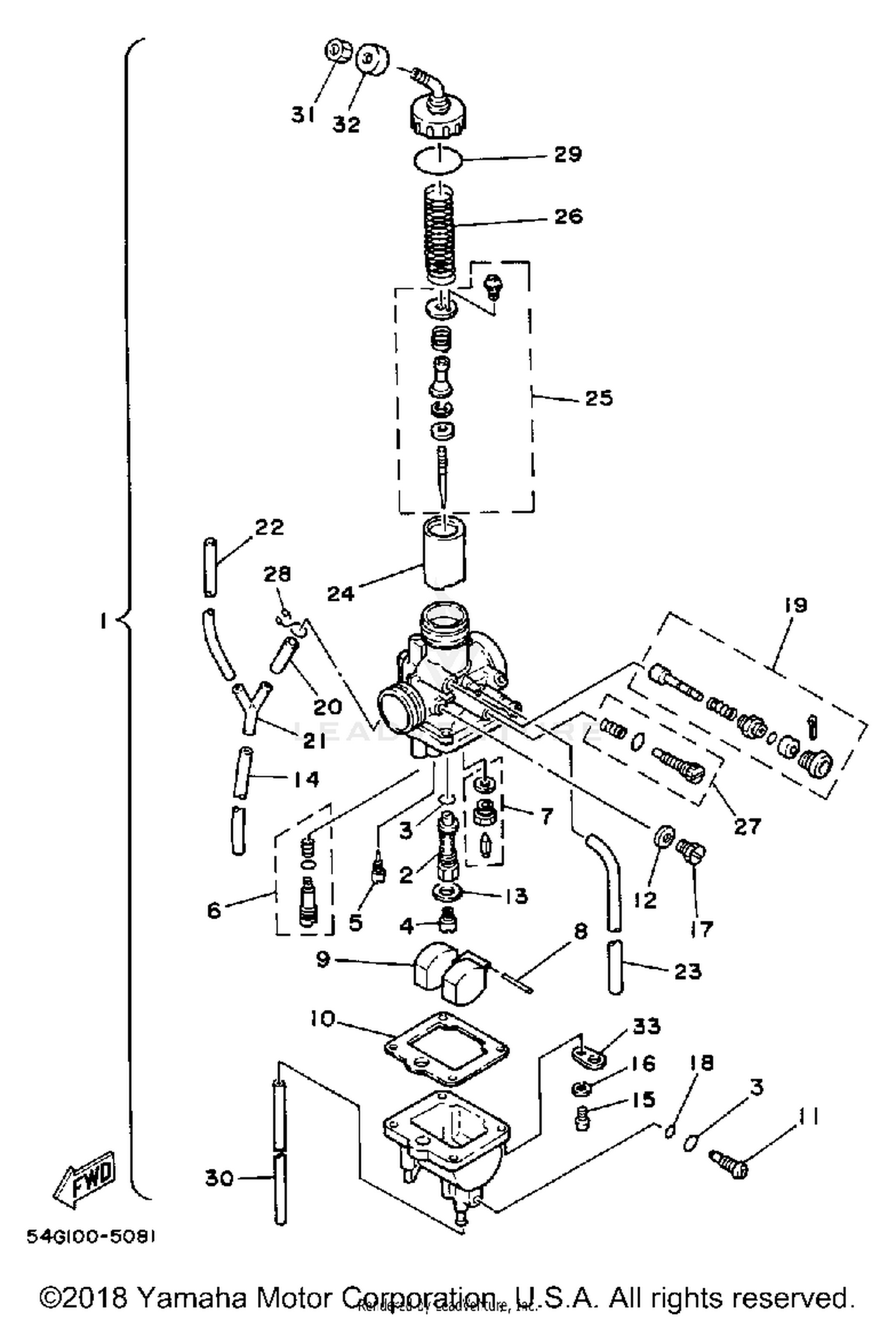

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
1RL-14301-00-00
Superseded by 1RL-14301-02-00
|
$449.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE, MAIN
1RL-14341-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#3
GASKET
360-24512-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN #120
12V-14343-60-00
|
$8.49 | ||
|
Unavailable |
|||
|
#5
JET, PILOT #42
5H0-14342-21-00
|
$6.77 | ||
|
Unavailable |
|||
|
#6
PILOT SCREW SET
12V-14105-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SEAT SET
47J-W1496-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
647-14386-10-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLOAT
54G-14385-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#10
GASKET, FLOAT CHAMBER
5H0-14384-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, SCREW
47J-14115-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#12
GASKET
5H0-14126-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, MAIN JET
38V-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE
51Y-14197-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
5H0-14991-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
5H0-14397-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUNGER, STARTER
54G-14371-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#20
PIPE
56R-14196-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WAY 3
90413-05008-00
Superseded by 90413-05013-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE
5Y1-14197-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 1
5H0-14348-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
VALVE, THROTTLE 1
15E-14312-30-00
|
$59.99 | ||
|
Unavailable |
|||
|
#25
NEEDLE SET
54G-1490J-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#26
SPRING, THRTL VALVE
15E-14331-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#27
THROTTLE SCREW SET
12V-14103-00-00
Superseded by 4WP-14103-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
54G-14159-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#29
O-RING
1J2-14147-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#30
PIPE
36F-14396-00-00
|
$7.55 | ||
|
Unavailable |
|||
|
#31
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP
15A-14118-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#33
PLATE
5Y1-14146-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
