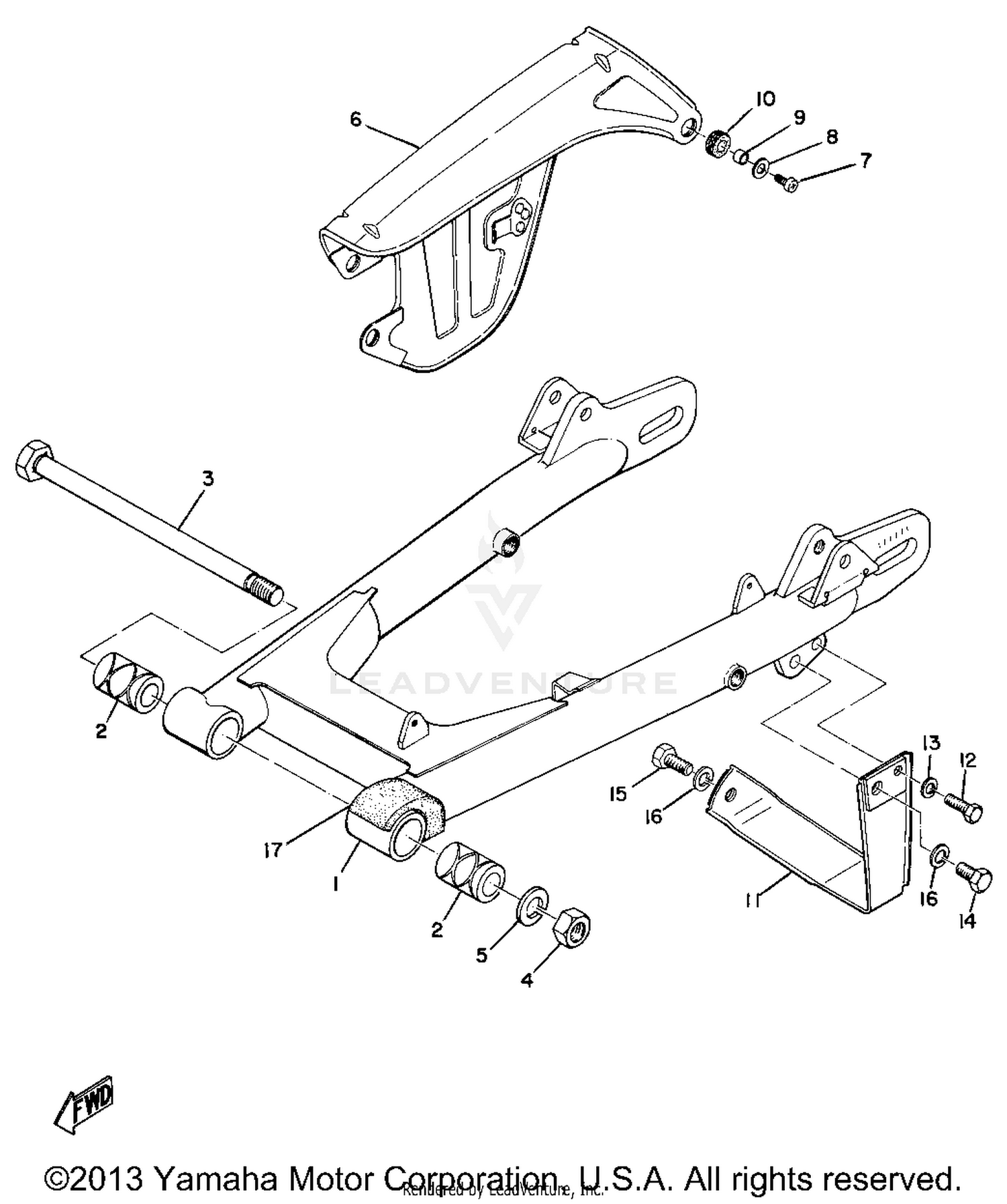

1970 Yamaha CT1 REAR ARM & CHAIN CASE OEM Parts Diagram
Air & Fuel
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
248-22110-00-33
|
$82.83 | ||
|
Unavailable |
|||
|
#2
BUSH 1
174-22123-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#3
SHAFT, PIVOT
248-22141-00-00
|
$13.78 | ||
|
Unavailable |
|||
|
#4
NUT
95312-14600-00
Superseded by 95337-14600-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (6TC)
92901-14100-00
Superseded by 92907-14100-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, CHAIN
248-22311-00-35
|
$19.50 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-06M08-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
90560-05001-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET (141-82596-00)
90480-12096-00
|
$2.40 | ||
|
Unavailable |
|||
|
#11
GUARD, CHAIN
248-22318-00-33
|
$8.06 | ||
|
Unavailable |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, GUARD
248-22151-00-00
|
$3.76 | ||
|
Unavailable |
|||
