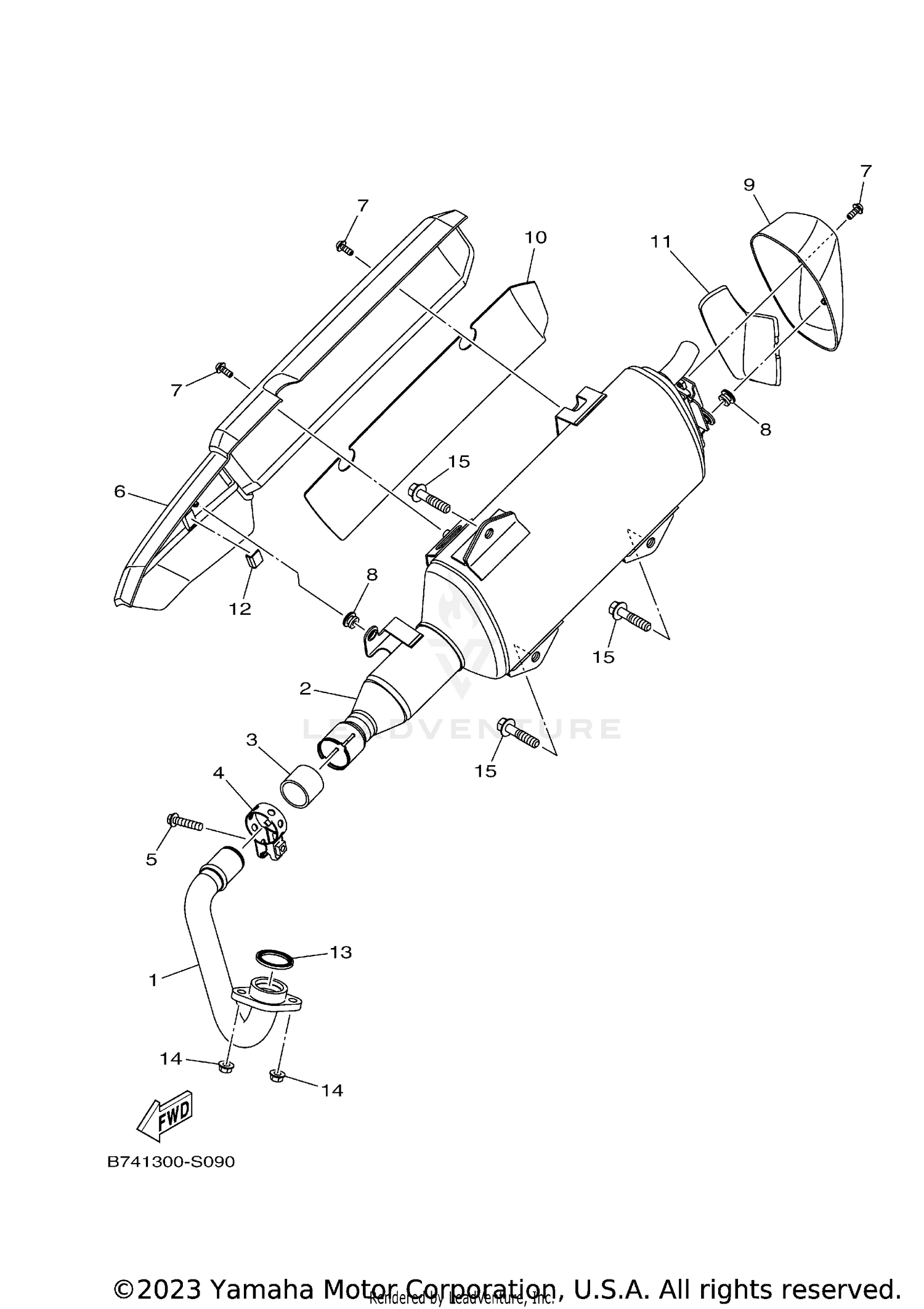

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
B74-E4611-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MUFFLER 1
B74-E4711-00-00
|
$1,017.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, MUFFLER
54D-E4714-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND, MUFFLER
1WD-E4715-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-08035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, MUFFLER 1
B74-E4718-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,HEX. SOCKET BUTTON
90111-06807-00
Superseded by 90111-06015-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-10332-00
Superseded by 90480-10017-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP
B74-E4799-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT
B74-E475P-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT
B74-E476P-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT
B74-E477P-00-00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, EXHAUST PIPE
1WD-E4613-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, WITH WASHER
95702-08500-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WASHER BASED
95817-10045-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
