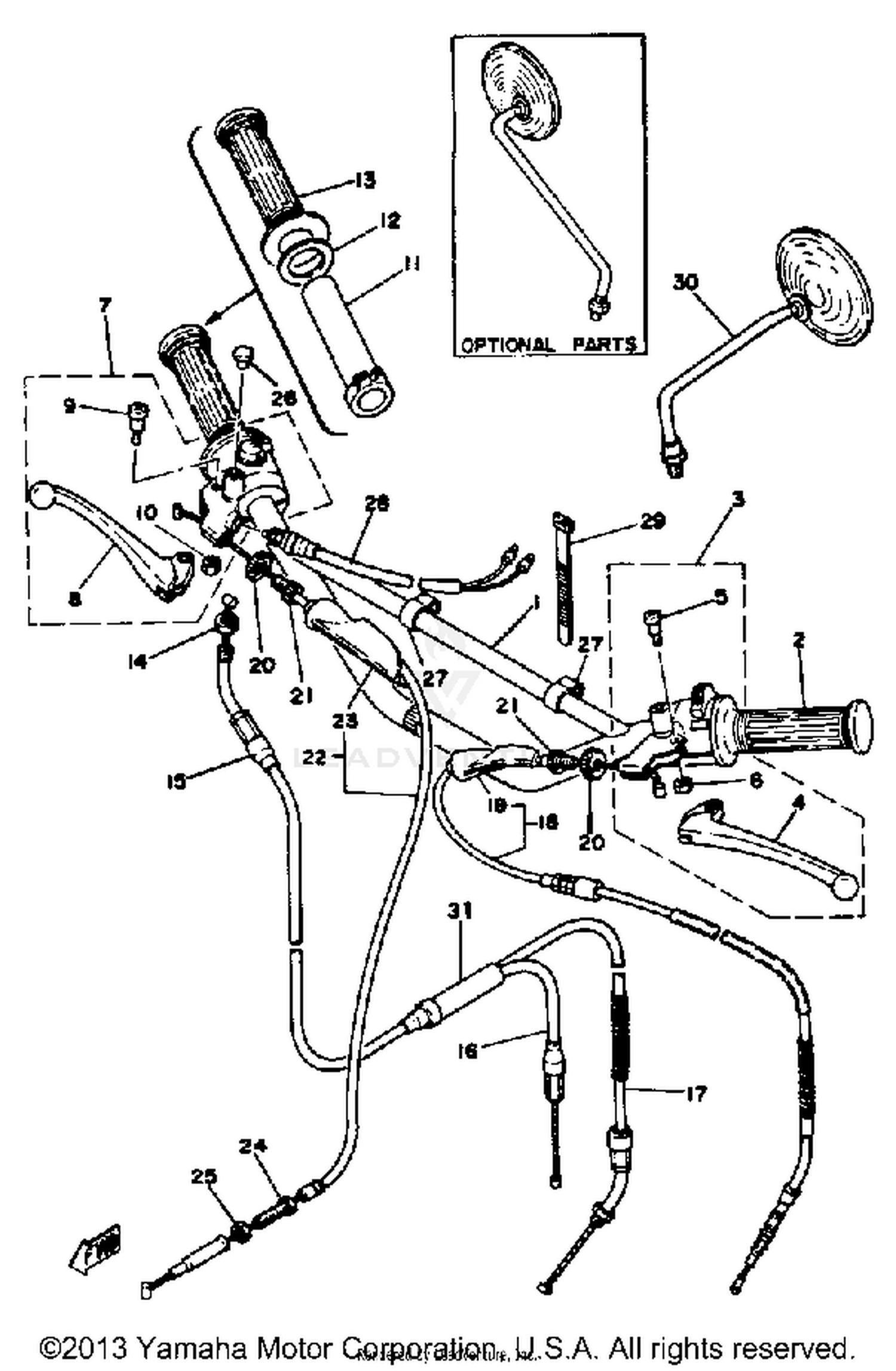

Handlebar Cable Dt100f Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1T9-26111-01-00
Superseded by 3M1-26111-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#2
GRIP LH (L.H.)
1E6-26241-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER HOLDER ASSEMBLY 1 (1T9-82
1T9-82910-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#4
LEVER L
137-83912-02-38
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, SPEC''L SHAPE
90149-05120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER HOLDER ASSEMBLY 2
1T9-82920-X0-00
|
$86.99 | ||
|
Unavailable |
|||
|
#8
LEVER R
2N3-83922-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, SPEC''L SHAPE
90149-05120-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Unavailable |
|||
|
#11
TUBE, THRTL GUIDE
1V1-26243-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE (1V1-26249-00)
90201-261L1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GRIP RH (R.H.)
1A0-26242-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
90170-10044-00
|
$1.65 | ||
|
Unavailable |
|||
|
#15
CABLE, THROTTLE 1
2F5-26311-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#16
CABLE, THROTTLE 2
1T9-26312-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#17
CABLE, PUMP
1T9-26321-00-00
Superseded by 1T9-26321-10-00
|
$37.99 | ||
|
Unavailable |
|||
|
#18
CABLE, CLUTCH
1T9-26335-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#19
COVER, HANDLE LEVER 1
382-26372-01-00
Superseded by 498-26372-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-08316-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE, BRAKE
3M1-26341-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#23
COVER, HANDLE LEVER 1
498-26372-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90123-06011-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SPEC''L SHAPE
90179-06143-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-07011-00
Superseded by 90338-07124-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-15064-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
FRONT STOP SWITCH AS
395-83980-00-00
Superseded by 395-83980-09-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
3MIRROR ASSEMBLY LH
266-26290-10-00
|
$18.49 | ||
|
Unavailable |
|||
|
#31
CONNECTOR, CABLE
214-26261-00-00
Superseded by 214-26261-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#
MIRROR ASSEMBLY RH
395-26290-00-00
|
$14.59 | ||
|
Unavailable |
|||
