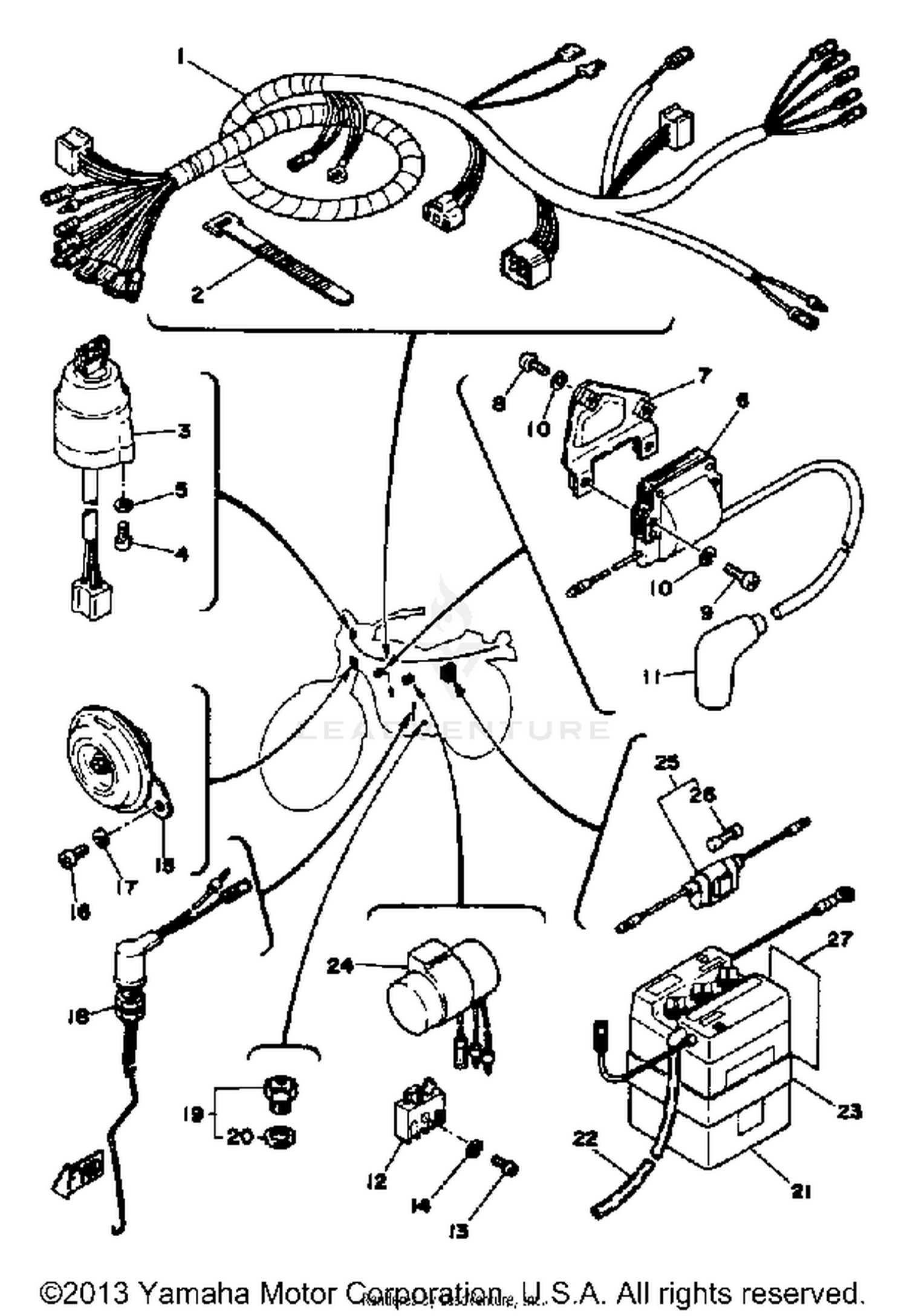

Electrical Dt100e E011001-f Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRE HARNESS ASSEMBLY
2F5-82590-50-00
|
$77.03 | ||
|
Unavailable |
|||
|
#2
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAIN SWITCH ASSY
1FE-82510-00-00
Superseded by 53C-82510-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSEMBLY
5G4-82310-40-00
Superseded by 355-82310-40-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, IGNITION COIL
336-82316-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RECTIFIER ASSY
353-81970-63-00
Superseded by 353-81970-M2-00
|
$12.49 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#15
HORN
2A7-83371-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#18
STOP SWITCH ASSEMBLY
2F5-82530-02-00
|
$26.99 | ||
|
Unavailable |
|||
|
#19
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
37R-82543-00-00
Superseded by 90201-12790-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
6N4-2A-2 GS BATTERY
BTG-6N42A-20-00
Superseded by 6N4-2A200-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE
90445-08172-00
|
$4.60 | ||
|
Unavailable |
|||
|
#23
BAND, BATTERY
214-82124-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
FLASHER RELAY ASSEMBLY
3BK-83350-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FLASHER RELAY ASSEMBLY
542-83350-60-00
|
$75.99 | ||
|
Unavailable |
|||
|
#25
FUSE HOLDER ASSY
55K-82150-01-00
Superseded by 55K-82150-02-00
|
$13.99 | ||
|
Unavailable |
|||
|
#26
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
