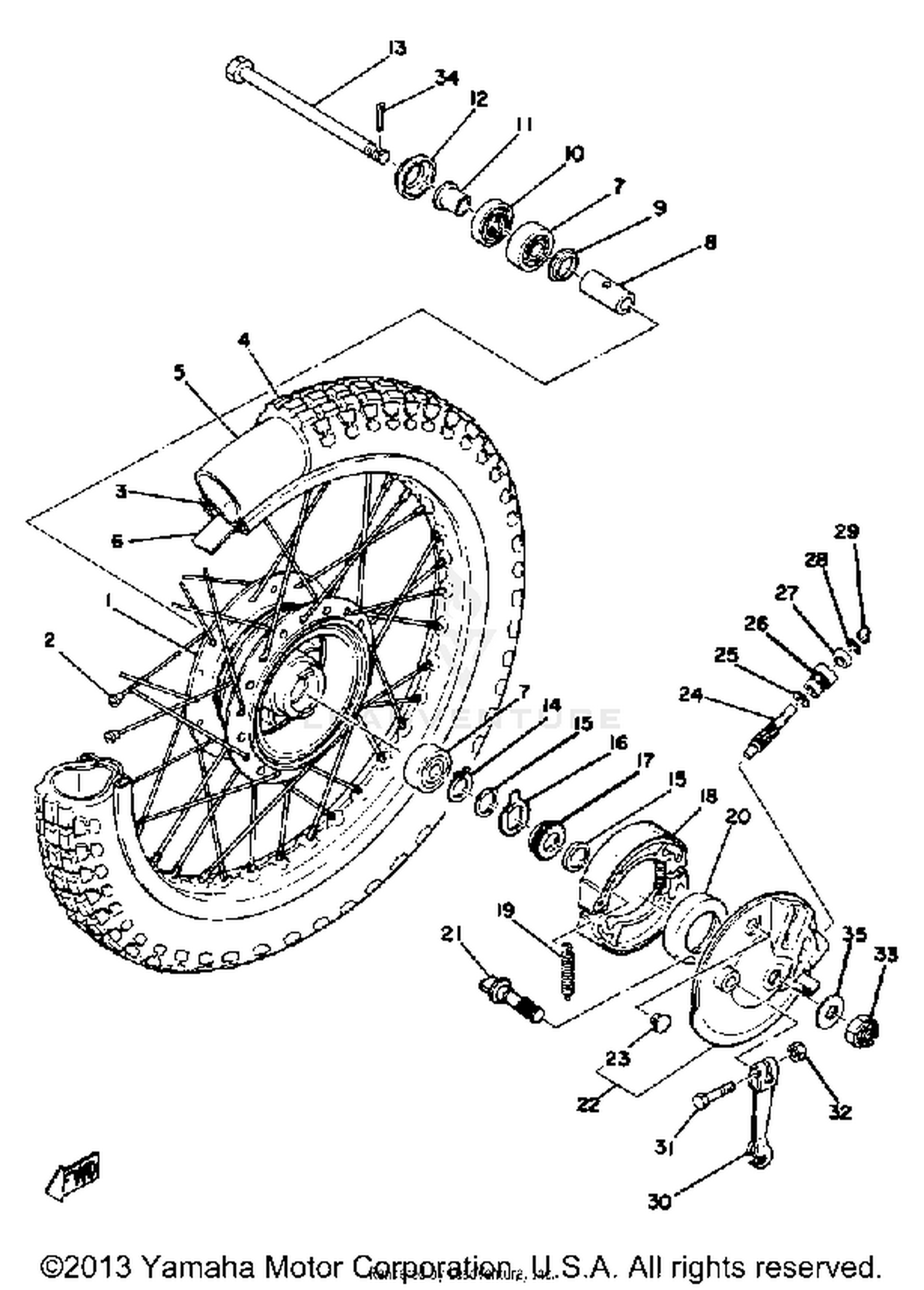

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-98
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, FRONT
276-25104-40-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE (2.50-18)
94125-18369-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE (2.50-18)
94225-18194-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM
94325-18059-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-12616-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, HUB DUST
481-25118-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, WITH HOLE
90102-12015-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, DRIVE
1T9-25135-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#18
BRAKE SHOE KIT
10X-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRAKE SHOE PLT ASSEMBLY
1T9-25016-01-98
|
$50.99 | ||
|
Unavailable |
|||
|
#
BRAKE SHOE PLT ASSEMBLY
1T9-25016-00-98
|
$31.53 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, METER
1T9-25138-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER, CAMSHAFT 1
5H0-25155-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CASTLE
95301-12900-00
Superseded by 90171-12058-00
|
$2.90 | ||
|
Unavailable |
|||
|
#34
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
