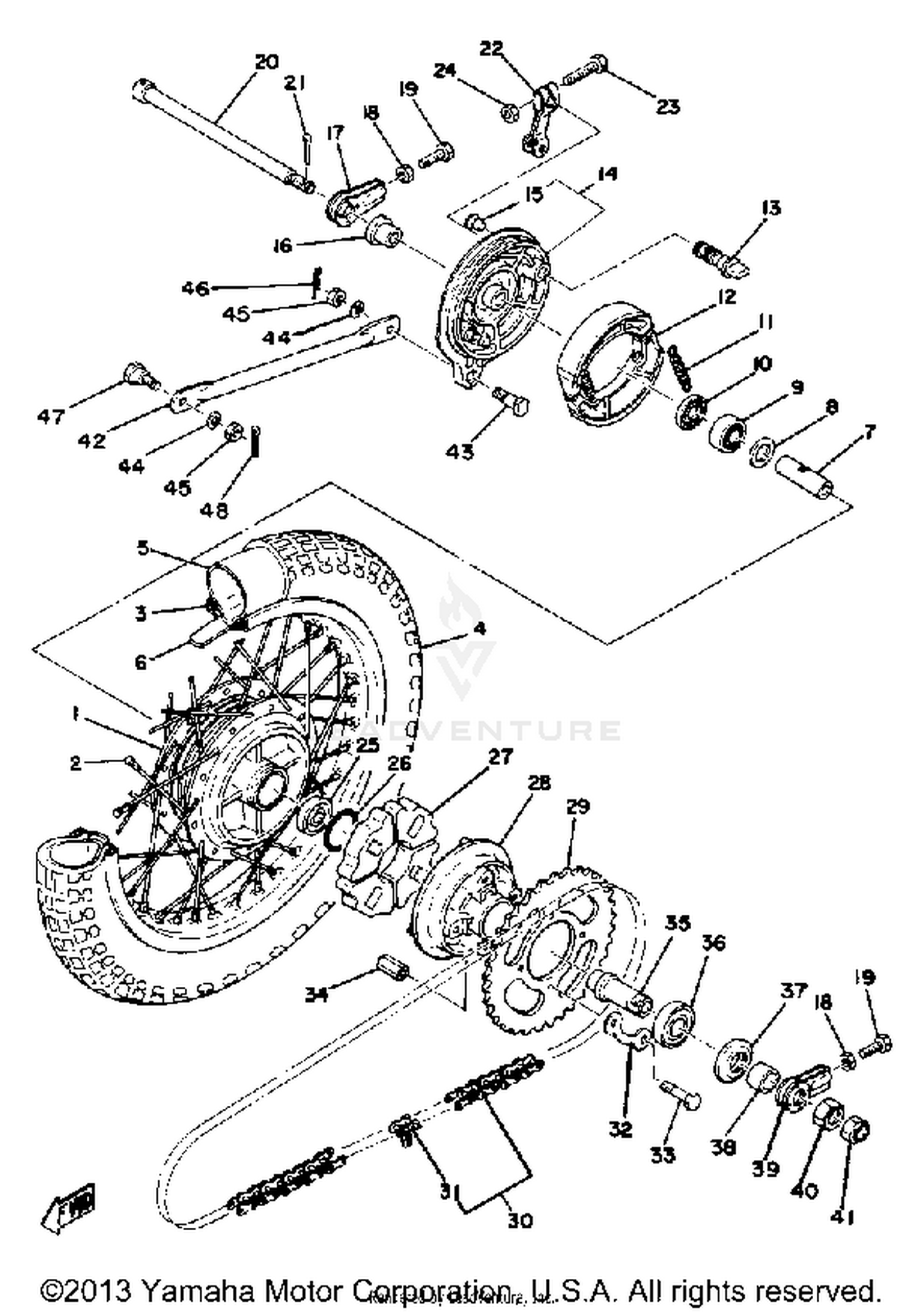

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
99999-02213-00
|
$251.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
538-25304-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM
94416-16008-00
Superseded by 94416-16002-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE (3.00-16)
94130-16368-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
TUBE (3.00-16)
94230-16075-00
|
$18.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (1.60-16)
94330-16058-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12145-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-21016-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE SHOE KIT
10X-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE PLT ASSEMBLY
355-25026-00-98
|
$63.99 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-12102-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PULLER, CHAIN 2
241-25389-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-06016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXLE, WHEEL
390-25381-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#21
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, CAMSHAFT
1T9-25355-00-00
Superseded by 5DV-25355-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#25
BEARING
93306-30101-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-41041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER
304-25364-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLUTCH, HUB
296-25366-01-98
Superseded by 296-25366-01-33
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPROCKET, DRVN47T (1T9-25446-10
4U5-25447-10-00
|
$28.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRVN 44T (1T9-25444-1
283-25444-10-00
|
$36.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN (45
283-25445-10-00
Superseded by 283-25445-11-00
|
$25.21 | ||
|
Unavailable |
|||
|
#30
CHAIN, DRIVE
94500-03102-00
Superseded by 9Y580-52101-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
JOINT, CHAIN
94600-03001-00
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90101-08672-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SPEC''L SHAPE (30)
90179-08639-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
AXLE, SPROCKET
167-25387-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL
93106-30004-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-18144-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PULLER, CHAIN 1
241-25388-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
90170-18165-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BAR, TENSION
1T9-25371-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#43
BOLT
90109-08183-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
