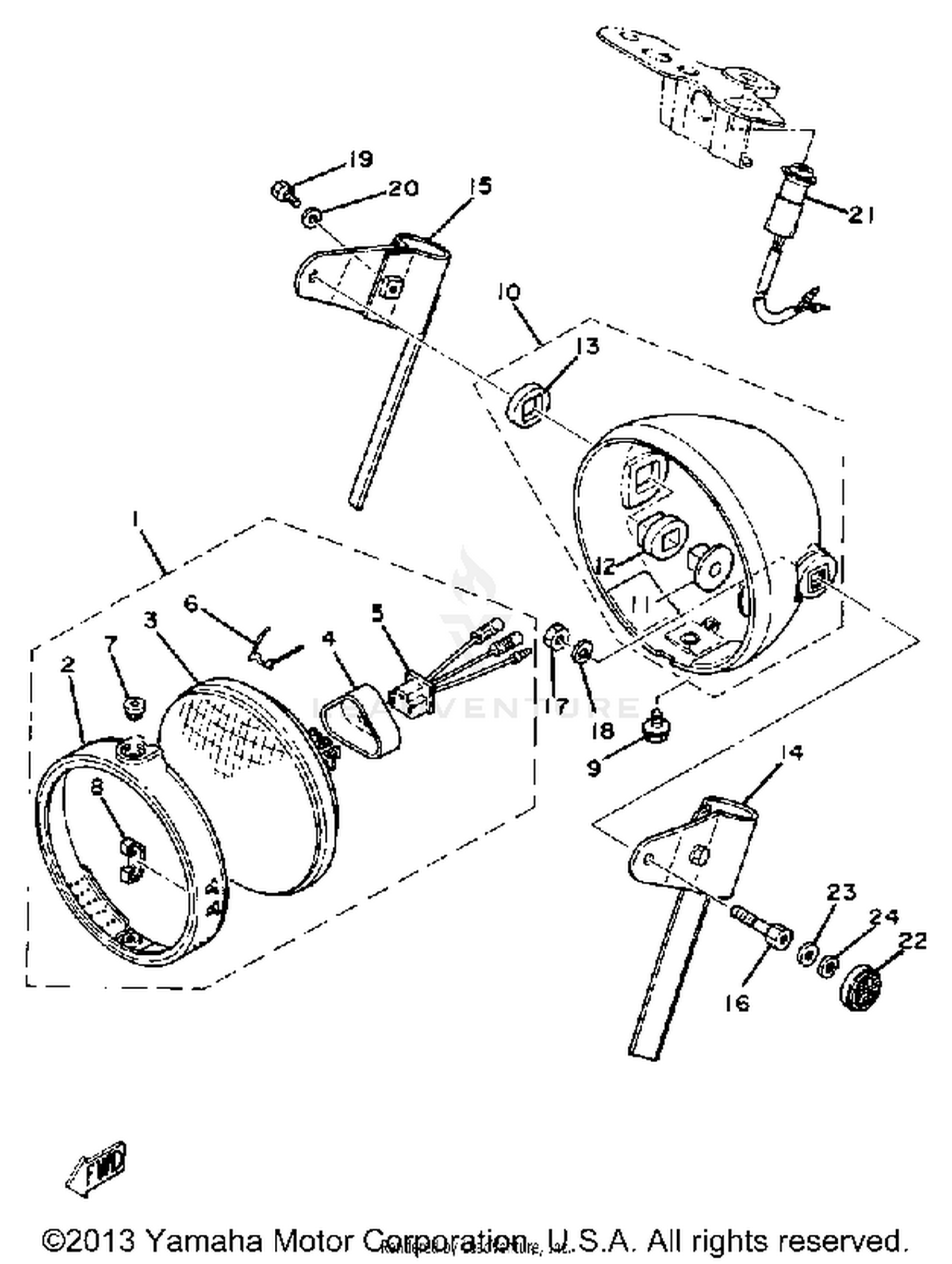

Headlight Dt100g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
1M1-84110-61-00
|
$23.35 | ||
|
Unavailable |
|||
|
#2
RING, RETAINING
1M1-84195-61-00
Superseded by 3J0-84195-60-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSEMBLY
498-84120-61-00
|
$88.99 | ||
|
Unavailable |
|||
|
#4
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#5
SOCKET
371-84312-60-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SET
1M1-84124-60-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SCREW
1M1-84133-60-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
498-84128-60-00
|
$21.59 | ||
|
Unavailable |
|||
|
#9
BOLT, SPECIAL
1M1-84137-60-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY ASSEMBLY, HEADLIGHT (1M1-8
1M1-84130-60-00
|
$123.99 | ||
|
Unavailable |
|||
|
#11
COLLAR, BODY FITTING
498-84145-60-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
498-84163-60-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
1M1-84164-60-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, HEADLIGHT 1
1T9-84118-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
STAY, HEADLIGHT 2
1T9-84119-01-00
|
$38.99 | ||
|
Unavailable |
|||
|
#16
BOLT
90109-08448-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
PILOT LIGHT ASSEMBLY
1T9-84101-60-00
|
$24.95 | ||
|
Unavailable |
|||
|
#22
REFLECTOR, FRONT 1
355-85111-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
