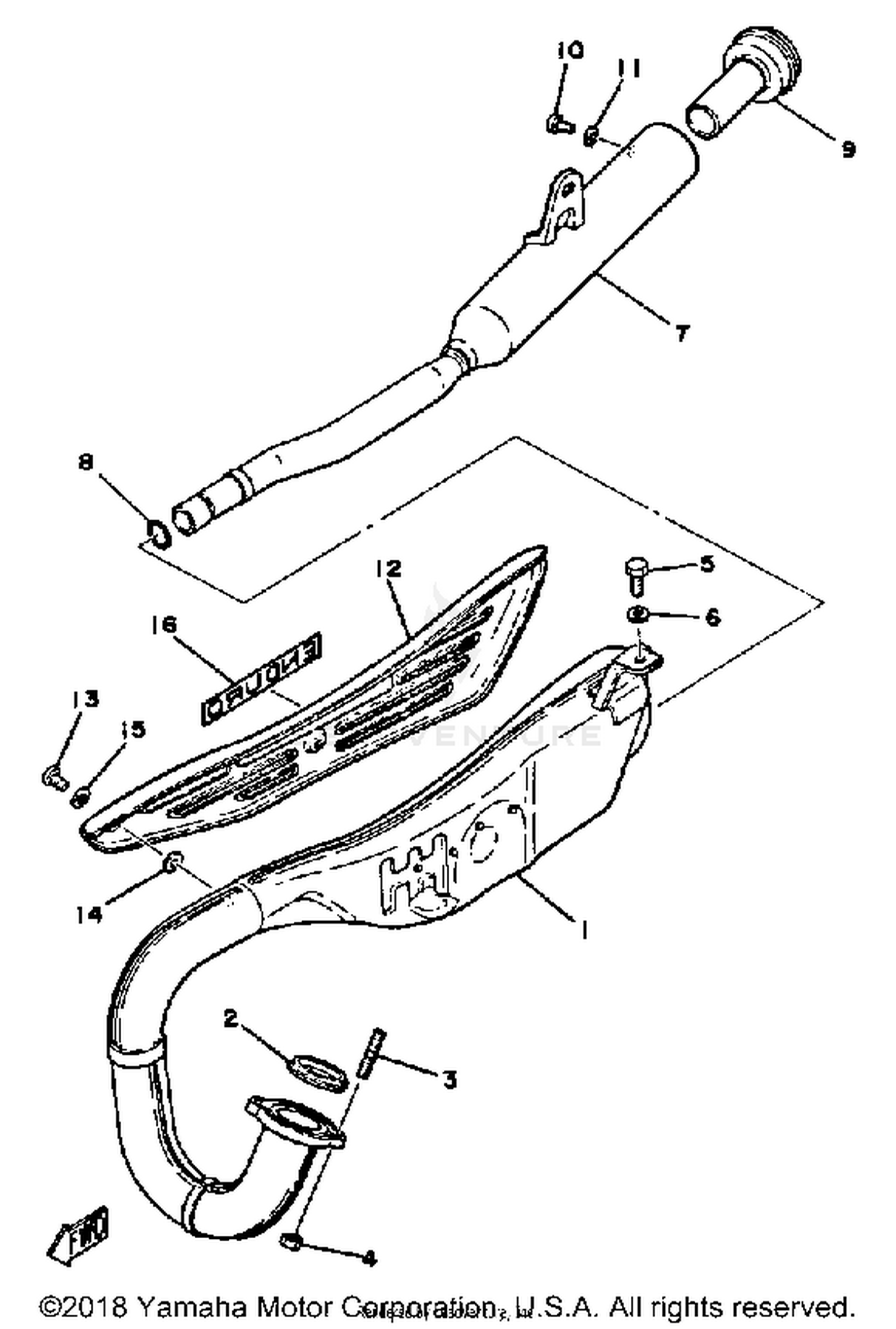

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY 1
3UL-14610-00-00
Superseded by 3UL-14610-01-00
|
$236.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
90116-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SILENCER, EXHAUST
1T9-14753-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#8
O-RING
93210-16290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, OUTLET
438-14752-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, MUFF 1
1T9-14718-00-36
|
$66.99 | ||
|
Unavailable |
|||
|
#12
PROTECTOR, MUFF 1
1T9-14718-00-26
|
$19.99 | ||
|
Unavailable |
|||
|
#12
PROTECTOR, MUFF 1
1T9-14718-00-20
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM, PROTECTOR
2F5-14729-01-00
|
$4.56 | ||
|
Unavailable |
|||
