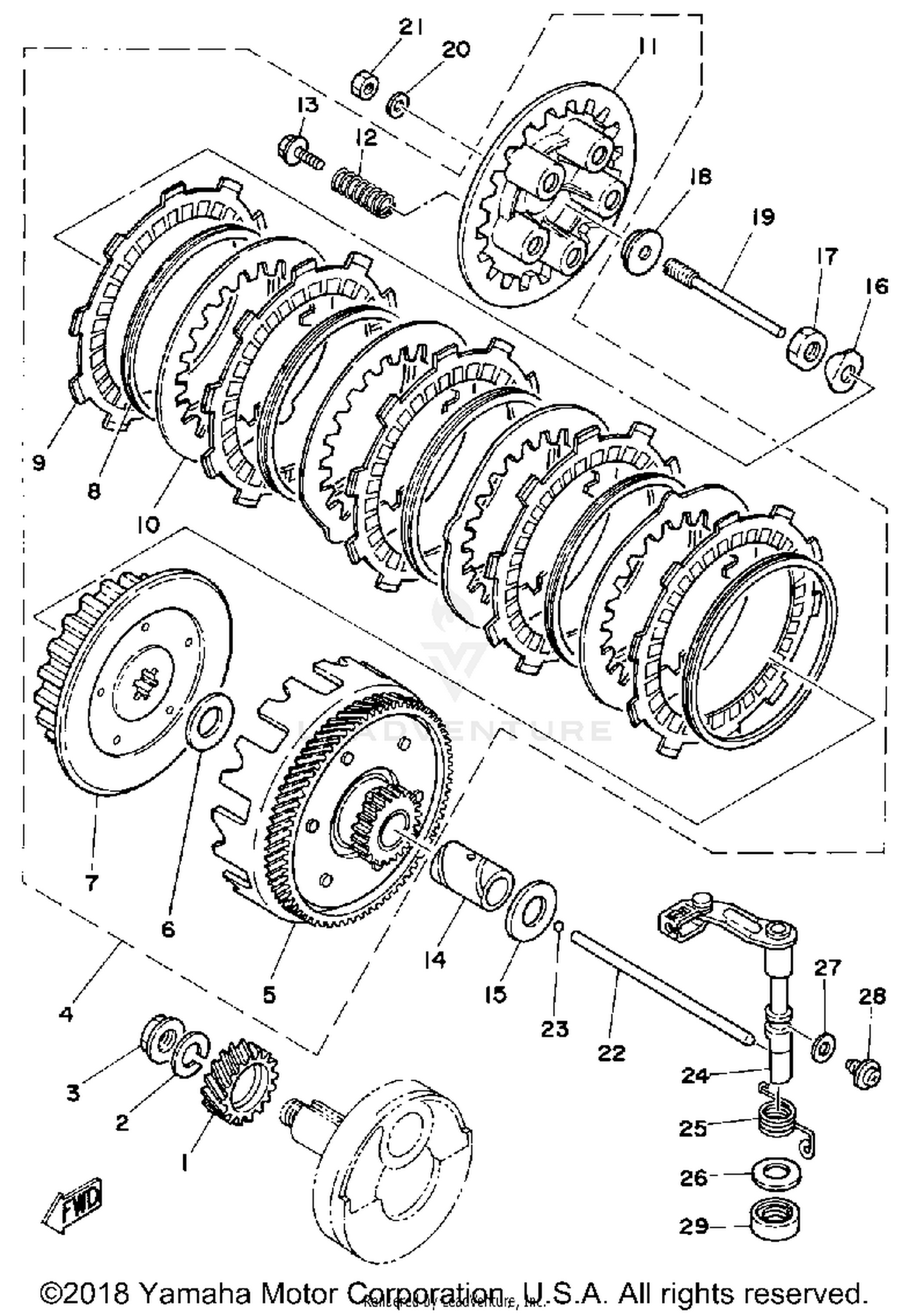

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR,PRI DRIVE
2A6-16111-00-00
Superseded by 4FU-16111-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, SPRING
90204-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSEMBLY
3J0-16300-00-00
|
$97.29 | ||
|
Unavailable |
|||
|
#5
PRIMARY DRIVEN GEAR COMP. (71T)
1W1-16150-01-00
|
$265.99 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
1J4-16371-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#8
RING, CUSHION
307-16367-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#9
PLATE, FRICTION
559-16321-01-00
Superseded by 36X-16321-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 1
2A6-16324-00-00
Superseded by 2A6-16324-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#11
PLATE, PRESSURE 1
2A6-16351-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#12
SPRING, COMPRESSION
90501-20474-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-05011-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER
90560-17147-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
WASHER, LOCK
90215-14204-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, PUSH
30X-16358-00-00
Superseded by 1W1-16358-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 1
1W1-16356-02-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 2
2X3-16357-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
PUSH LEVER ASSEMBLY
2X3-16380-01-00
|
$85.99 | ||
|
Unavailable |
|||
|
#25
SPRING, TORSION
90508-20345-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-14217-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90430-08069-00
Superseded by 90430-08204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, SPECIAL SHAPE
90149-08108-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93104-14059-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
