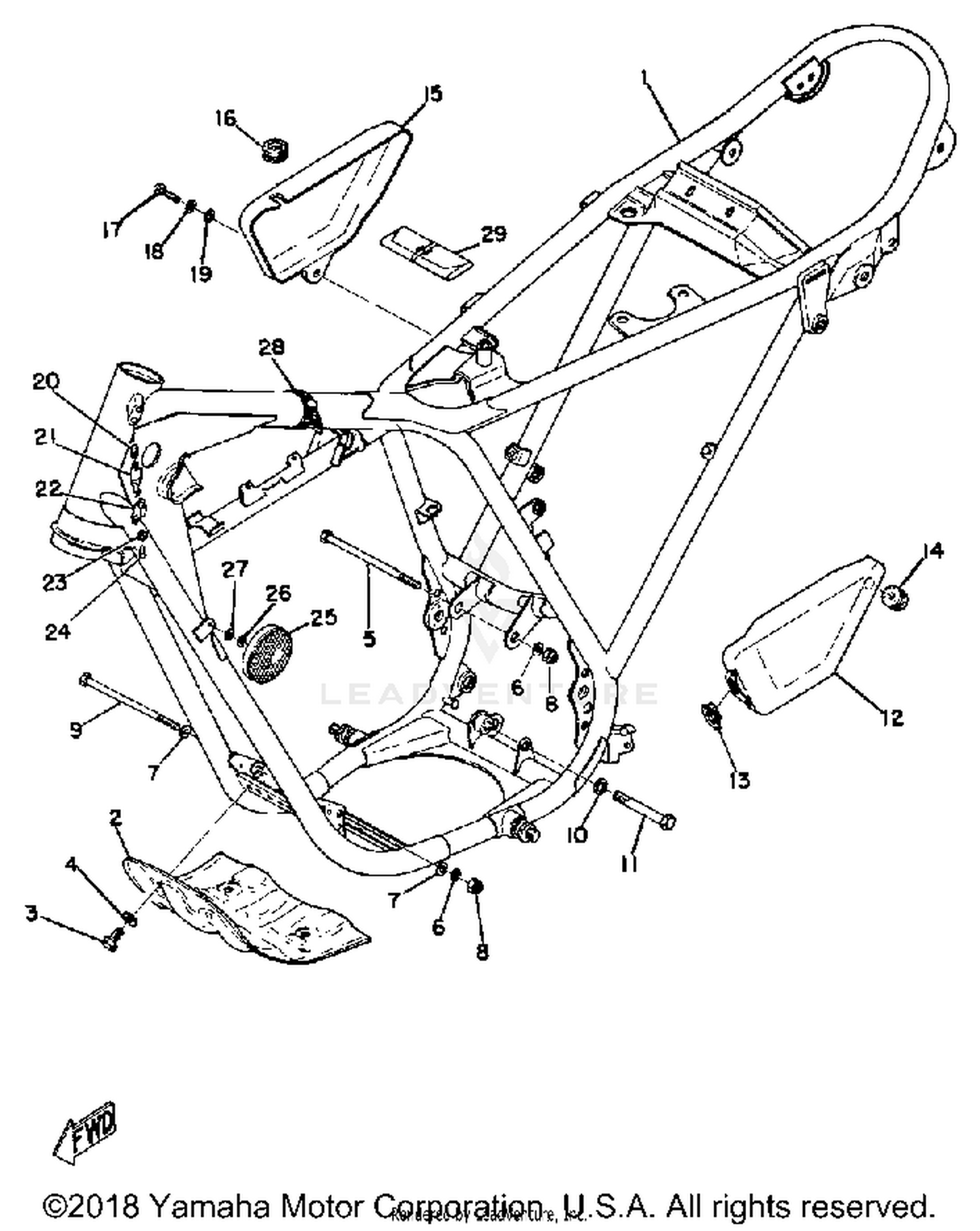

Frame - Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
443-21110-20-33
|
$246.99 | ||
|
Unavailable |
|||
|
#2
PROTECTOR, ENGINE
401-21471-00-90
|
$26.99 | ||
|
Unavailable |
|||
|
#3
BOLT (661)
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WASHER BASED (90105-08022
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPEC''L SHAP
90209-08050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-08024-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Unavailable |
|||
|
#12
SIDE COVER ASSEMBLY 1
437-21710-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#13
DAMPER
437-21717-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, SIDE 2
437-21721-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-12053-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
|
#20
SPRING, CONICAL (214-23485-00)
90502-08005-00
|
$5.99 | ||
|
Unavailable |
|||
|
#21
STEERING LOCK ASSEMBLY (214-234
341-23408-01-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, HANDLE LOCK
134-23484-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, WAVE (214-23488-00)
90206-04003-00
|
$8.49 | ||
|
Unavailable |
|||
|
#24
RIVET
90269-04003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOOL KIT
315-W2810-10-00
|
$42.99 | ||
|
Unavailable |
|||
