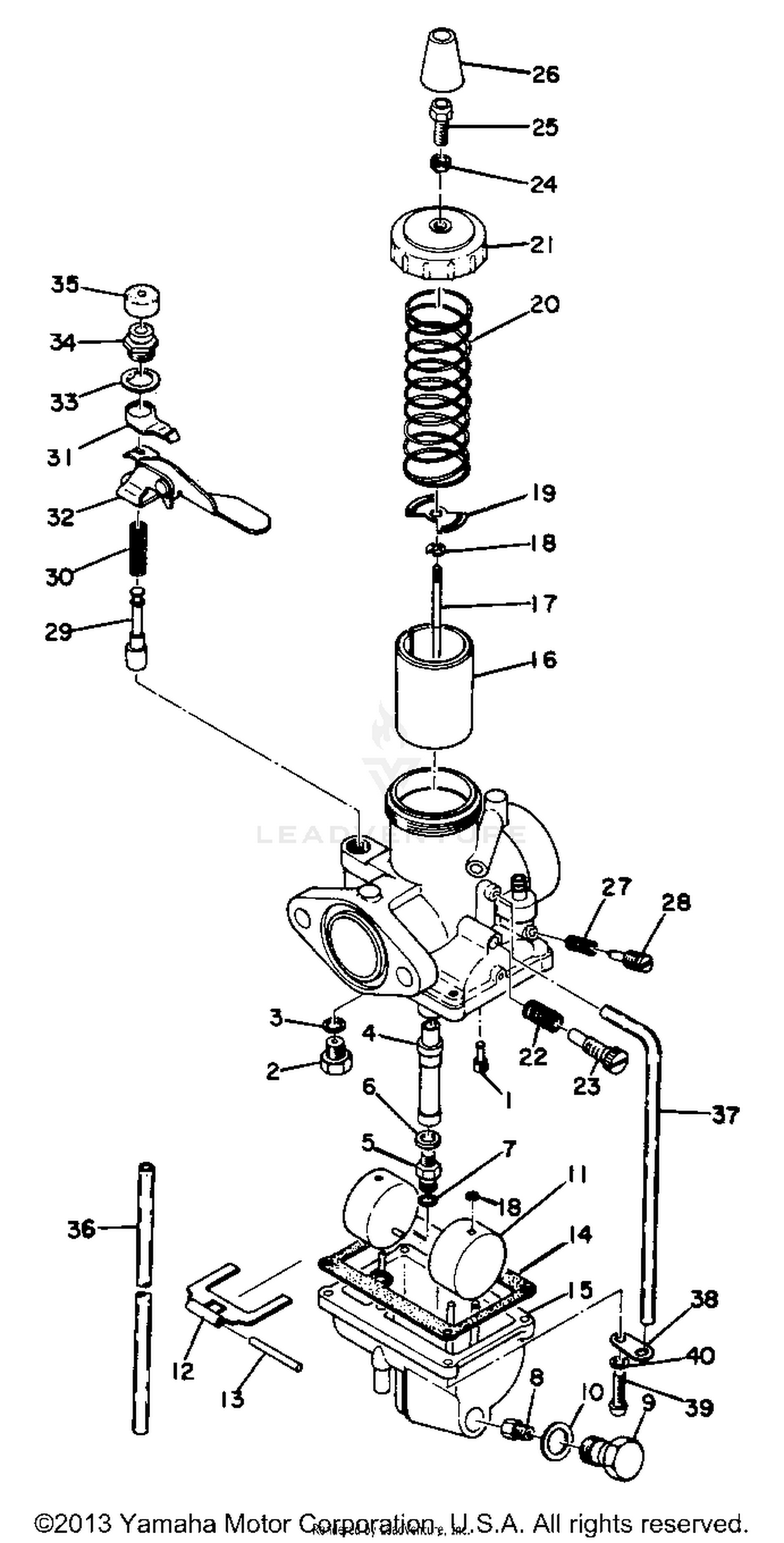

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT 35
193-14142-35-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT (#80)
193-14142-80-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
214-14101-61-00
|
$140.99 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSEMBLY 1
292-14101-60-00
|
$99.99 | ||
|
Unavailable |
|||
|
#2
NEEDLE VALVE ASSEMBLY
285-14190-25-00
|
$23.99 | ||
|
Unavailable |
|||
|
#
VALVE, SEAT ASSY
168-14190-20-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, NEEDLE VALVE
214-14195-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NOZZLE, MAIN
145-14141-32-00
|
$5.60 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
145-14141-34-00
|
$3.95 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
214-14141-32-00
|
$17.38 | ||
|
Unavailable |
|||
|
#5
SETTER, NEEDLE JET
214-14145-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#6
WASHER, MAIN JET
137-14153-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
214-14147-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
JET, MAIN #150
137-14143-32-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#200)
137-14143-40-A1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, BANJO
214-14166-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#10
GASKET
286-14198-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLOAT
285-14185-00-00
|
$11.02 | ||
|
Unavailable |
|||
|
#
FLOAT
214-14185-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#12
ARM, FLOAT
214-14187-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#13
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FLOAT CHMBR
168-14184-00-00
Superseded by 500-14184-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY, FLOAT CHMBR 1
214-14181-12-00
|
$120.99 | ||
|
Unavailable |
|||
|
#
BODY, FLOAT CHMBR 1
285-14181-00-00
|
$15.12 | ||
|
Unavailable |
|||
|
#16
VALVE, THROTTLE 1
211-14112-35-00
|
$27.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
211-14112-25-00
|
$23.99 | ||
|
Unavailable |
|||
|
#17
NEEDLE
168-14116-01-00
|
$12.52 | ||
|
Unavailable |
|||
|
#
NEEDLE
168-14116-05-00
|
$5.24 | ||
|
Unavailable |
|||
|
#
NEEDLE
168-14116-07-00
|
$0.05 | ||
|
Unavailable |
|||
|
#18
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT, SPRING
214-14136-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#20
SPRING, THRTL VALVE
168-14131-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#21
TOP, MIXING CHAMBER
214-14158-01-00
|
$8.88 | ||
|
Unavailable |
|||
|
#22
SPRING, THROTTLE STOP
137-14133-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
THROTTLE SCREW SET
24X-14103-00-00
Superseded by 40T-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,CABLE ADJ
802-14161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE ADJUST SCREW SET
12G-14106-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
802-14169-00-00
Superseded by 8A7-14169-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
AIR SCREW SET
23X-14104-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUNGER, STARTER
132-14171-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, PLUNGER
156-14135-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, STARTER LEVER
170-14178-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#32
LEVER, STARTER 1
248-14175-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#33
WASHER, STARTER LVR
132-14179-00-00
|
$1.30 | ||
|
Unavailable |
|||
|
#34
CAP, PLUNGER
132-14174-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#35
COVER, PLUNGER CAP
132-14173-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE, AIR VENT
183-14197-01-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE (L200)
90445-05024-00
Superseded by 90445-05N13-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE
132-14146-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
