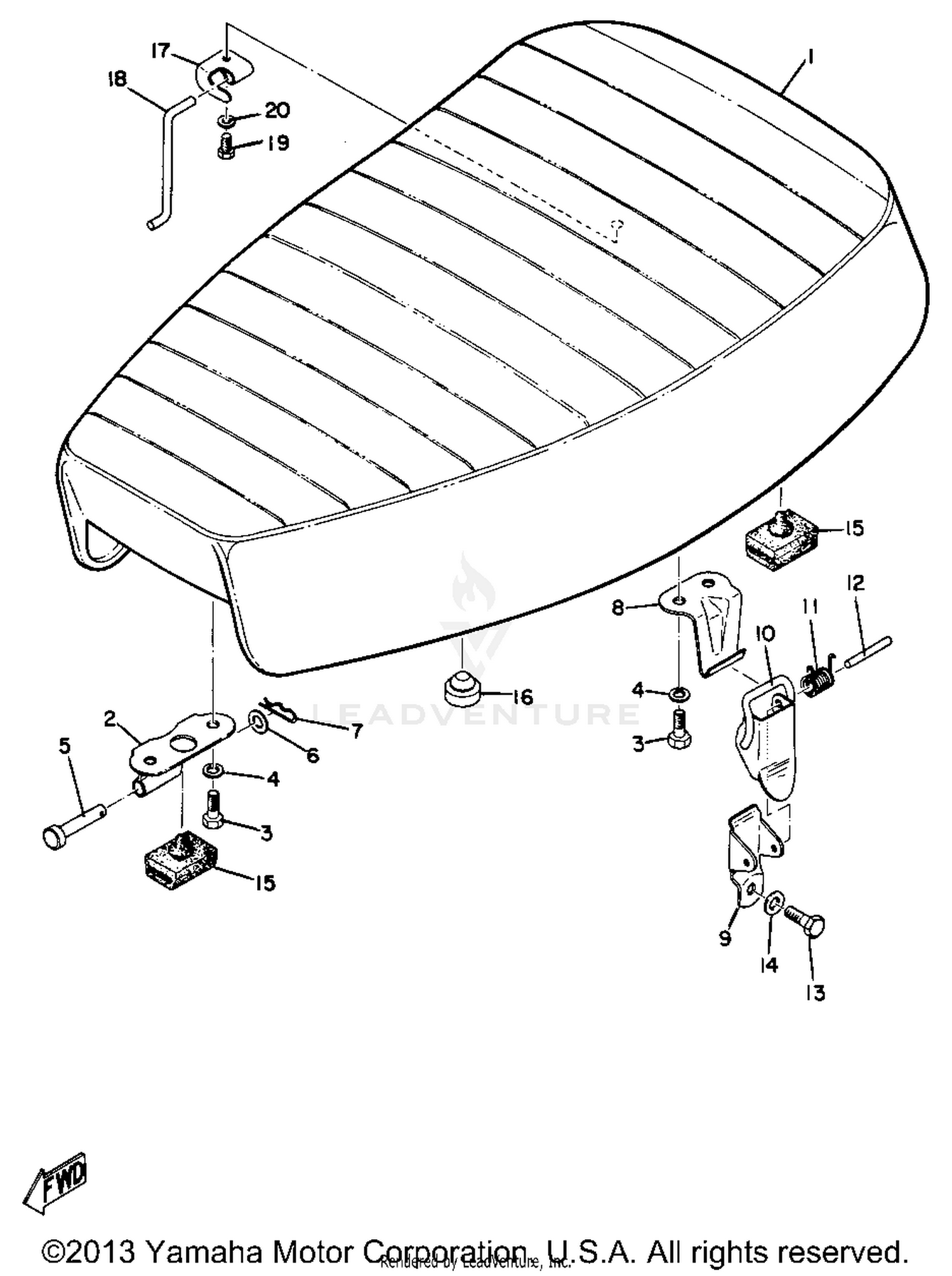

1971 Yamaha DT1E SEAT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSEMBLY
275-24710-00-00
|
$94.99 | ||
|
Unavailable |
|||
|
#
COVER, SINGLE SEAT
214-24711-00-00
|
$46.48 | ||
|
Unavailable |
|||
|
#2
HINGE, SEAT
214-24726-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#3
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, CLEVIS
91701-05055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90468-10050-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, SEAT
214-24728-00-33
|
$6.99 | ||
|
Unavailable |
|||
|
#9
BRACKET, SEAT
214-24718-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#10
LEVER, SEAT
214-24776-00-33
|
$32.99 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-10012-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
PIN, SPECL SHAPE
90249-04068-00
|
$2.80 | ||
|
Unavailable |
|||
|
#13
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, SEAT
214-24724-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER, MAIN STAND
116-27114-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, SEAT
278-24748-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#18
STOPPER
278-24768-00-00
|
$0.89 | ||
|
Unavailable |
|||
|
#19
BOLT
97013-06012-00
|
$4.75 | ||
|
Unavailable |
|||
|
#20
BOLT
97013-06012-00
|
$4.75 | ||
|
Unavailable |
|||
