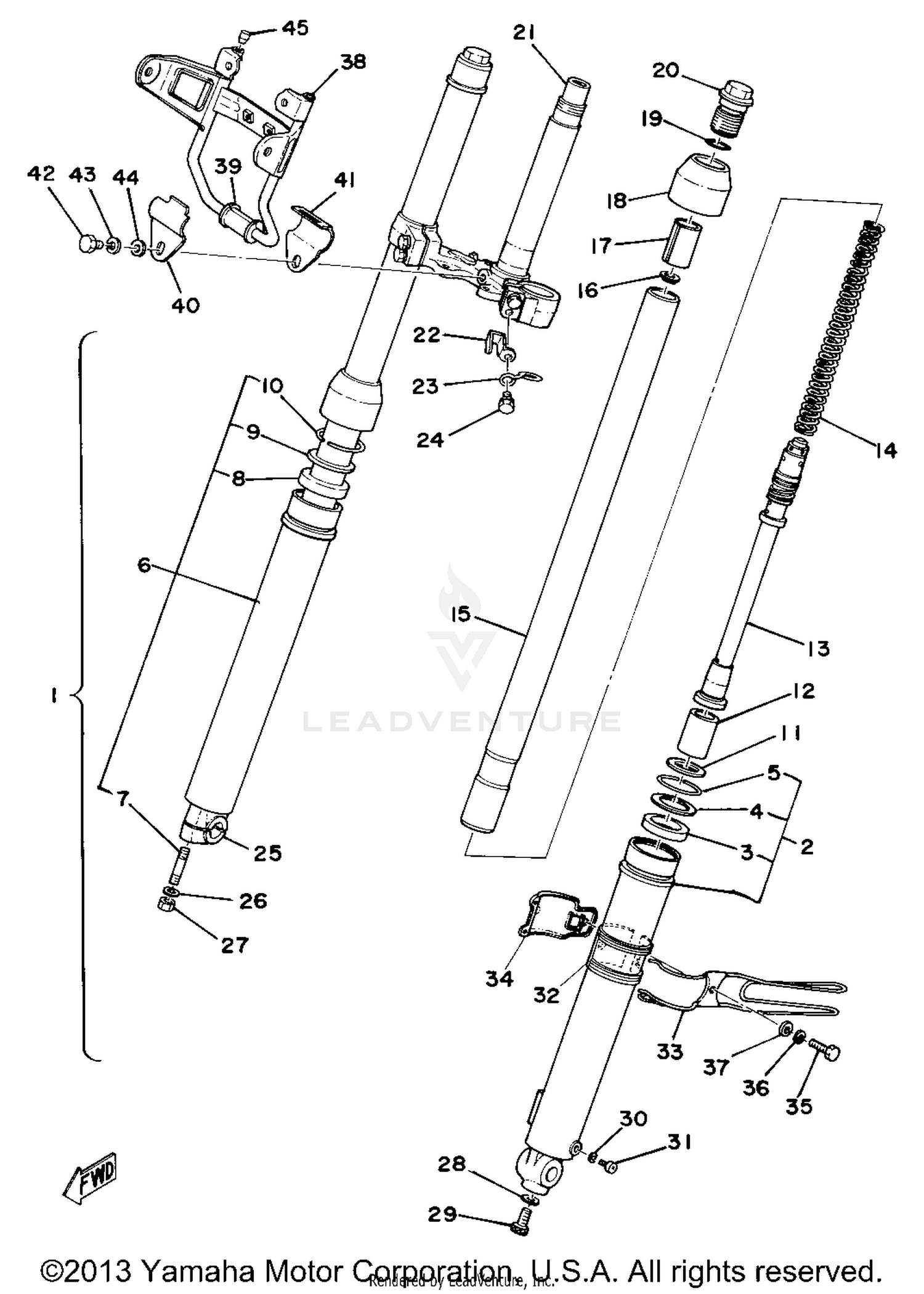

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1M1-23101-00-00
|
$300.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1M1-23126-00-00
|
$155.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
TUBE, OUTER 2
1M1-23136-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
584-23145-50-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#11
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
PISTON, FRONT FORK
509-23171-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#13
CYLINDER, FRONT FORK
1M1-23170-00-00
|
$83.70 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
1M1-23141-01-00
|
$16.10 | ||
|
Unavailable |
|||
|
#15
TUBE, INNER 1
1M1-23124-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
SPACER
33Y-23118-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#18
SEAL, DUST
584-23144-50-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#20
BOLT, CAP
366-23111-60-00
|
$39.99 | ||
|
Unavailable |
|||
|
#21
UNDER BRACKET
1M1-23340-00-33
|
$106.99 | ||
|
Unavailable |
|||
|
#22
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#23
CLIP
90468-20070-00
|
$0.80 | ||
|
Unavailable |
|||
|
#24
BOLT, W/WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEXAGON
90170-08176-00
|
$1.74 | ||
|
Unavailable |
|||
|
#28
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER 1
498-21541-01-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
HOLDER, CABLE 1
498-23318-01-00
|
$25.04 | ||
|
Unavailable |
|||
|
#34
HOLDER, CABLE 2
498-23319-01-00
|
$9.28 | ||
|
Unavailable |
|||
|
#35
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY, HEADLIGHT 1
1M1-84118-01-33
|
$26.68 | ||
|
Unavailable |
|||
|
#39
DAMPER
1M1-84163-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#40
BRACKET, LOWER 1
1M1-84181-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#41
BRACKET, LOWER 2
1M1-84182-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#42
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#44
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#45
PLUG
90339-05002-00
|
$0.89 | ||
|
Unavailable |
|||
