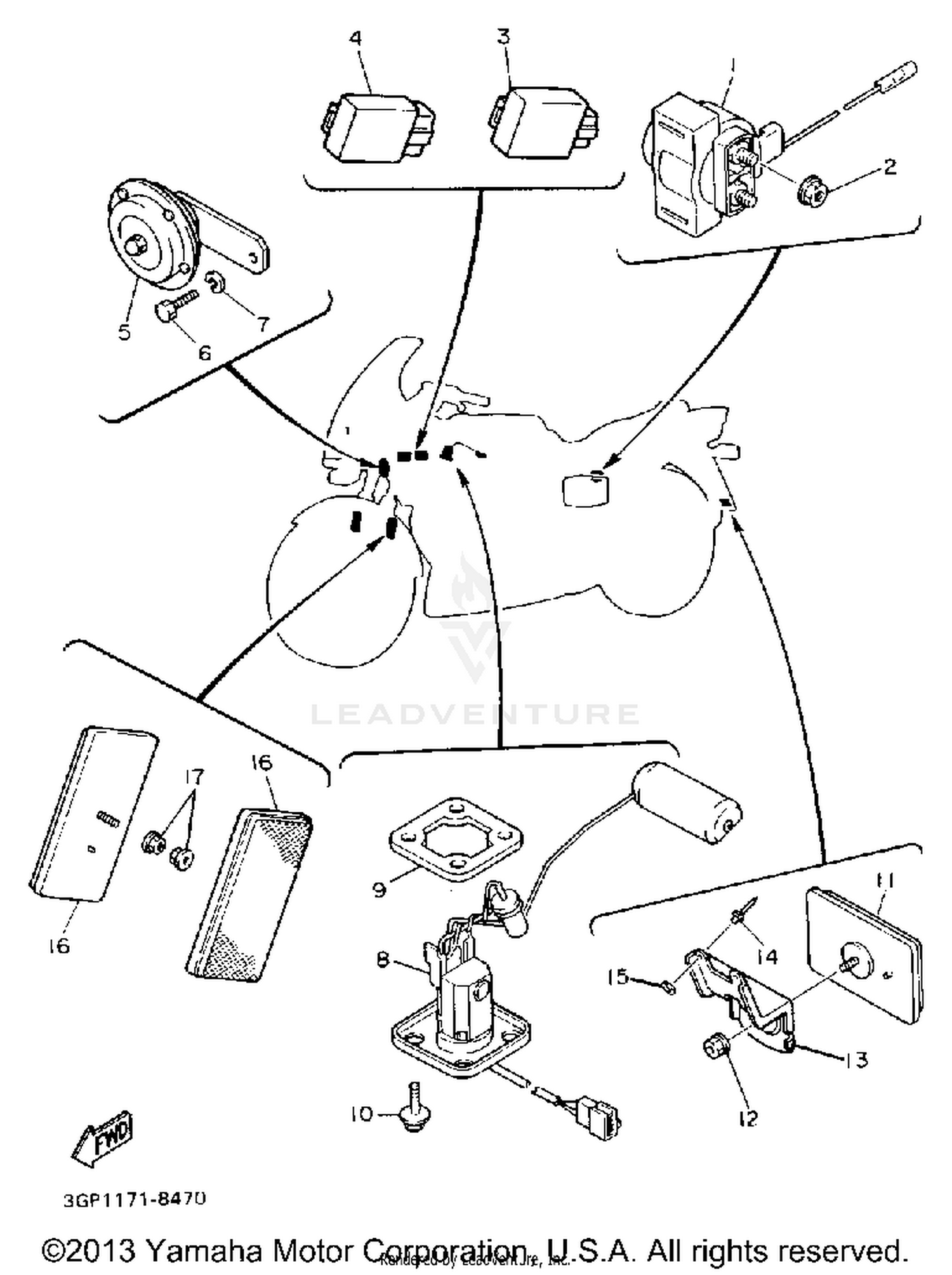

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER RELAY ASSY
36Y-81940-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
RELAY ASSY (G8R-30Y-A)
2UJ-81950-00-00
Superseded by 2UJ-81950-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#4
FLASHER RELAY ASSEMBLY
3YA-83350-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HORN
4V8-83371-20-00
|
$105.99 | ||
|
Unavailable |
|||
|
#6
BOLT
97016-08016-00
Superseded by 97017-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENDER UNIT ASSEMBLY, FUEL METE
36Y-85752-03-00
|
$114.99 | ||
|
Unavailable |
|||
|
#9
GASKET, SENDER UNIT
5G3-85753-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-05071-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
REAR REFLECTOR ASSY
3G1-85130-01-00
Superseded by 4KM-85130-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, REFLECTOR 1
47M-85132-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#14
RIVET, BLIND
90267-32070-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-03200-00
|
$0.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
REFLECTOR ASSY
11H-85110-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.99 | ||
|
Unavailable |
|||
