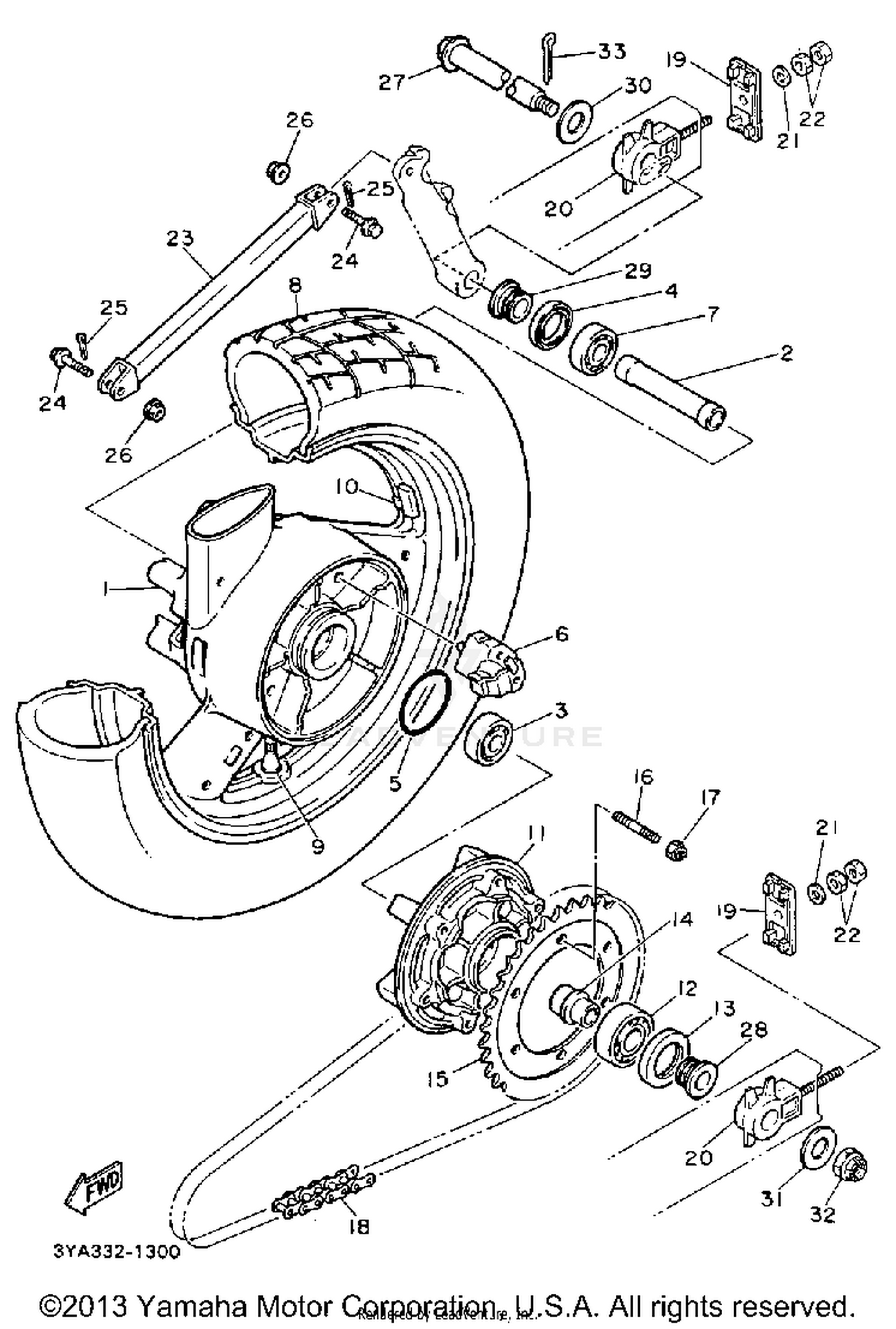

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
3CV-25338-00-WG
|
$500.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20339-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-30029-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-65752-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
2GH-25364-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30437-00
|
$61.99 | ||
|
Unavailable |
|||
|
#8
150/80V16V250K275D (150/80V16-V
94115-165X7-00
|
$191.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH, HUB
36Y-25366-01-00
|
$162.99 | ||
|
Unavailable |
|||
|
#12
BEARING
93306-30562-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93106-35030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, WHEEL
36Y-25377-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#15
SPROCKET, DRIVN 40T
1TX-25440-20-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-10485-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
95601-10200-00
Superseded by 90185-10170-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CHAIN
94580-94110-00
Superseded by 94581-78110-00
|
$312.99 | ||
|
Unavailable |
|||
|
#19
END 1
3HE-22174-00-00
Superseded by 4JH-22174-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PULLER, CHAIN 1
3XW-25388-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR, TENSION
36Y-25371-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE, WHEEL
36Y-25381-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#28
COLLAR
90387-203X0-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-202X9-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-200P6-00
|
$3.36 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-180P5-00
|
$3.36 | ||
|
Unavailable |
|||
|
#32
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#33
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
