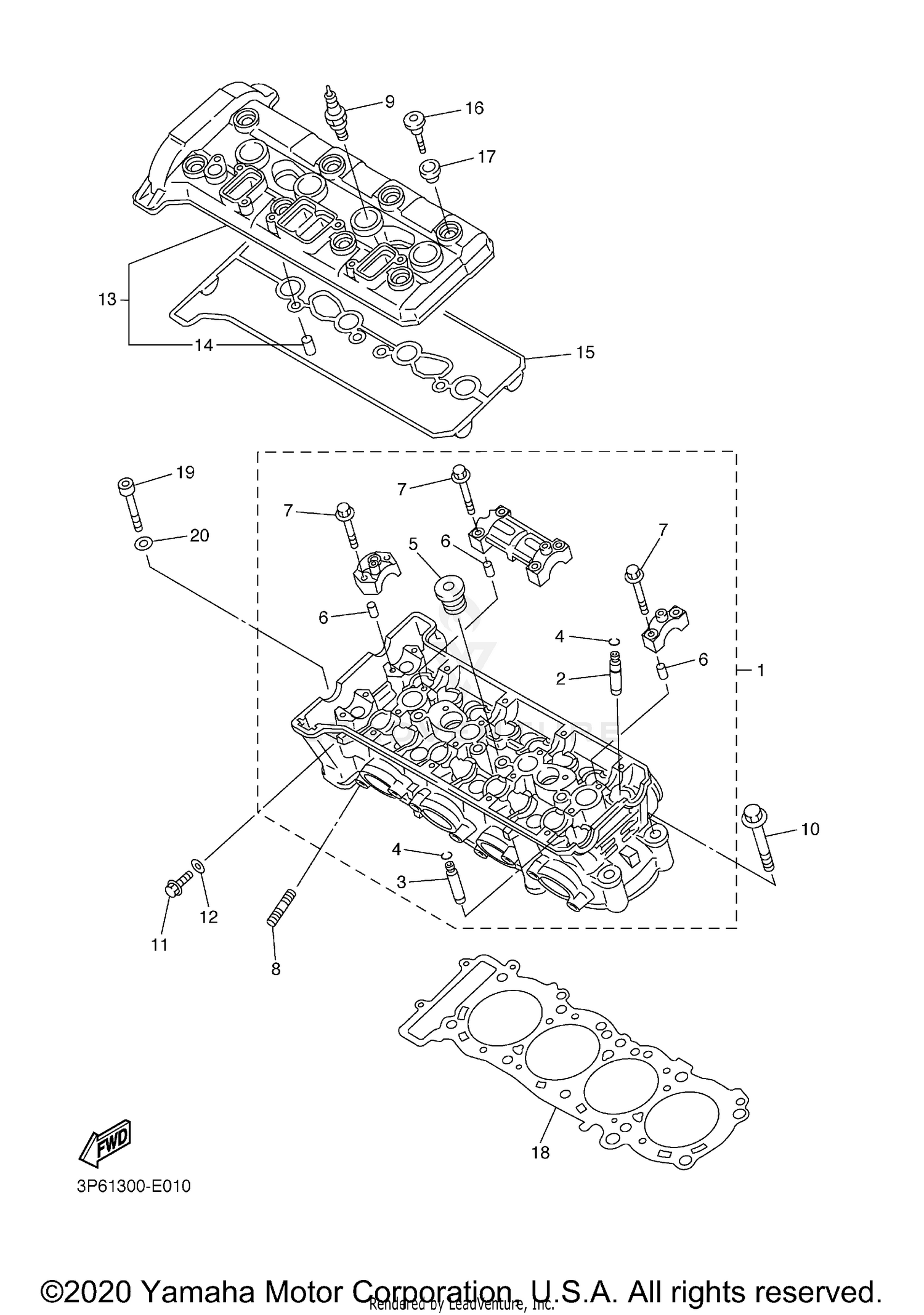

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
5JW-11102-00-00
Superseded by 5JW-11102-10-00
|
$1,557.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5JW-11133-10-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
3P6-11134-10-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-09141-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-27001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
95617-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, SPARK (NGK CR8E)
NGK-CR8E0-00-00
Superseded by CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH WASHER
90119-10004-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-08012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER HEAD 1
5JW-11191-01-00
|
$339.65 | ||
|
Unavailable |
|||
|
#14
PIN, DOWEL
91810-20001-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, HEAD COVER 1
5JW-11193-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-066F0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, MOUNT 1
4KG-1111G-00-00
Superseded by 5EA-1111G-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, CYLINDER HEAD 1
5JW-11181-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91317-06065-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06016-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
