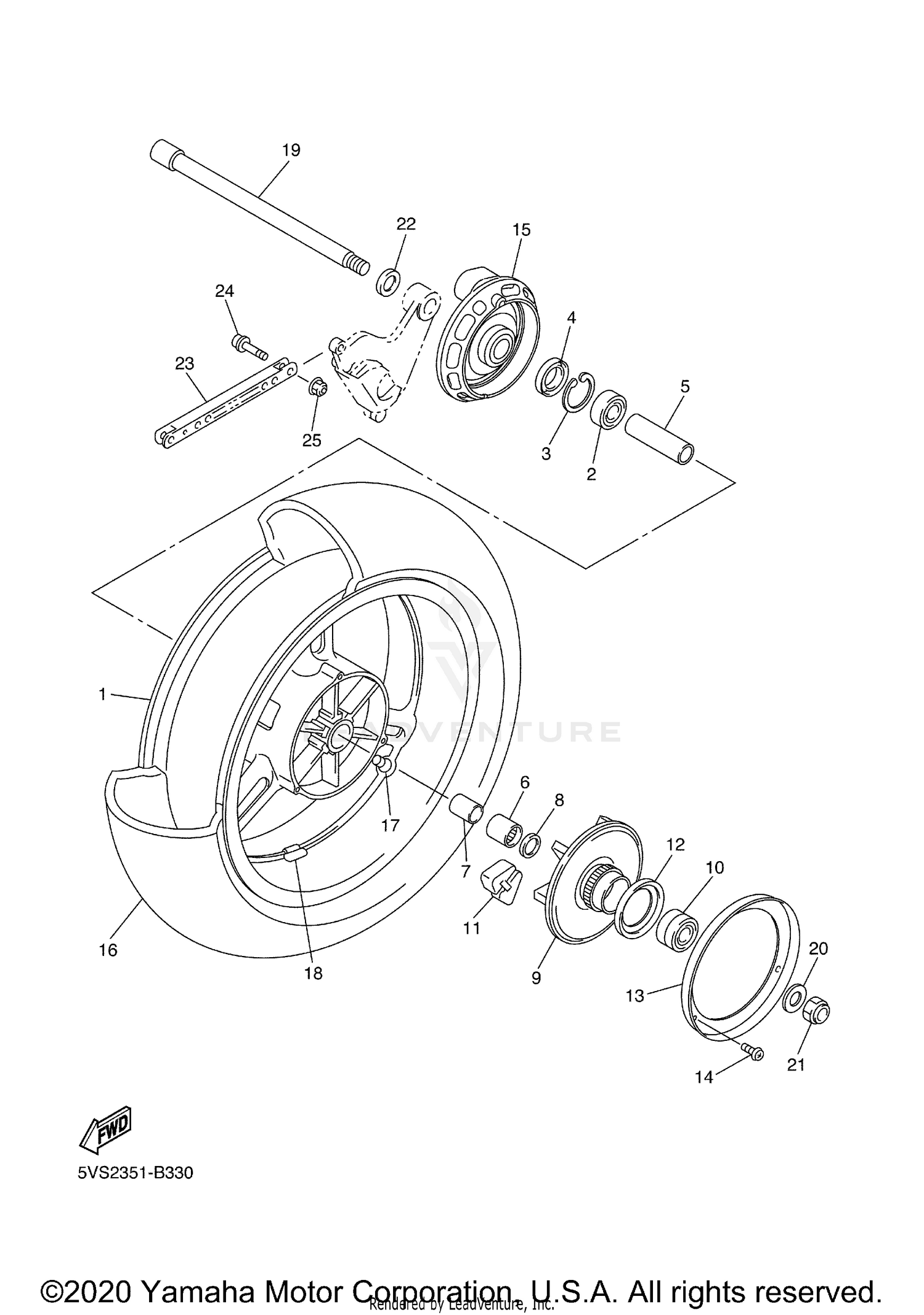

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
5VS-W2533-00-35
|
$634.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30446-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99009-52500-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-40367-00
Superseded by 93106-40027-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, BEARING
5JW-25317-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-42592-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, WHEEL
5JW-25383-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93101-25104-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH, HUB
5JW-25366-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20480-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
5JW-25364-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, HUB DUST
5JW-25319-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, PLATE
5JW-25327-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98507-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOUSING, SENSOR REAR
5VS-2537A-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE (180/55ZR17M/C 73W BTO20R)
94118-17020-00
|
$230.99 | ||
|
Unavailable |
|||
|
#17
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, WHEEL
5JW-25381-00-00
Superseded by 5JW-25381-10-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-181U5-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCKING
90185-18167-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
92903-20600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAR, TENSION
5JW-25371-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-08007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCKING
95607-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
