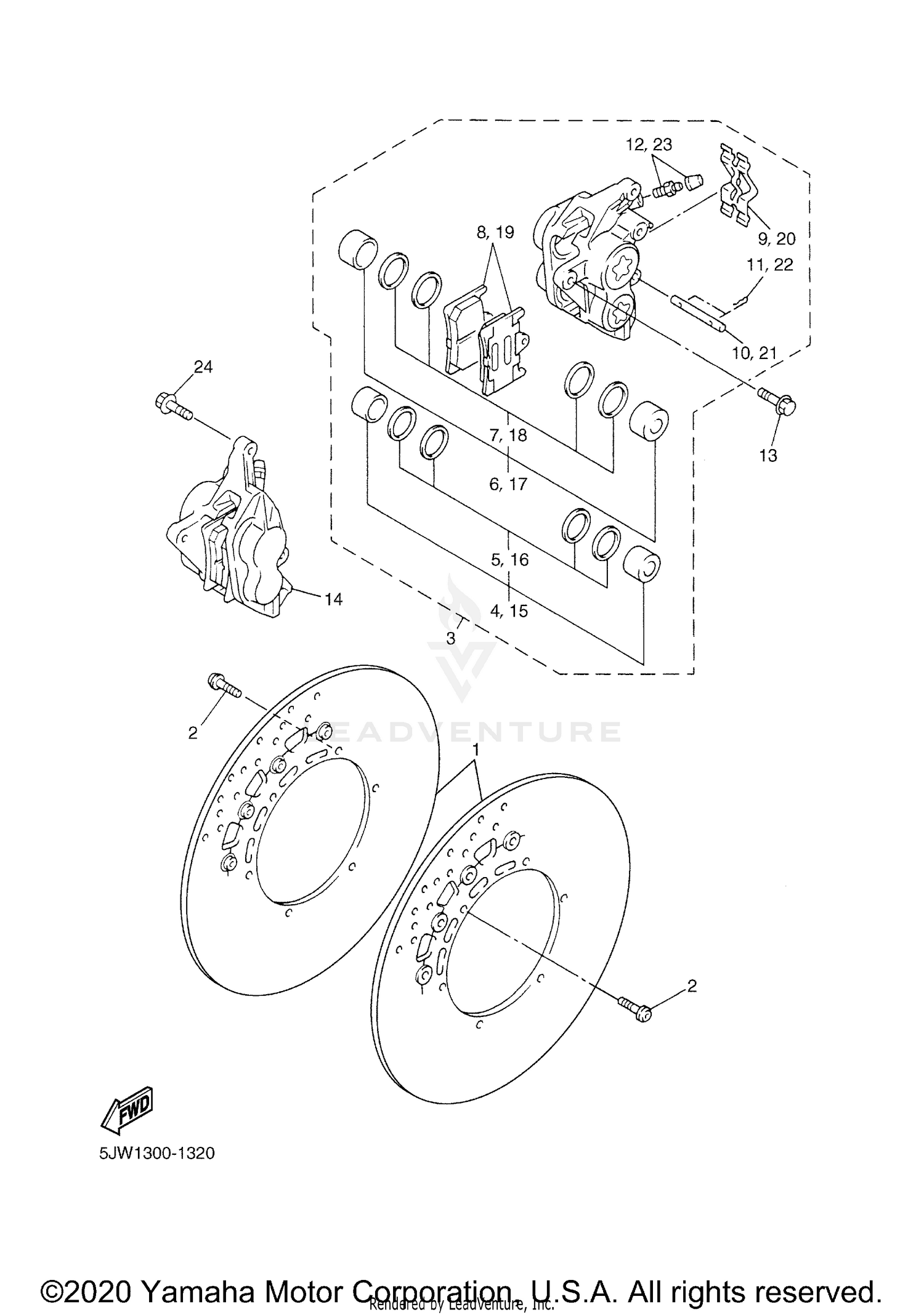

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
4SV-2581T-00-00
Superseded by 4SV-2581T-01-00
|
$314.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-064G6-00
Superseded by 90109-06254-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
5JJ-2580T-00-00
|
$452.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
4SV-W0057-00-00
Superseded by 4SV-25802-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3MA-W0047-10-00
Superseded by 3MA-25803-10-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
4SV-W0057-10-00
Superseded by 4SV-25802-10-00
|
$188.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3GM-W0047-10-00
Superseded by 3GM-25803-10-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
5JJ-W0045-00-00
Superseded by 5JJ-25805-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
4SV-25919-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PAD
4SV-25924-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
3GM-25925-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-105A7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CALIPER ASSY (RIGHT)
5JJ-2580U-00-00
|
$596.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON ASSY, CALIPER
4SV-W0057-00-00
Superseded by 4SV-25802-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#16
CALIPER SEAL KIT
3MA-W0047-10-00
Superseded by 3MA-25803-10-00
|
$52.99 | ||
|
Unavailable |
|||
|
#17
PISTON ASSY, CALIPER
4SV-W0057-10-00
Superseded by 4SV-25802-10-00
|
$188.99 | ||
|
Unavailable |
|||
|
#18
CALIPER SEAL KIT
3GM-W0047-10-00
Superseded by 3GM-25803-10-00
|
$50.99 | ||
|
Unavailable |
|||
|
#19
BRAKE PAD KIT
5JJ-W0045-00-00
Superseded by 5JJ-25805-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#20
SUPPORT, PAD
4SV-25919-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#21
PIN, PAD
4SV-25924-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#22
CLIP
3GM-25925-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#23
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-105A7-00
|
$7.49 | ||
|
Unavailable |
|||
