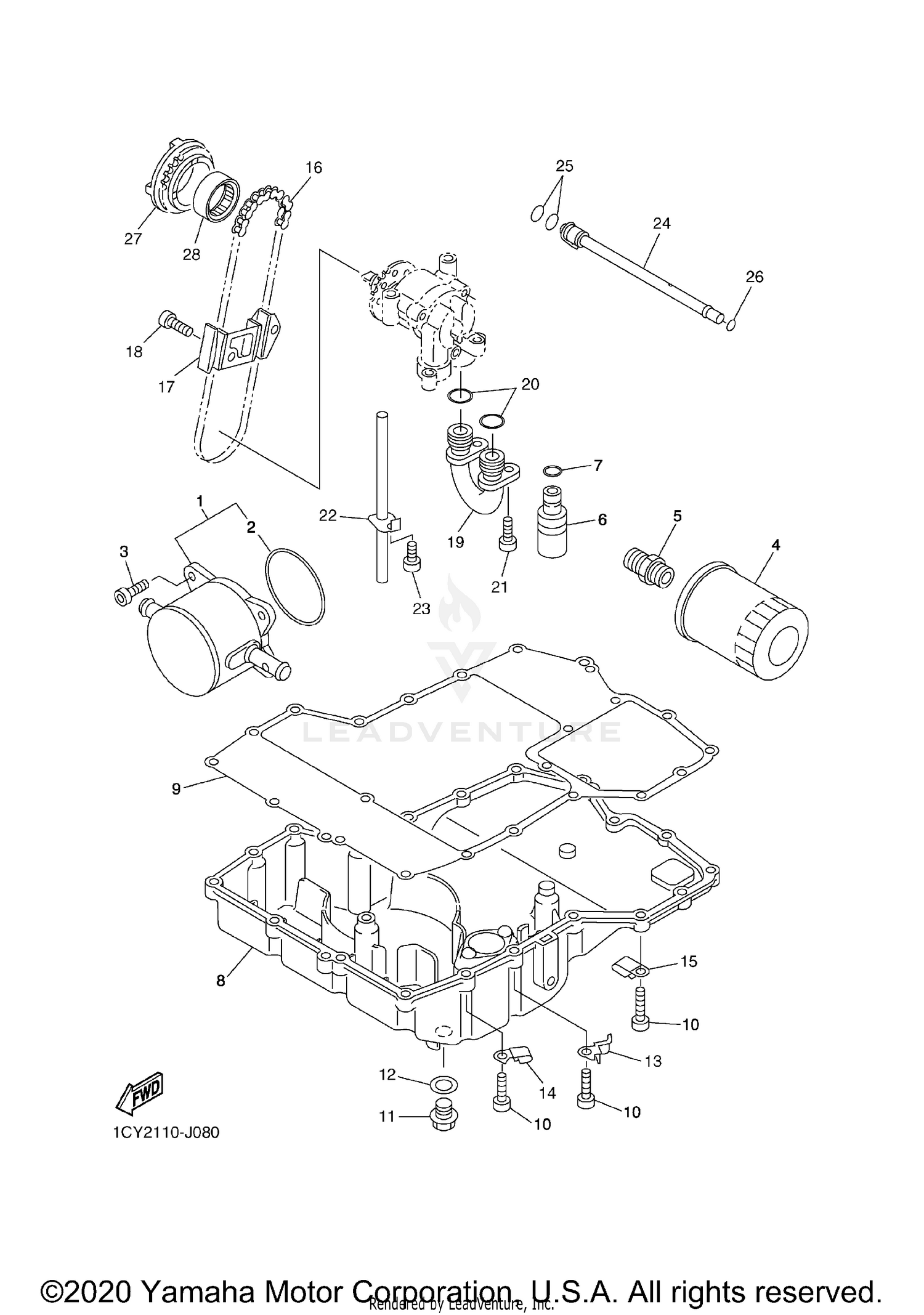

2010 Yamaha FJR 1300A OIL COOLER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASSY
5JW-13470-10-00
|
$441.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
5JW-13473-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, HEXAGON SOCKET HEAD
90110-06164-00
Superseded by 90110-06163-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT ASSY, OIL CLEANER
5JW-13440-00-00
Superseded by 5GH-13440-80-00
|
$14.99 | ||
|
Unavailable |
|||
|
#5
BOLT, UNION
90401-20145-00
Superseded by 90401-20007-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RELIEF VALVE ASSY
5PW-13490-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-15566-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, STRAINER
5JW-13417-00-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, STRAINER COVER
5JW-13414-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
214-11198-01-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-10041-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90465-08122-00
Superseded by 90465-08277-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90462-08039-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN
94581-85078-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER
5JW-13898-00-00
Superseded by 5JW-13898-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#18
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, OIL 1
2C0-13416-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-14003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, DELIVERY 1
5JW-13161-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#24
PIPE, DELIVERY 5
5JW-1316E-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-09165-00
Superseded by 93210-09350-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-06667-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET, DRIVE
5JW-13354-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93315-23607-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
