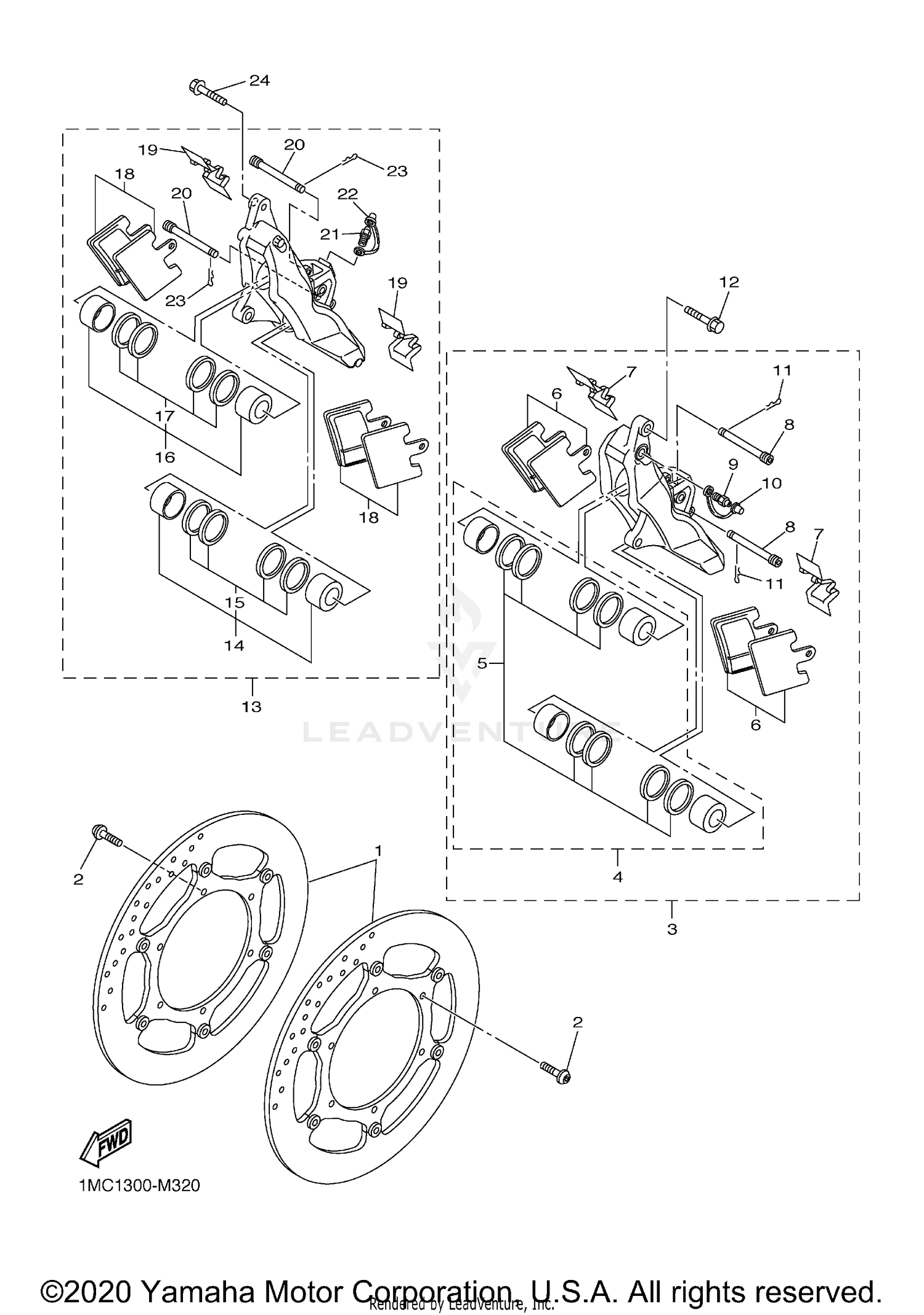

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
3P6-2581T-01-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-064G6-00
Superseded by 90109-06254-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
1MC-2580T-00-00
Superseded by 1MC-2580T-01-00
|
$393.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
3P6-W0057-00-00
Superseded by 3P6-25802-01-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3P6-W0047-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE PAD KIT
3P6-W0045-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUPPORT, PAD
3P6-25919-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, PAD
3P6-25924-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BLEED
8CR-25824-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER
3P6-25925-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WASHER BASED
90105-10638-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER ASSY (RIGHT)
1MC-2580U-00-00
|
$479.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON ASSY, CALIPER
3P6-W0057-10-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CALIPER SEAL KIT
3P6-W0047-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PISTON ASSY, CALIPER
3P6-W0057-20-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CALIPER SEAL KIT
3P6-W0047-20-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE PAD KIT
3P6-W0045-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#19
SUPPORT, PAD
3P6-25919-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#20
PIN, PAD
3P6-25924-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#21
SCREW, BLEED
8CR-25824-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#22
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#23
STOPPER
3P6-25925-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#24
BOLT, WASHER BASED
90105-10638-00
|
$5.99 | ||
|
Unavailable |
|||
