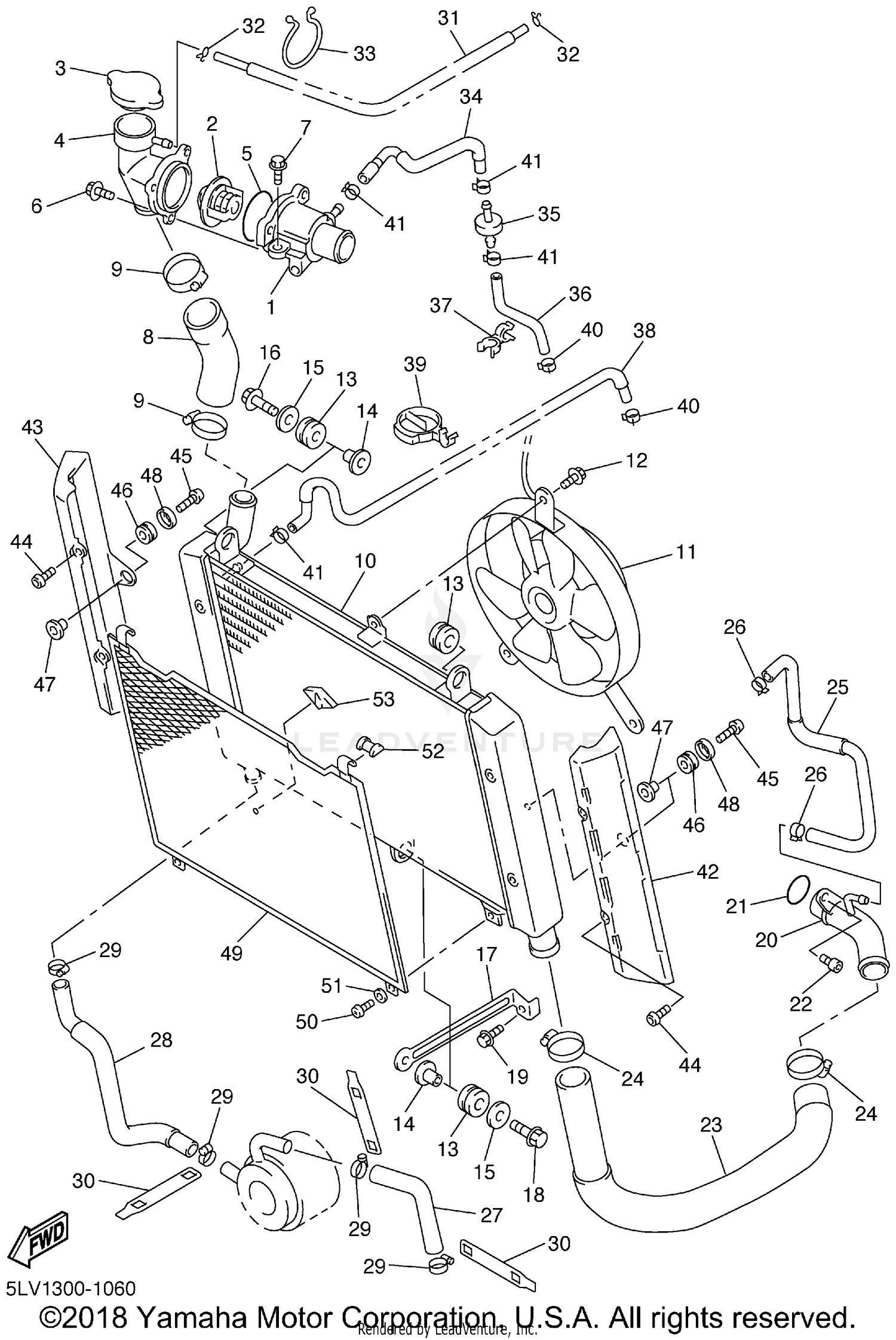

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, THERMOSTAT
5LV-12417-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSTAT
5LP-12411-00-00
Superseded by 5LP-12411-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#3
CAP, RADIATOR
22W-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUPT, FILLER NECK
1AE-12591-01-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95827-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE 8
5LV-12552-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RADIATOR ASSY
5LV-12461-00-00
|
$575.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLOWER ASSY
5LV-12405-00-00
|
$460.01 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95827-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY, RADIATOR
5LV-12464-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95827-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE 4
5LV-12484-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-23787-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90110-06226-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE 7
5LV-12551-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE CLAMP ASSY
90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
|
#25
HOSE 1
5LV-1243A-00-00
Superseded by 5LV-1243A-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE 5
5LV-12588-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE 6
5LV-12589-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP ASSY
90450-22017-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER 3
5LV-1246F-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE 1
5LV-12576-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, SCISSOR
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90464-44109-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE 2
5LV-1243E-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
STRAINER ASSY
5LV-12470-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE, 4
5LV-1244G-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-10186-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE,3
5LV-1243F-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-36001-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
90467-06194-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
RADIATOR COVER ASSY 1
5LV-1240J-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
RADIATOR COVER ASSY 2
5LV-1240K-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, BUTTON HEAD
92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, BUTTON HEAD
92014-06025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
GROMMET
90480-12596-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-067W9-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
WASHER
90209-06008-00
|
$2.10 | ||
|
Unavailable |
|||
|
#49
COVER, RADIATOR
5LV-12467-00-00
|
$100.24 | ||
|
Unavailable |
|||
|
#50
SCREW, PAN HEAD
98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#52
GASKET
1UF-12435-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#53
DAMPER, RADIATOR
5LV-12465-00-00
|
$6.49 | ||
|
Unavailable |
|||
