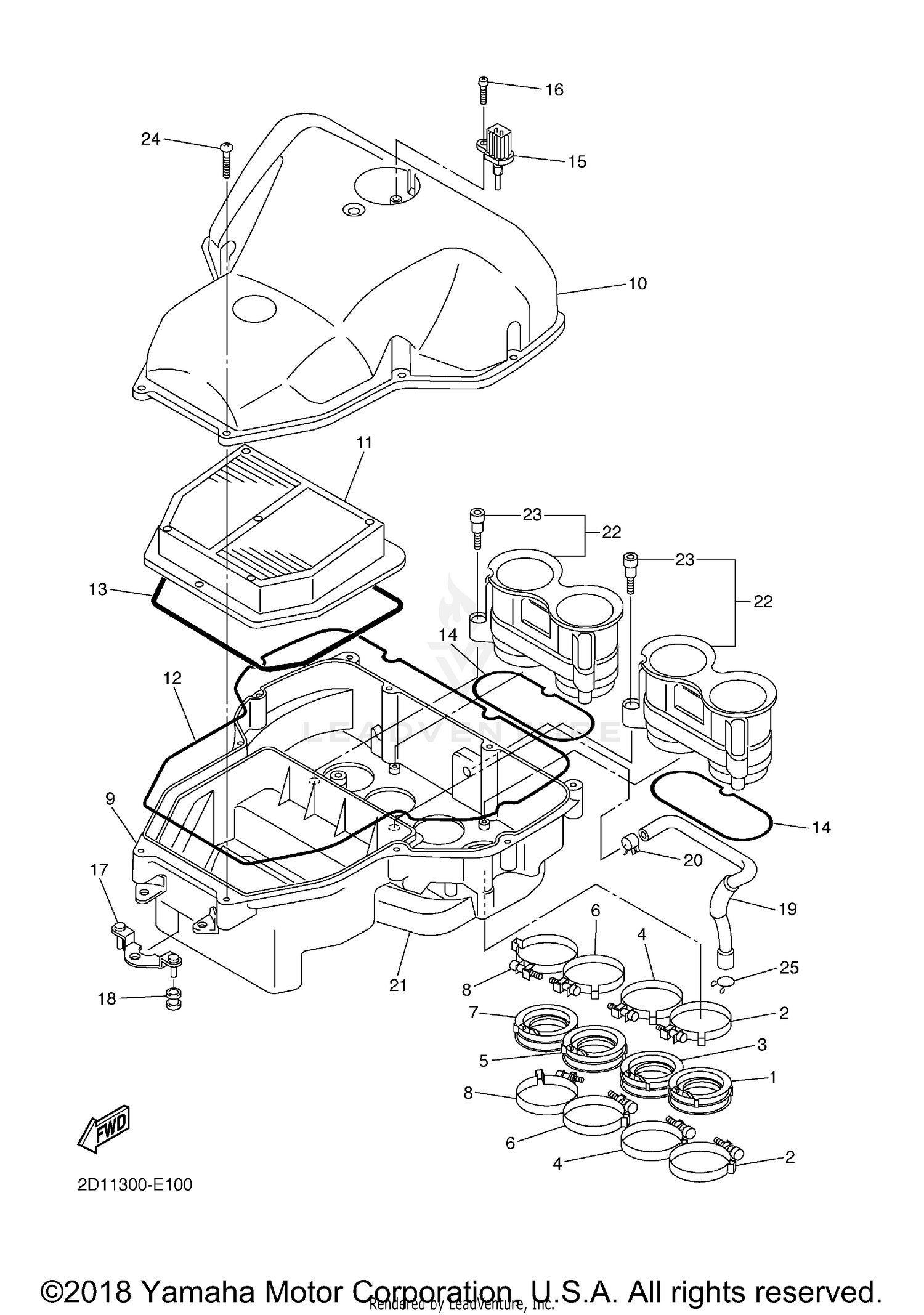

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT
5VY-13595-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-62002-00
Superseded by 90450-62004-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, CARBURETOR 2
5VY-13596-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-62002-00
Superseded by 90450-62004-00
|
$19.49 | ||
|
Unavailable |
|||
|
#5
JOINT, CARBURETOR 3
5VY-13597-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE CLAMP ASSY
90450-62002-00
Superseded by 90450-62004-00
|
$19.49 | ||
|
Unavailable |
|||
|
#7
JOINT, CARBURETOR 4
5VY-13598-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE CLAMP ASSY
90450-62002-00
Superseded by 90450-62004-00
|
$19.49 | ||
|
Unavailable |
|||
|
#9
CASE, AIR CLEANER 1
2D1-14411-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, AIR CLEANER 2
2D1-14421-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
ELEMENT, AIR CLEANER
2D1-14451-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
2D1-14452-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL
2D1-14462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
5VY-14457-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING
97702-50520-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
STAY 1
2D1-14498-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-08264-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, BREATHER 2
2D1-15393-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#20
CLIP
90467-14171-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
2D1-14409-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
JOINT ASSY
2D1-1440B-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-05005-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, TAPPING
97702-50025-00
Superseded by 97707-50025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
