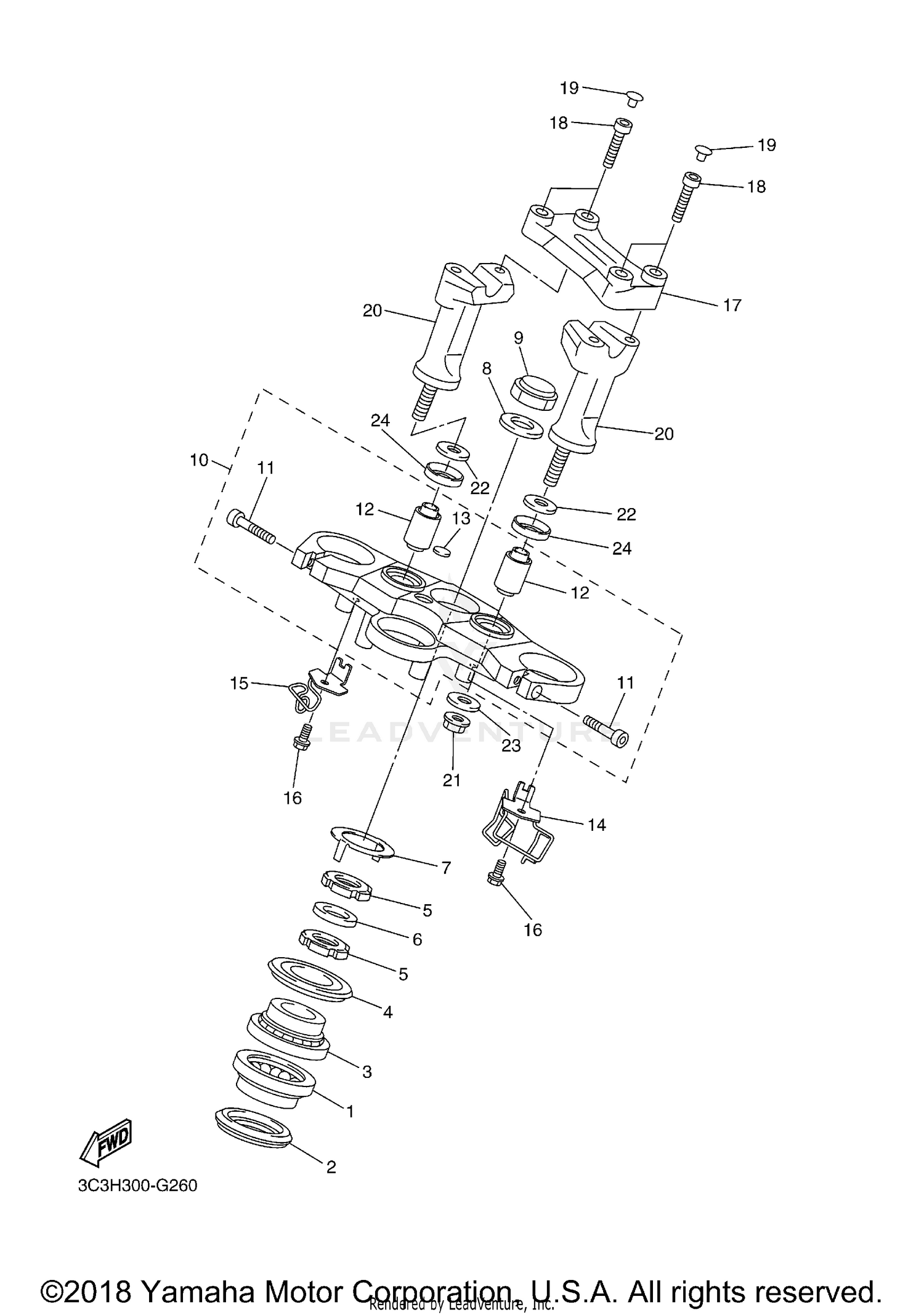

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93399-99957-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, STEERING
3FV-23462-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93399-99932-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, BALL RACE 1
4XV-23415-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-30691-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90202-30235-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
4XV-23418-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-281U8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, CROWN
90176-28083-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CROWN, HANDLE ASSY
2D1-23405-10-00
Superseded by 2D1-23405-11-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, DAMPER
3VD-23434-00-00
Superseded by 5A8-23434-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
EMBLEM
4XV-2341B-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, CABLE 1
3C3-23318-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CABLE 2
3C3-23319-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06050-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, HANDLE UPPER
2D1-23441-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX.S OCKET HEAD
91317-08030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG (CROME)
90338-08163-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, HANDLE LOWER
2D1-23442-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92907-10200-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-10141-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
5YU-23445-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
